Automatic Plaster Softening Point Instrument RT ～ 100℃ Heating Rate 1 ～ 1.5℃/Min ChP 2102

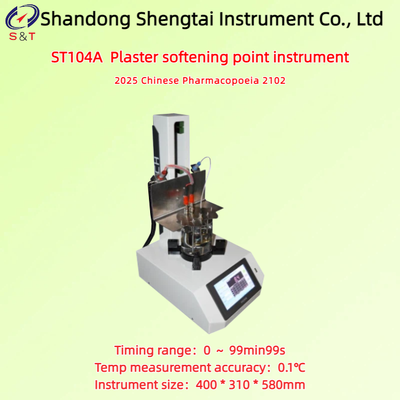

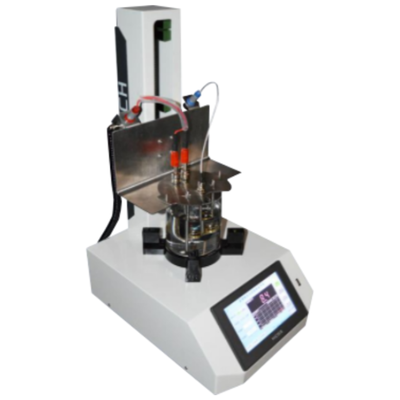

ST104A Plaster softening point instrument

Standard: ChP 2102

ST104A ointment softening point instrument is strictly designed and manufactured in accordance with the 2025 Chinese Pharmacopoeia 2102 ointment softening point determination method. This method is used to measure the temperature of the ointment when it is heated and softened under specified conditions, that is, to measure the temperature when the ointment drops by 25mm due to heating according to the following method. Used to detect the tenderness of plaster and indirectly reflect its viscosity.

The principle of measuring the softening point of plaster is to place the plaster sample in a sample ring, place a steel ball in the center of the surface of the plaster sample, and place the sample ring with the plaster in a water bath using a bracket. As the temperature of the water bath increases, the plaster softens and the steel ball sinks. When the steel ball carrying the plaster sample contacts the lower bottom plate, the temperature recorded at this moment is the softening point temperature of the plaster.

Main features:

● The temperature is controlled by instruments and there is no human error.

● High precision temperature probe, sensitive to temperature response.

● Strong magnetic stirring device for more uniform test temperature

● LCD display screen, which can display temperature in real time.

● It can measure high temperature, and the medium is water or glycerol. (For temperatures below 90°C, water is recommended; for temperatures above 90°C, glycerol is recommended.)

Main technical indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
