180° Electronic Peel Testing Machine For Ointment Patches 100N Or 500N Speed 1 ～ 500mm/Min ChP 0952

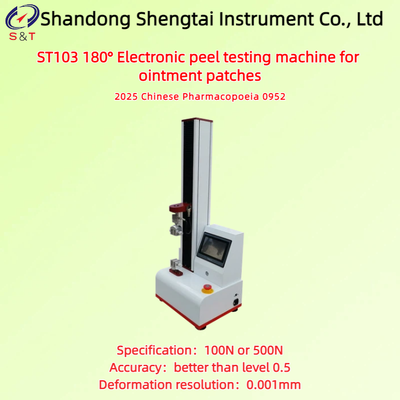

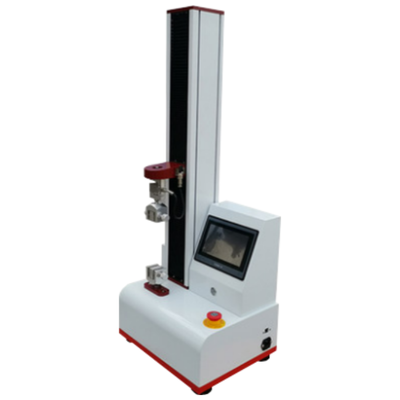

ST103 180° Electronic peel testing machine for ointment patches

ST103 ointment 180° electronic peel test machine is designed strictly in accordance with the requirements of the new 2025 Chinese Pharmacopoeia "0952 Adhesion Force Determination Method". It adopts modern mechanical design concepts and ergonomic design principles, and uses advanced microcomputer processing technology for careful and reasonable design. It is a new generation of testing machine with novel design, convenient use, excellent performance, and beautiful appearance.

Principle:

The sample is clamped between the two clamps of the fixture, and the two clamps move relative to each other. The force and displacement changes during the test process are collected through the force sensor located on the moving clamp and the built-in displacement sensor of the machine, and the 180 degree peel strength of the sample is calculated.

Product features

● The instrument adopts high-precision ball screw, which drives smoothly and accurately; Adopting imported servo motors, with low noise and precise control.

● Large screen touch screen display and Chinese menu. Real time display of force time, force deformation, force displacement, etc. during the experiment; The instrument has strong data display, analysis, and management capabilities.

● Adopting a 24 bit high-precision AD converter (resolution up to 1/10000000) and high-precision weighing sensors, ensuring the fast and accurate collection of instrument force data.

● Adopting a modular all-in-one printer, it is easy to install and has low malfunctions; Thermal printer.

● Direct measurement results: After completing a set of experiments, it is convenient to directly display the measurement results and print statistical reports, including mean, standard deviation, and coefficient of variation.

● High degree of automation: The instrument design adopts advanced domestic and foreign devices, with microcomputers for information sensing, data processing, and action control. It has the characteristics of automatic reset, data memory, overload protection, and fault self diagnosis.

Product parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument,they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
