Medicine Bottle Package Seal Integrity Analyzer 0 ～ -90kPa Level 1 Accuracy ASTM D3078

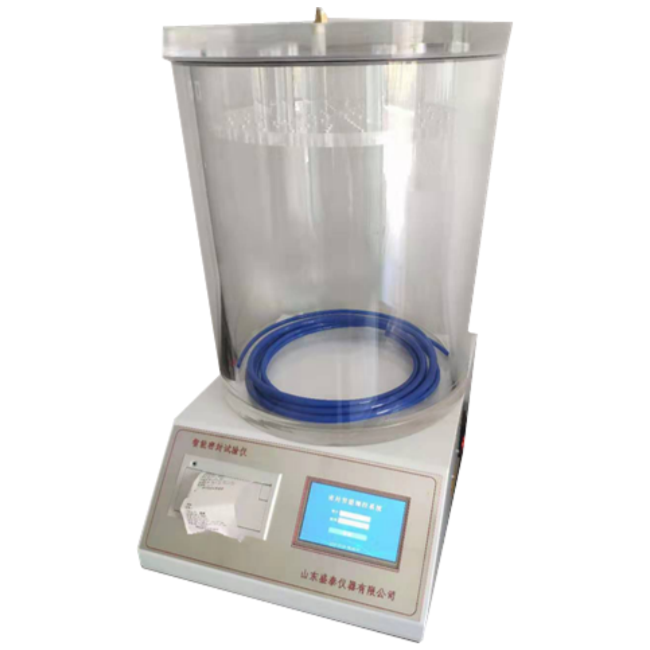

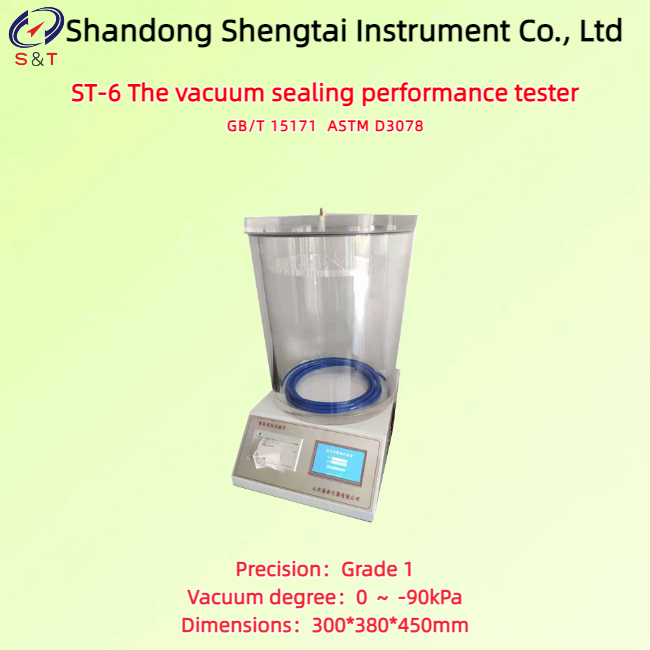

ST-6 The vacuum sealing performance tester

Standard: GB/T 15171 ASTM D3078

ST-6 The vacuum sealing performance tester is suitable for sealing test of products, through which the sealing process and sealing performance of flexible packaging can be compared and evaluated effectively. It is an ideal testing instrument for food, plastic soft packaging, wet wipes, pharmaceutical, daily chemical and other industries.

Package Seal Integrity Testing / Package Leak Testers

ASTM D 3078 Blister Vial Packages Vacuum Sealing Performance Tester

Vacuum Sealing Performance Tester with Bubble Emission Method

China Vacuum Automated Filter Packaging Air Leakage Sealing Performance Tester

Product application

Flexible packaging bag, rigid packaging bottle, medicine bottle, metal can, blister packaging, composite packaging

Performance characteristics

● Equipped with a built-in air supply unit, no external air source is required—just plug in and use

● The system employs microcomputer control for fully automated operations including vacuuming, pressure holding, pressure replenishment, timing, reverse blowing, and printing

● The device is equipped with an LCD display and a built-in mini printer, supporting data presetting and power-off memory, ensuring the accuracy of test data

● Supports Chinese or English systems

● Print and output test data to meet diverse customer requirements.

● Features include Level 3 permission functions and historical data query capabilities

Test Principle

By evacuating the vacuum chamber, an internal and external pressure difference is created in the water-immersed sample to observe gas leakage, thereby determining the sample's sealing performance. By evacuating the vacuum chamber, an internal and external pressure difference is generated in the sample to observe its expansion and the restoration of its shape after vacuum release, thereby assessing the sample's sealing performance.

Application areas

Basic Applications:

● Used for the overall sealing test of glass bottles, tubes, cans, and boxes

● Used for the overall sealing test of plastic bottles, tubes, cans, and boxes

● Used for the overall sealing test of metal material bottles, tubes, cans, and boxes

● Used for sealing tests of paper-plastic composite bags and box materials

Extended Applications:

● For pen refill sealing tests

● Used for the sealing test of electronic components

● Applicable to the sealing test of medical devices

Technical indicators

Note: The appearance images and dimensions (volume and weight) of the instrument are for reference only. Updates to the instrument may result in minor changes, and no further notice will be provided.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
