Grease Evaporation Degree Determination Instrument RT ～ 400℃ Electric Heating Wire Heating SH/T0337

  • Grease Evaporation Degree Determination Instrument RT ～ 400℃ Electric Heating Wire Heating SH/T0337
  • Grease Evaporation Degree Determination Instrument RT ～ 400℃ Electric Heating Wire Heating SH/T0337
Place of Origin CHINA
Brand Name Shandong Shengtai Instruments Co., Ltd
Certification SH/T0337
Model Number SY0337
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Constant Temperature Mode Digital PID Temp Controller Operating Temp RT ～ 400℃
Temp Control Accuracy ±0.5℃ Heating Method Electric Heating Wire
Environment Temp 0～45°C Working Power Supply 220V±10% 50HZ
Highlight

Grease evaporation degree instrument electric heating

,

Chemical analysis instrument RT to 400℃

,

SH/T0337 grease determination instrument
Leave a Message
Product Description

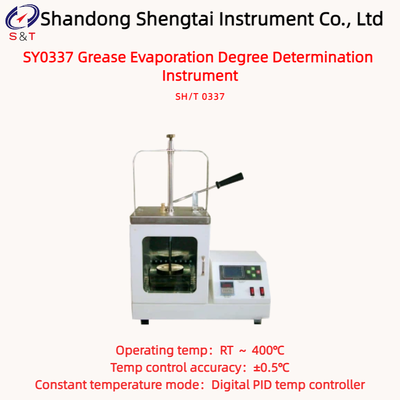

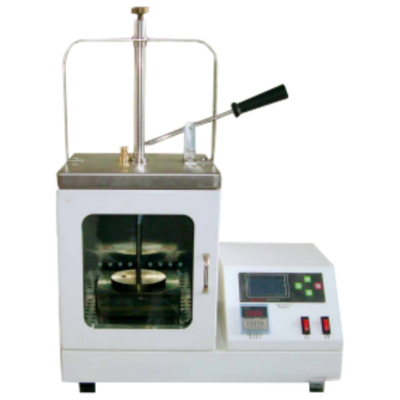

SY0337 Grease Evaporation Degree Determination Instrument

SY0337 Grease Evaporation Degree Tester is designed and manufactured in accordance with the SH/T0337 standard, suitable for measuring the evaporation degree of grease. A dish filled with 1mm-thick grease is placed in a specialized constant-temperature bath and maintained at a specified temperature for 1 hour (or the time specified by the grease product standard), after which the lost mass is measured.

The temperature measurement and control of the instrument are both achieved using a digital PID temperature controller, featuring automatic temperature regulation with high accuracy, intuitive digital display, and the ability to adjust at any point within the effective heating temperature range.

Technical Specifications:

Applicable Standard SH/T0337
Constant temperature mode Digital PID temp controller
Operating temp RT ～ 400℃
Temp control accuracy ±0.5℃
Heating method Electric heating wire
Timing method Digital display timing, set according to the experiment duration, with an alarm prompt when the set time is reached
Environment Temp 0～45°C
Working power supply 220V±10% 50HZ
Total machine power 1kW

Grease Evaporation Degree Determination Instrument RT ～ 400℃ Electric Heating Wire Heating SH/T0337

Note: The appearance images and dimensions of the instrument are for reference only. Updates to the instrument may result in minor changes, and no further notice will be provided.



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Grease Evaporation Degree Determination Instrument RT ～ 400℃ Electric Heating Wire Heating SH/T0337
