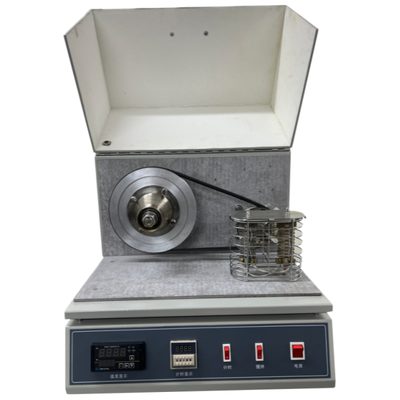

ASTM D1263 Leakage Tendency Tester Of Motor Vehicle Wheel Bearing Grease Speed 660rpm ± 30rpm

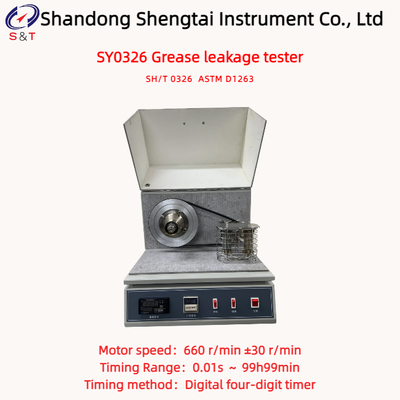

SY0326 Grease leakage tester

ASTM D1263 Leakage Tendency Tester of Motor Vehicle Wheel Bearing Grease

Grease Testing Equipment ASTM D1263 Grease Leakage Tendencies Tester

SY0326 grease leakage measurement instrument is strictly designed and manufactured in accordance with the SH/T0326 standard.

Lubricant Leakage Measurement: This instrument involves placing the test sample into a modified front wheel hub and axle assembly, allowing the hub and axle to operate together under specified conditions for 360±5 minutes. The leakage of grease or oil is measured, and the bearing surface condition is observed at the end of the test. This instrument is suitable for measuring the leakage of automotive wheel bearing grease and can be used to distinguish products with significantly different leakage characteristics.

Performance characteristics

● The instrument adopts integrated design, meaningful appearance, easy to operate;

● Unique heat pipe rod insert casting body box-type heating system makes the heating speed is fast and the temperature control accuracy is high;

● Imported motor rotation, low noise, stable speed, good mechanical properties and small wear;

● The hub and shaft assembly structure is compact, small end clearance, bearings are imported parts, reliability and wear resistance is guaranteed;

● Microcomputer temperature controller, digital display, precision ±0.5℃, PT100 sensor;

● Digital display timer, record the test time;

● There is a thermometer hole on the shaft assembly;

● Standard motor 660r/min±30r/min;

● Two groups of heating power combined 660W;

● The body is surrounded by thermal insulation cotton.

Technical Parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
