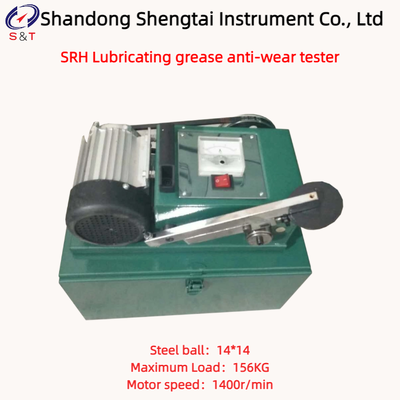

SRH Lubricating Grease Anti-Wear Analyzer Steel Ball 14*14 Motor Speed 1400r/Min Timken Tester

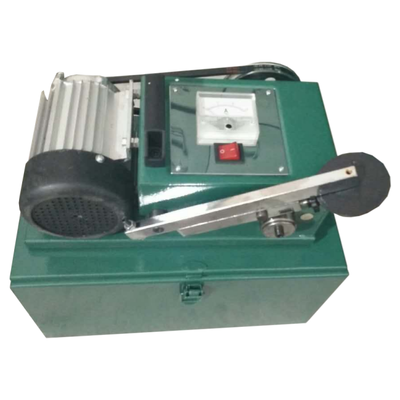

SRH Lubricating grease anti-wear tester

SRH lubricating oil anti-wear testing machine is specially customized for lubricating oil and its additives enterprises. It is based on the testing principle of the American ring block testing machine (Timken testing machine) and simplifies the design of the main functions, striving for simple operation, reliable performance, and quick and intuitive reflection of the anti-wear and friction reduction performance of lubricating oil. This lubricating oil anti-wear testing machine adopts an integrated design to effectively reduce vibration and noise during operation. Its main working components consist of a friction ring that rotates with the spindle and a fixed friction column pressed on the friction ring. During the test, sliding friction occurs between the friction ring and the friction column under different pressure conditions.

SRH lubricating oil anti-wear testing machine applies pressure to the friction pair through a force system composed of weights and levers, generating extremely high contact pressure. During the rotation of the friction ring, it accelerates the wear of the friction column (experimental steel ball) to observe and evaluate the load-bearing capacity of the lubricant. Under these specific lubrication conditions, a 1-minute simulated test is equivalent to the wear of a typical mechanical component over one year of normal operation. The lubricant exhibits minimal wear under the same load, with either no reduction or only a slight decrease in spindle speed. Due to its ability to quickly and concisely reflect the anti-wear and friction-reducing performance of lubricants, this testing machine is frequently used in the production, research, and promotion of lubricants or anti-wear agents with superior anti-wear properties.

Before using this lubricant wear resistance tester, ensure the domestic mains voltage is AC 220 volts, preferably within ±5%. The electrical system must be properly grounded, and operators should possess basic knowledge of machinery and electrical safety.

The calculation method for frictional force values with wear-resistant agents added:

For example, after adding 8 weights, the motor seized. Observe the wear marks, and the final calculation can be as follows:

Force value = 13.1 kg × (8 × 0.5 kg) × 9.8 N = 513.52 N

Parameters of Lubricant Wear Resistance Testing Machine:

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no further notice will be provided

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
