ASTM D86 Automatic Diesel Distillation Apparatus Boiling Range RT ～ 400℃ Compressor Refrigeration

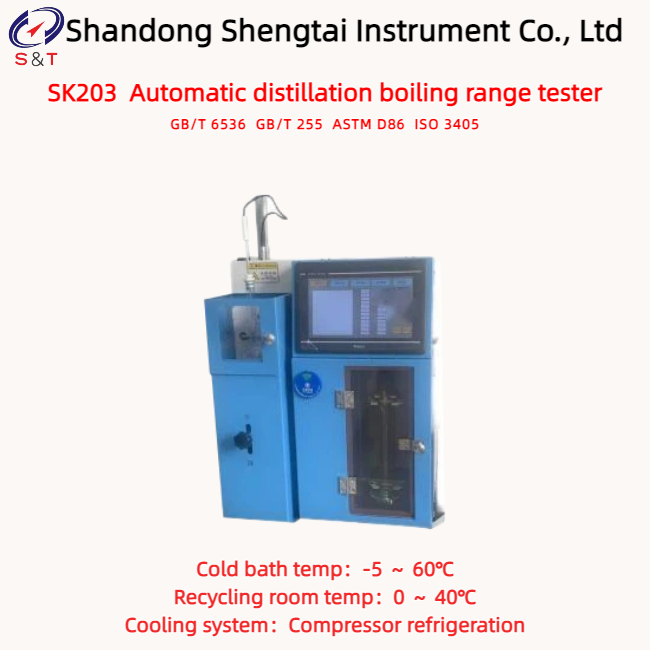

SK203 Automatic distillation boiling range tester

Automatic Diesel Distillation Apparatus Boiling Range Tester

Automatic Distillation Range Testing Device/Boiling Point Range Analyzer

ASTM D86 Automatic Distillation range Tester

Automatic Distillation Boiling Range Tester

Automatic Fuel Oil Solvent Oil Boiling Range Tester

ASTM D86 Automatic Diesel Distillation Apparatus Boiling Range

Standard: GB/T 6536 GB/T 255 ASTM D86 ISO 3405

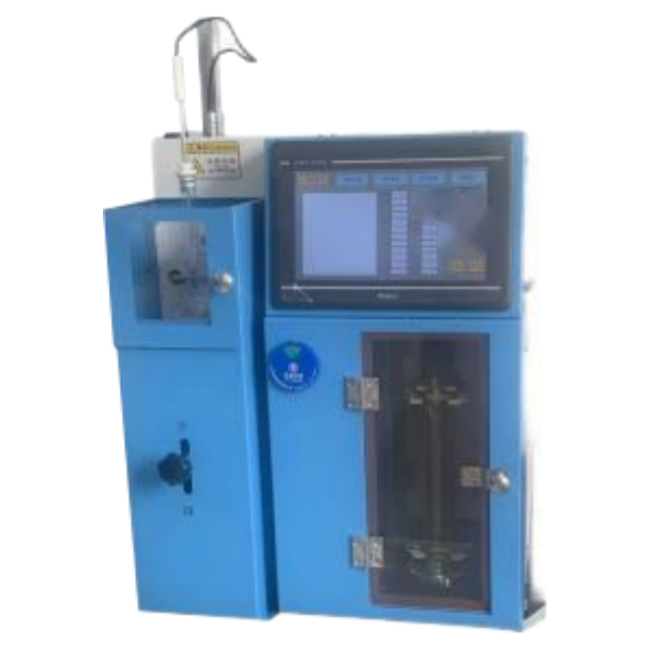

SK203 Fully Automatic Distillation Range Determinator features a color LCD display screen, Chinese menu-based human-machine interface, guided operation, and fully automated measurement process. It complies with the national standard GB/T 6536 "Distillation Method for Petroleum Products" and ASTM D86

The system employs an embedded computer with a large-screen LCD touch panel, featuring a user-friendly human-machine interface for convenient test operation. Utilizing microcontroller and intelligent control technology, it automatically performs heating and cooling during distillation, distillate liquid level tracking, distillation rate control, recovered liquid volume regulation, temperature recording, and test result printing throughout the entire distillation process.

Features

● The instrument is automatically controlled and monitored by an industrial computer throughout the testing process, utilizing an embedded computer with full-touch LCD display for testing

● Large LCD touchscreen with a user-friendly interface, making operation convenient for testing.

● Utilizing microcontroller and intelligent control technology, it displays temperature and volume data along with relevant curves throughout the entire process.

● The temperature of the cold tube and the temperature of the measuring cylinder room are both cooled by mechanical refrigeration using a compressor. The cooling medium circulates internally. The coolant only needs to be inspected and replenished every three years.

● The entire distillation process, including heating and cooling, distillate level tracking, distillation rate control, recovered liquid volume control, temperature recording, and test result printing, is fully automated.

● The distillation electric furnace is heated with automatic control, ensuring the sample's flow rate from the initial boiling point to 95% remains within 4-5 ml per minute.

● Initial and final distillation temperatures can be provided, along with temperature and flow rate values at each percentage point.

● Automatically detects local atmospheric pressure and corrects the temperature to standard atmospheric pressure.

● The test can be stopped by selecting either steam temperature or recovery volume.

● The instrument can store, query, and print test results.

Technical Parameters

● The initial boiling point temperature is detected by an optical fiber sensor

● This instrument can automatically detect and display the temperature and flow rate time at every 5% volume point.

● The instrument can automatically detect the temperature and occurrence time of the initial boiling point and final boiling point.

● USB data export function

● The equipment has the function of automatically detecting local atmospheric pressure and automatically correcting to the temperature at standard atmospheric pressure

● Equipped with a fire extinguishing system, manual nitrogen extinguishing can be used in case of a fire to prevent safety accidents caused by the rupture of the heating distillation flask (nitrogen cylinders need to be provided by the customer)

● Equipped with a safety temperature setting function, the room temperature can be freely set between 400℃. If the heating temperature exceeds the set safety temperature, the instrument can automatically stop the experiment and immediately blow air to dissipate heat.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
