2 Holes Full-Auto Rotating Oxygen Bomb Calorimeter 100±5 R/Min Metal Bath ASTM D2272

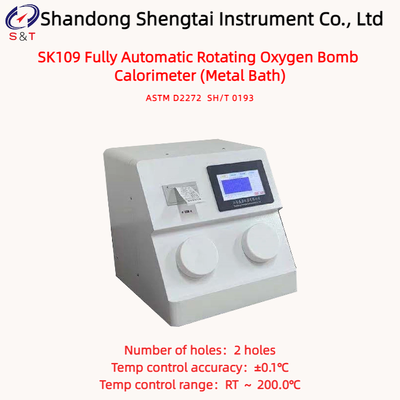

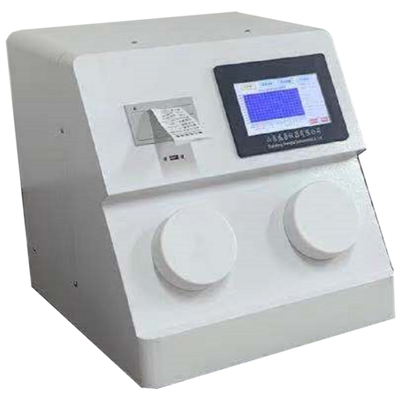

SK109 Fully Automatic Rotating Oxygen Bomb Calorimeter Metal Bath

Standard: ASTM D2272 SH/T 0193

SK109 Fully Automatic Rotating Oxygen Bomb Calorimeter is designed and manufactured in accordance with Method B of the National Standard ASTM D2272-2009 "Test Method for Oxidation Stability of Lubricating Oils" (Metal Bath Standard), while also complying with SH/T 0193-2023. It is suitable for evaluating the oxidation stability of new and in-service turbine oils with identical compositions (base oil and additives). It can also be used to assess new mineral insulating oils containing 2,6-di-tert-butyl-p-cresol as a rapid method for determining their oxidation stability. The test results are employed to verify the performance of new mineral insulating oils containing 2,6-di-tert-butyl-p-cresol, 2,6-di-tert-butylphenol, or both, enabling continuous quality control for each batch of oil.

Performance Characteristics

● Used for new oil, in-service oil, steam turbine oil, lubricating oil, insulating oil, and automotive gasoline engine oil, etc.

● The metal measurement tank reduces the unpleasant odor emitted by the medium oil during testing and eliminates potential hazards that may arise from prolonged experimental periods.

● It can automatically perform pressure testing, data recording, oxidation time calculation, and terminate the test automatically for the oil sample being tested.

● The metal bath is heated without the need for liquid medium.

● Ventilation is simple, requiring no placement in a fume hood. Exhaust gases and odors can be easily discharged through plastic pipes.

● Up to 2 sets of tests can be controlled simultaneously

● Sample temperature sensor assembly: Measures the temperature of the sample during the testing process

● Instrument Display: 7-inch color touchscreen, aesthetically pleasing interface, simple operation

● High automation level: automatic temperature control, automatic oxygen supply, automatic leak detection, automatic recording of test data with real-time curve display, automatic determination of test inflection points, and automatic heating shutdown upon test completion.

● Mini Printer: Panel-type thermal.

Technical Specifications:

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. There may be minor changes if the instrument is updated, and no separate notice will be provided.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing List
