12 Holes Brake Fluid Low-Temp Flowability Analyzer RT ~ -60℃ Metal Bath Test Tube 125ml ISO 4925

Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification GB/T 12981 ISO 4925
Model Number SH12981B
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Cold Bath Temp Control RT ~ -60℃ Refrigeration Medium Metal Bath
Cold Bath Port Count 12 Ports Display Accuracy ±1℃
Refrigeration System Cascade Compressor Operating Power Supply AC220V ±10% 50Hz
Highlight

12 holes brake fluid analyzer

,

low-temp flowability analyzer

,

metal bath test tube analyzer

Leave a Message
Product Description

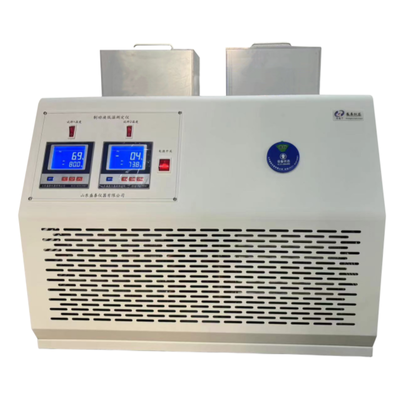

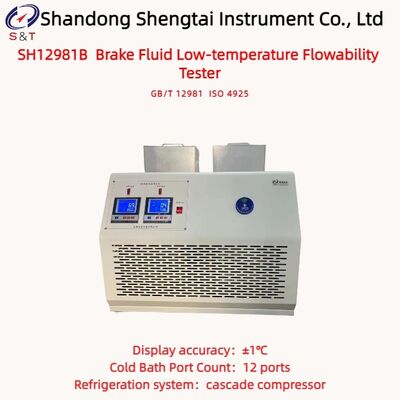

SH12981B Brake Fluid Low-temperature Flowability Tester

Standard: GB/T 12981 ISO 4925

SH12981B Brake Fluid Low-temperature Flowability Tester is designed and manufactured strictly in accordance with the Appendix G standard in GB 12981, and fully complies with the determination of low-temperature flowability, water solubility, and compatibility of brake fluid.

Performance Characteristics

● The instrument employs a compressor for cooling, featuring rapid cooling speed and long service life.

● The display adopts a small LCD screen with excellent temperature control stability.

● Equipped with low-temperature flowability test tubes for conducting low-temperature flowability experiments, and with centrifuge tubes for performing solubility and compatibility low-temperature tests.

Technical Parameters

Cold bath temp control RT ~ -60℃
Refrigeration medium metal bath
Cold Bath Port Count 12 ports
Display accuracy ±1℃
Refrigeration system cascade compressor
Test tube volume 125ml
Ambient temperature ≤30℃
Relative humidity ≤85%
Instrument dimensions 670*515*520 mm
Instrument weight 72kg
Packaging dimensions 760*560*610 mm
Packaging weight 85kg wooden case
Operating Power Supply AC220V ±10% 50Hz

12 Holes Brake Fluid Low-Temp Flowability Analyzer RT ~ -60℃ Metal Bath Test Tube 125ml ISO 4925

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. If the instrument is updated, there may be slight changes, and no further notice will be provided.



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.



Package list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Glass tube 10 Piece
3 Power cable 1 Piece
4 Fuse tube 1 Piece Built-in
5 Instruction manual 1 Copy
6 Packing list 1 Copy
7 Certificate warranty card 1 Copy
