4 Channels Insulation Oil Oxidation Stability Analyzer RT ～ 200℃ RTD Temp Measurement ASTM D2272
Product Details
| Applicable Standard | GB/T 12580 ASTM D2272 IEC 60474 IEC61125 AMD1-2004 | Temp Control Method | Automatic Temp Control With Digital Temp Meter |
|---|---|---|---|
| Temp Control Range | RT ～ 200℃ | Temp Control Accuracy | Set Temp ± 0.2℃ |
| Temperature Measuring Element | Thermistor | Sample Quantity | 4 Channels, And 4 Samples Can Be Made At The Same Time |
| Highlight | 4 channels insulation oil analyzer,oxidation stability tester ASTM D2272,RTD temperature measurement analyzer |
||
Product Description

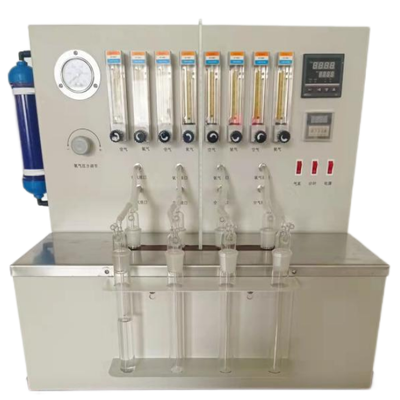

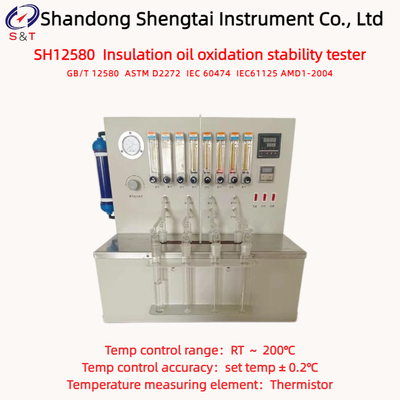

SH12580 Insulation oil oxidation stability tester
Standard: GB/T 12580 ASTM D2272 IEC 60474 IEC61125 AMD1-2004
SH12580 insulation oil oxidation stability tester is designed and manufactured in accordance with the requirements specified in the standard NB/SH/T 081-2010 "Determination of oxidation stability of unused hydrocarbon insulation oils" and GB/T12580 "Determination of oxidation stability of mineral insulation oils with inhibitors". It also complies with IEC 474-1974 "Determination of oxidation stability of mineral insulation oils with inhibitors" IEC61125 AMD1-2004
Main technical features
● This instrument is a desktop structure, and the test tubes are designed and manufactured according to NB/SH/T 0811 and GB/T 12580 standards
● The heating device adopts a metal bath heating method, with no odor.
● Equipped with 4 oxygen flow meters, the specifications meet the requirements of GB/T12580 standard.
● Simultaneously equipped with 4 air flow meters, the specifications meet the requirements of NB/SH/T0811 standard.
● Equipped with a digital timer, used to set and record the time of the experiment.
● Equipped with a dedicated flow meter conversion device, it can convert flow modes
● Can be used in conjunction with air pumps and purification devices
Main technical parameters and indicators
| Applicable standard | GB/T 12580 ASTM D2272 IEC 60474 IEC61125 AMD1-2004 |
| Temp control method | Automatic temp control with digital temp meter |
| Temp control range | RT ～ 200℃ |
| Temp control accuracy | set temp ± 0.2℃ |
| Temperature measuring element | Thermistor |
| Sample quantity | 4 channels, and 4 samples can be made at the same time |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| No. | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Set | |
| 2 | Oxidation and absorption tubes GB/T 12580 | 4 | Set | |
| 3 | Flexible hose (inner diameter φ 6) | 1 | Root | |
| 4 | Instructions | 1 | Copy | |
| 5 | Certificate of Conformity | 1 | Copy |
