Brookfield Rotational Viscometer analyzer 1 ～ 6mill. CP Hydraulic Transmission Oil ASTM D2983

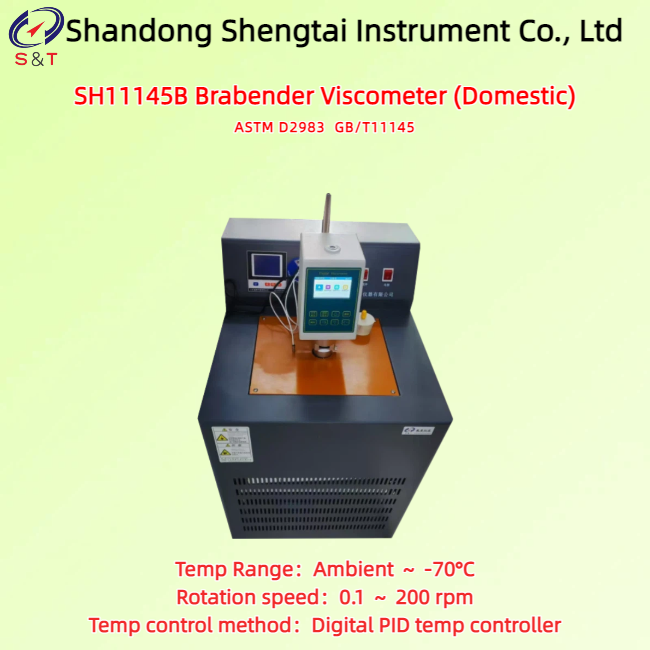

SH11145B Brabender Viscometer Domestic

Standard: GB/T 11145 ASTM D2983

Brookfield Rotational Viscometer test 1 ～ 6 million cP hydraulic transmission oil ASTM D2983

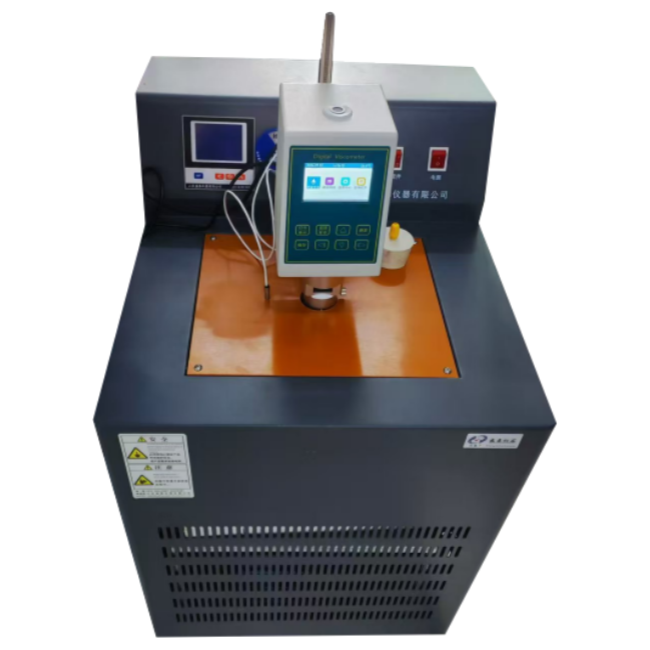

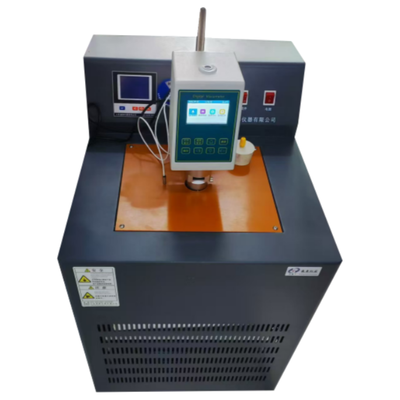

SH11145B lubricant low-temperature Brookfield viscosity tester is strictly designed and manufactured in accordance with GB/T 11145-2014 "Determination of Low-Temperature Viscosity of Lubricants by Brookfield Viscometer Method." It is suitable for testing automotive fluid lubricants, such as gear oil, hydraulic transmission oil, and industrial and automotive hydraulic oil, with a viscosity range of 1 to 6,000,000 mPa·s. The method for determining the shear rate viscosity of automotive fluid lubricants involves placing the sample in a cold bath at the test temperature, connecting the Brookfield viscometer and spindle, selecting the appropriate rotational speed, and measuring the low-temperature Brookfield viscosity after maintaining a constant temperature for 2 to 16 hours.

Main Technical Specifications, Parameters, and Performance Features:

● Screen display: The LCD screen can show viscosity, shear rate, shear stress, rotational speed, temperature, percentage torque, rotor number, and the maximum measurable viscosity value for the selected rotor at the current rotational speed

● Timer function: The touchscreen displays the timer function

● Data interface: Equipped with an RS232 printing interface, it can be directly connected to a computer's printing port

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no further notice will be provided.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
