Fully Automatic Solid Spontaneous Combustion Point Instrument 0～800℃ Test Object Solid ISO 3165

  • Fully Automatic Solid Spontaneous Combustion Point Instrument 0～800℃ Test Object Solid ISO 3165
  • Fully Automatic Solid Spontaneous Combustion Point Instrument 0～800℃ Test Object Solid ISO 3165
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification GB/T 21756 NF T20-036 NY/T 1860.24 ISO 3165
Model Number SH706C
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Temp Measurement Range 0～800℃ Temp Measurement Resolution 0.1℃
Test Object Solid Temp Control Accuracy ±1°C Below 350°C; ±2°C Above 350°C
Heating Rate 0.5°C/min Mesh Dimensions Side Length 20mm, Aperture 0.045mm
Highlight

Fully automatic solid combustion point instrument

,

Solid spontaneous combustion tester 0-800℃

,

ISO 3165 solid combustion analyzer
Leave a Message
Product Description

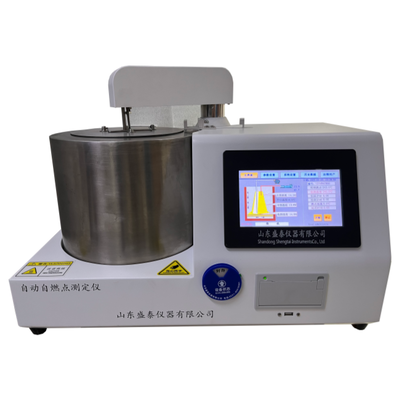

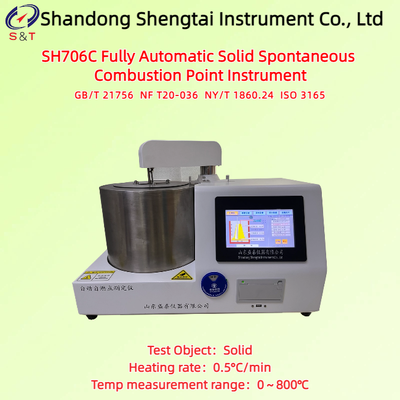

SH706C Fully Automatic Solid Spontaneous Combustion Point Instrument

Standards: GB/T 21756 NF T20-036 NY/T 1860.24 ISO 3165

SH706C Fully Automatic Solid Self-Ignition Point Tester employs advanced microcomputer technology and a touch-screen color display, utilizing sophisticated temperature control methods to automatically determine the self-ignition point.

Meet the standard

● GB/T 21756-2008 "Chemical Products for Industrial Use - Determination of the Relative Self-ignition Temperature of Solid Substances";

● French National Standard NF T20-036-1985 "Chemical Products for Industrial Use - Determination of the Relative Temperature of Spontaneous Combustion of Solids";

● NY/T 1860.24-2016 "Guidelines for Testing the Physical and Chemical Properties of Pesticides - Part 24: Relative Self-Ignition Temperature of Solids"

Performance Characteristics

● The entire testing process is fully automated, requiring no manual intervention, and supports functions such as parameter setting, data storage, and report viewing

● Automatic heating control, temperature control, combustion detection

● Display real-time temperature-time curves and view raw data

● The test results can also be exported to a computer via a USB drive for comparative analysis of the overall data.

Technical parameters

Temp measurement range 0～800℃
Temp measurement resolution 0.1℃
Test Object Solid
Temp control accuracy ±1°C below 350°C; ±2°C above 350°C
Heating rate 0.5°C/min
Mesh dimensions side length 20mm, aperture 0.045mm;
Platinum resistance accuracy class Class A precision

Fully Automatic Solid Spontaneous Combustion Point Instrument 0～800℃ Test Object Solid ISO 3165 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be sight changes without prior notice.



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Fully Automatic Solid Spontaneous Combustion Point Instrument 0～800℃ Test Object Solid ISO 3165 1
