2 Units Residual Fuel Oil Total Sediment Analyzer Sample 25g Test Range 0.5% (M/M) ASTM D4870

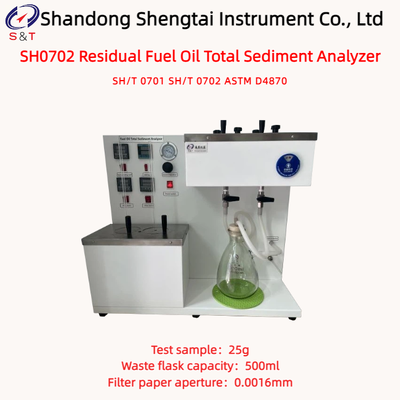

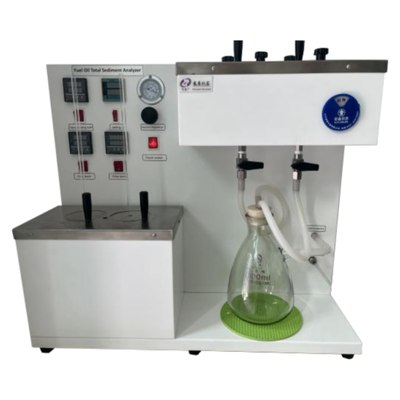

SH0702 Residual Fuel Oil Total Sediment Analyzer

2 units Residual Fuel Oil Total Sediment Analyzer sample 25g Test range 0.5% (m/m) ASTM D4870

SH0702 Residual Fuel Oil Total Sediment Analyzer is designed and manufactured in accordance with the standards of SH/T 0701 and SH/T0 702 Residual Fuel Oil Total Sediment Determination Method (Aging Method, Heat Filtration Method), as well as ASTM D4870. This method is suitable for determining the total sediment in residual fuel oil with a viscosity of less than 55mm²/s at 100℃ and distillate fuel oil containing residual components.

This instrument is suitable for the total sediment in residual fuel oil and distillate fuel oil containing residual components

Product features

● Equipped with a dedicated aging bath;

● Standard filtering elements with heating and cooling coils;

● Glass fiber filter paper with a pore size of 0.0016mm and a diameter of 47mm;

● Stainless steel ball valve switches between heat and cold sources;

● Digital display time relay controls working time;

● Micro computer PID temperature controller, PT100 temperature sensor, high temperature control accuracy;

Technical parameter

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list

Accessories that need to be prepared by oneself:

1. Electronic balance (1/10000)

2. Drying oven

3. Glass drying vessels (with silicone desiccant)

4. Graduated washing bottle or syringe 25ml

5. Mixing rod glass and glass beaker 30ml

6. High speed mixer 400r/min

7. Weighing bottle or dish

8. Glass fiber filter paper
