Round Flour Checking Sieve Timing 0 ～ 15 Min Adjustable Grain Inspection GB/T 5507

  • Round Flour Checking Sieve Timing 0 ～ 15 Min Adjustable Grain Inspection GB/T 5507
  • Round Flour Checking Sieve Timing 0 ～ 15 Min Adjustable Grain Inspection GB/T 5507
Place of Origin CHIAN
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification GB/T5507
Model Number ST114C
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Maximum Sieve Capacity 200g Tactical Diameter 50mm
Sieve Height 30mm Timing Range 0 ～ 15 Min (adjustable)
Working Voltage AC220V Motor Power 120W
Highlight

adjustable flour checking sieve

,

grain inspection sieve timer

,

GB/T 5507 flour sieve
Leave a Message
Product Description

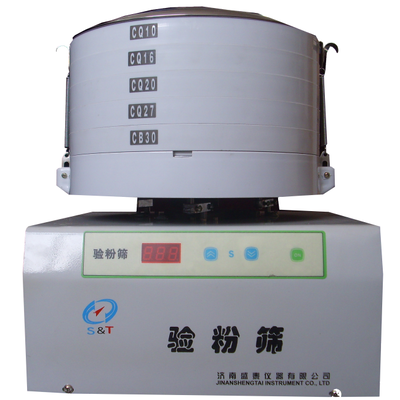

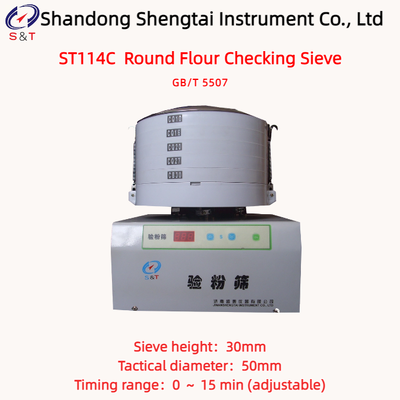

ST114C Round Flour Checking Sieve

ST114C Round Flour Checking Sieve is researched and developed by our company according to national standard GB/T 5507-2008 "testing of grain and oil, degree of flour thickness". It's a professional instrument for testing degree of thickness of flour and grain. It has the advantages of reasonable structure, steady operation, stable performance, sturdy and durable, easy to operate. And it is the necessary testing equipment used by the Quality and Technical Supervision Bureau, grain and oil quality inspection departments, food processing industry, schools and so on departments need to test the degree of thickness of flour and grain.

In terms of structure, a worm gear with a stable center of gravity and high precision is selected for variable speed transmission, and the plane rotation movement is made through the eccentric connecting rod mechanism, and the pressing rod seat integrated with the tray makes the sieve fixed more firmly.

The electronic timer controlled by the single-chip microcomputer has high timing accuracy and easy operation, which can realize time setting, work timing, emergency stop, automatic zero and other functions. The use of soft film key switch prolongs the service life of the instrument, and the technical indicators of the instrument fully meet the requirements of GB/T5507-2008 new national standard, and are necessary testing equipment for grain and oil quality inspection stations at all levels, product quality inspection institutes of the Bureau of Quality and Technical Supervision, and grain processing plants to determine the coarse and fineness of powder

Technical specifications

Maximum sieve capacity 200g
Tactical diameter 50mm
Sieve diameter Sieve area: Φ 300mm (diameter)
Sieve height 30mm
Swing speed 260r/min
Timing range 0 ～ 15 min (adjustable)
Motor power 120W
Working voltage AC220V
Weight 28kg
Instrument size 440 × 340 × 255mm
Instrument weight 28kg

Round Flour Checking Sieve Timing 0 ～ 15 Min Adjustable Grain Inspection GB/T 5507 0

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur in case of instrument updates, and no separate notice will be provided.



Grid parameter

Screen type Aperture (mm)
CQ10 710um(25 mesh)
CQ16 0.427(41 mesh)
CQ20 0.336(51 mesh)
CQ27 0.242(69 mesh)
CB30 0.198(76 mesh)
CB36 0.160(91 mesh)
CB42 0.137(107 mesh)



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Sieve lattice 1 Set
3 Power cord 1 Piece
4 Fuse tube 1 Piece 10A in the safe seat
5 Instruction manual 1 Copy
6 Warranty card 1 Copy

Round Flour Checking Sieve Timing 0 ～ 15 Min Adjustable Grain Inspection GB/T 5507 1

Quality assurance

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).

----We are responsible for free maintenance of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.

----We offer lifelong discounts on spare parts for the equipment, and provide lifelong maintenance and repair services for the entire machine.

----After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
