3 Layers Electronic Sieve Shaker Wheat Corn Grains Rotation Speed 120r/Min GB5494

  • 3 Layers Electronic Sieve Shaker Wheat Corn Grains Rotation Speed 120r/Min GB5494
  • 3 Layers Electronic Sieve Shaker Wheat Corn Grains Rotation Speed 120r/Min GB5494
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification GB5494-2019
Model Number ST134
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Screening Capacity 500g Number Of Screening Frame Layers 3 Layers
Screening Amplitude 100mm Rotation Speed 120r/min
Motor Power 60W Working Voltage AC220V
Highlight

3 layer electronic sieve shaker

,

wheat corn grain sieve shaker

,

GB5494 compliant sieve shaker
Leave a Message
Product Description

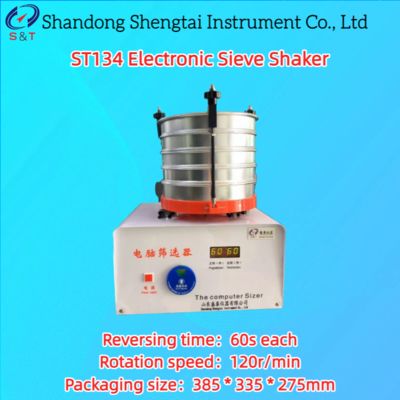

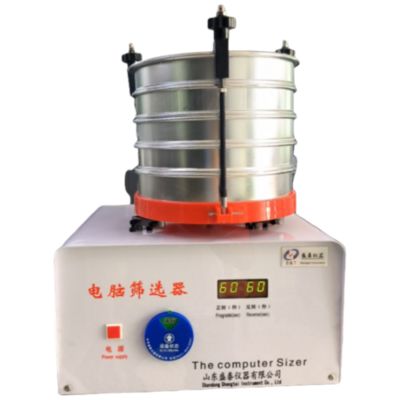

ST134 Electronic Sieve Shaker Electronic Sieving apparatus

ST134 electric filter is a specialized equipment developed according to the national standard GB5494-2019 "Inspection of Impurities and Imperfect Grains in Grain and Oil". It is a semi-automatic mechanical screen that adopts a desktop structure, a worm gear for variable speed transmission, and a three-point plane support for the screen body. It rotates in a plane through an eccentric connecting rod, and has the advantages of compact structure, smooth operation, stable performance, and easy operation. It is widely used for screening and determining grain oils and fats.

Technical specifications:

Maximum screening capacity 500g
Number of screening frame layers 3 layers
Screening amplitude 100mm
Rotation speed 120r/min
Reversing time 60s each
Supporting sieve grid outer diameter 220mm
Motor power 60W
Working voltage AC220V
Packaging size 385 * 335 * 275mm
Weight 10.86kg (cardboard box)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

3 Layers Electronic Sieve Shaker Wheat Corn Grains Rotation Speed 120r/Min GB5494 0

Grain screening is a testing instrument used to check the impurity content of granular grains and oilseed samples, as well as the content of rice bran powder, in order to determine their quality grade.

Pest screening is a specialized instrument used to test the pest density and pest grade standards of granular grain and oil samples.

Technical Specifications

  Grain Screening Pest screening
Outer diameter Φ220mm Φ300mm
Height 50mm 30mm
Aperture (mm) Φ1.0 , 1.2 , 1.5 , 2.0 , 2.5 , 3.0 , 3.5 , 4.0 , 4.5 , 5.0 , 12,1.5×20 Φ1.5 , 2.5

3 Layers Electronic Sieve Shaker Wheat Corn Grains Rotation Speed 120r/Min GB5494 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of spare parts and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
