SH616 Chemical Reagent Boiling Point Tester GB/T616 300W

SH616 Chemical Reagent Boiling Point TesterBoiling Point Tester

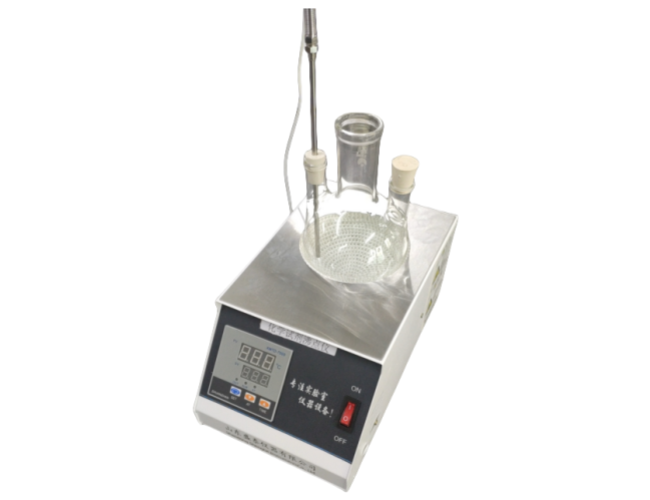

The SH616 chemical reagent boiling point tester is designed and manufactured according to the requirements of the Chinese standard GB/T616. This instrument is equipped with a single-chip digital precision pressure regulating electric heater. Due to the use of precision digital pressure regulation, the electric heater has the characteristics of fine pressure regulation, stable heating, and stable temperature rise.

The instrument is also equipped with a 500ml three necked round bottom flask, a glass test tube, a measuring thermometer, and an auxiliary thermometer. The instrument is easy to operate, has stable performance, fast heating speed, and uniform heating. The instrument can also be configured with a dedicated barometer for users to conduct experiments conveniently.

Boiling point: The principle of this method is that when the temperature of a liquid increases, its vapor pressure also increases. When the vapor pressure of the liquid is equal to atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0 ℃), the boiling temperature of the liquid is the boiling point of the liquid.

Main technical features

● The design of this instrument fully complies with the requirements of GB/T616.

● The design of the test vessel clamp is reasonable, and the installation and disassembly of the round bottom flask are convenient.

Main technical parameters and indicators

● Working power supply: AC 220V ± 10% 50Hz

● Heating power of electric furnace: 300W

● Environmental temperature: ≤ 35 ℃

● Relative humidity: ≤ 85%

● Power consumption of the whole machine: not exceeding 1100W

● Heating range: Room temp ～ 300 ℃

● Instrument size: 320 * 290 * 360mm

● Instrument weight: 15kg

● Packaging size: 450 * 390 * 420mm

● Packaging weight: 18kg (weight with pressure gauge)

● Packaging size: 400 * 290 * 460mm

● Instrument weight: kg (weight without barometer)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

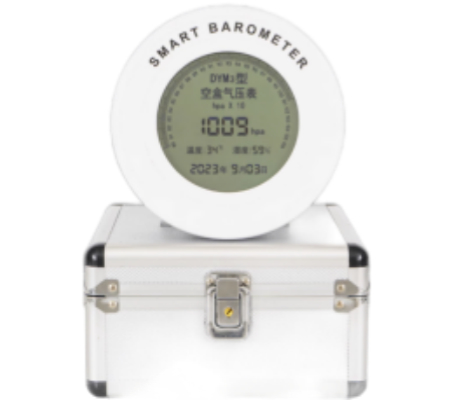

Optional: Barometer

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
