Fully Automatic Cloud Point Tester SH412 for Light Colored Chemicals

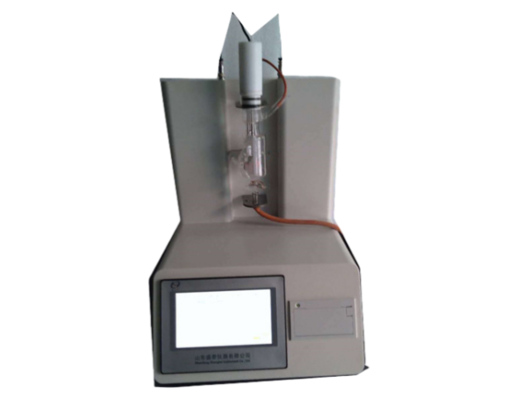

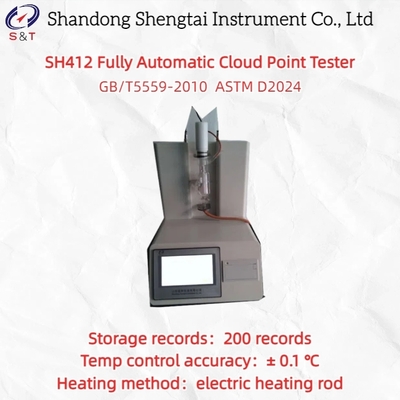

SH412 Fully Automatic Cloud Point Tester

The SH412 fully automatic cloud point analyzer is designed and manufactured according to the requirements specified in Method A of the national standard GB/T5559-2010 "Determination of Cloud Point of Ethylene Oxide Type and Ethylene Oxide Propane Block Aggregation Non Ionic Surfactants" and the standard test method for cloud point of non-ionic surfactants ASTM D2024. It is suitable for determining the cloud point of light colored chemical products.

Performance characteristics:

● 7-inch color LCD touch screen.

● Using imported photoelectric sensors from abroad, the test results are accurate and consistent in repeatability.

● Easy to operate, one click start, and the entire testing process is automatically completed.

● The host is controlled by a microprocessor program, and the experimental process automatically heats up, stirs, identifies and stores cloud points.

● Automatic printing, automatic shutdown at the end of the experiment.

● The experimental results can be exported through a USB flash drive and stored on a computer for multiple experiments and comparisons

Technical parameters:

● Compliant with standard: GB/T5559

● Temperature control range: Room temperature ～ 200 ℃

● Temperature control accuracy: ± 0.1 ℃

● Heating method: electric heating rod

● Heating power: 60W

● Mixing method: Automatic motor mixing

● Detection method: photoelectric sensor

● Storage records: 200 records

● Printing method: Micro printer

● Working power supply: AC 220V ± 10% 50HZ

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Instrument size: 380 * 320 * 480mm

● Weight: 12kg

● Packaging size: 560 × 405 × 540mm

● Weight: 15kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
