Fully Automatic Crystallization Point Tester Industrial Phenols Phenol ASTM D6875

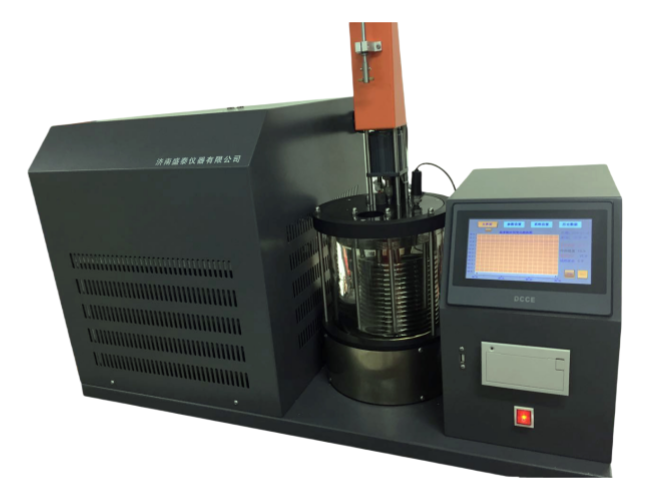

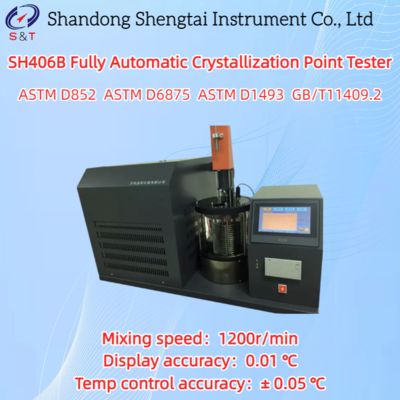

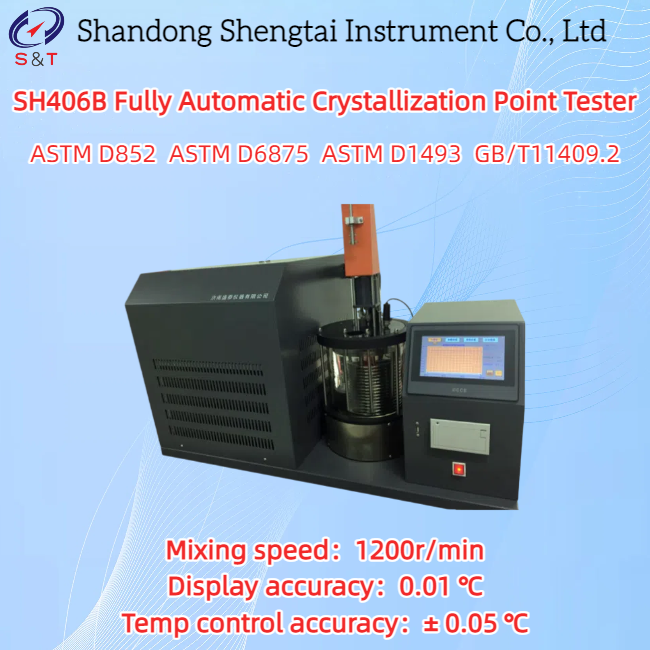

SH406B Fully Automatic Crystallization Point Tester

The SH406B fully automatic crystallization point analyzer is applicable to the GB/T 3145-2023 benzene crystallization point determination, GB/T 3069.2-2005 naphthalene crystallization point determination, GB/T 3710-2009 industrial phenol and phenol crystallization point determination, GB/T7533-1993 organic chemical product crystallization point determination, and GB/T618-2006 chemical reagent crystallization point determination standards. GB/T1663-2001 Determination of Crystallization Point of Plasticizers GB/T13255.2 Determination of Crystallization Point of Industrial Caprolactam. ASTM D852/D6875/D1493 GB/T11409.2 Determination of Crystallization Point for Rubber Antioxidants

Performance characteristics:

● Upgrade to a 7-inch color LCD display;

● Refrigeration method: Fully enclosed high-efficiency refrigeration compressor.

● Number of experimental groups: 1 group (2 groups can be customized).

● Detection method: Imported PT100 temperature sensor

● After upgrading, historical data can be stored for easy retrieval; It can also be equipped with USB output function.

● Standard micro printer with automatic measurement and printing

● After the experiment is completed, if there is no personnel operation, the automatic shutdown time of the refrigeration machine can be set arbitrarily within 0-50 minutes to avoid frequent opening of the compressor and extend the service life of the instrument,

Technical Parameter

● Working power supply: AC220V ± 10% 50Hz

● Working cold bath: double-layer vacuum glass bath

● Cold bath temperature control: +80 ℃ ～ -10 ℃ (-10 ℃ ～ 170 ℃ can be customized)

● Display accuracy: 0.01 ℃

● Temperature control accuracy: ± 0.05 ℃

● Bath liquid stirring: The stirring motor automatically stirs, with a power of 6W and a speed of 1200r/min.

● Refrigeration system: new type of refrigeration compressor.

● Sample mixing: synchronous reduction motor, 60 times/minute.

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval.

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage.

● Output format: The output format of the result USB drive is CSV or Excel.

● Data protection: equipped with date and password setting function.

● Standard Printing: Equipped with a mini printer, automatic measurement, and automatic thermal printing.

★ Remote upgrade: Equipped with TCP network transmission function, software can be remotely upgraded later. (Optional)

★ Data management: Can connect to the Limis system. (Optional)

● Power consumption of the whole machine: around 1500W

● Instrument size: 950 * 500 * 510mm

● Instrument weight: 48.83kg

● Packaging size: 1060 × 620 × 610mm

● Weight: 62kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
