Semi Automatic Crystallization Point Tester Compressor Refrigeration ± 0.5 ℃ ASTM D852

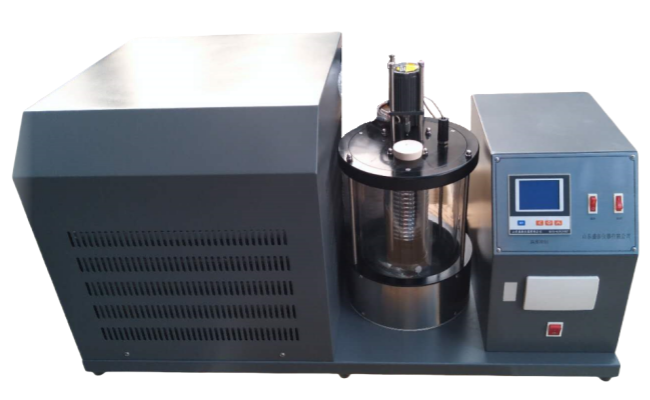

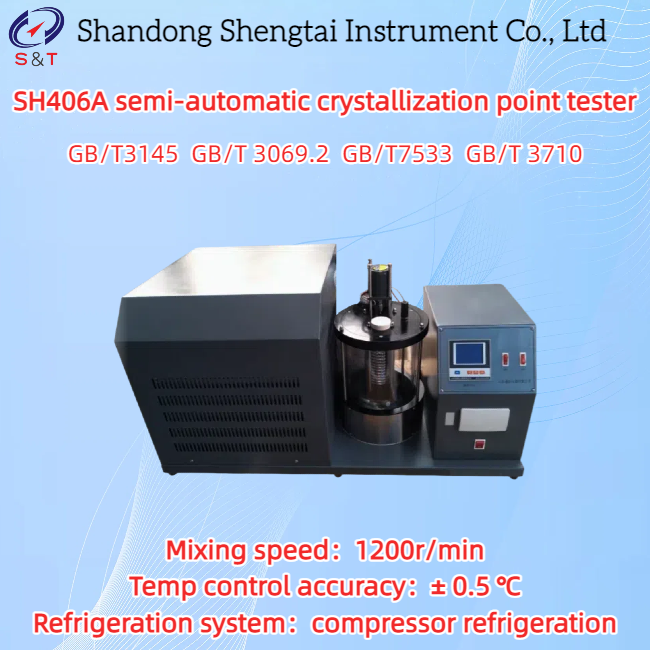

SH406A Semi-automatic crystallization point tester

summary:

The SH406A semi-automatic crystallization point analyzer is applicable to the GB/T3145-1982 benzene crystallization point determination, GB/T 3069.2-2005 naphthalene crystallization point determination, GB/T 3710-2009 industrial phenol and phenol crystallization point determination, GB/T7533-1993-2005 organic chemical product crystallization point determination, and GB/T618-2006 chemical reagent crystallization point determination standards. GB/T1663-2001 Determination of Crystallization Point of Plasticizers. (Benzene crystallization point meter, phenol crystallization point meter, phenol crystallization point meter, solidification point meter, plasticizer crystallization point meter)

Instrument features: The water bath or alcohol bath is controlled by a digital temperature controller, and the sample is mechanically stirred by a motor with dual motors.

Technical Parameter

1. Working power supply: AC220V ± 10% 50Hz

2. Working cold bath: double-layer vacuum glass bath.

3. Cold bath temperature control: +80 ℃ ～ -10 ℃.

4. Temperature control accuracy: ± 0.5 ℃

5. Bath liquid stirring: The stirring motor automatically stirs, with a power of 6W and a speed of 1200r/min

6. Refrigeration system: compressor refrigeration

7. Sample mixing: synchronous reduction motor, 60 times/minute

8. Environmental temperature: ≤ 30 ℃

9. Relative humidity: ≤ 85%

10. Whole machine power consumption: around 1500W

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
