Liquefied Petroleum Gas And Light Hydrocarbon Density Tester 15 ± 0.2 ℃ Or 20 ± 0.2 ℃ ASTMD1657

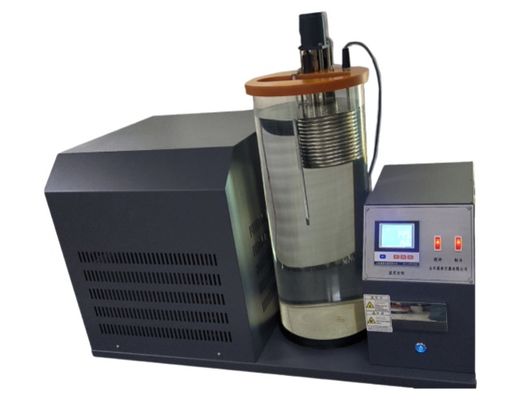

SH0221 Liquefied Petroleum Gas Density Tester

SH0221 Liquefied Petroleum Gas Density Tester (Pressure Density Gauge Method) is used to measure liquefied petroleum gas and light hydrocarbons in accordance with standards such as SH/T0221-92, ASTMD1657, and ISO3993 "Determination of Density or Relative Density of Liquefied Petroleum Gas and Light Hydrocarbons (Pressure Density Gauge Method)". At the test temperature, samples with a vapor pressure (gauge pressure) higher than 1.4 MPa should not use this instrument.

Functional Features

● All three valves are made of 1Cr18Ni9Ti material and can withstand a pressure of 4Mpa.

● The cylinder is made of transparent organic glass and sealed at both ends with metal end plates and chloroprene rubber gaskets.

● The water bath is made of 1Cr18Ni9Ti material, equipped with an electric heater and electric stirring device, and a temperature automatic adjustment system, which can meet the test temperature of 15 ± 0.2 ℃ or 20 ± 0.2 ℃.

● The temperature control device adopts digital display, with sensitive response and accurate temperature control.

● The mixer consists of a motor, a mixing shaft, and blades, with low noise and high efficiency.

● The refrigeration method adopts compressor refrigeration

Technical Parameter

● Power supply: 198-242V 49-51Hz

● Mixing motor

a. Model: YY

b. Power: 15W

c. Speed: 1250r/min

● Heating power: 1000W

● Temperature control accuracy: 15 ± 0.2 ℃ or 20 ± 0.2 ℃

● Cylinder withstand pressure: >1.4Mpa

● Instrument size: 950 * 510 * 795 mm

● Instrument weight: 50kg

● Packaging size: 1030 * 590 * 880 mm

● Packaging weight: 76kg wooden crate

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Self provided medium

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
