7 Layers Tapping Vibrating Screen Machine GB/T7702.2 Rotation Stroke 25mm 1400r/Min

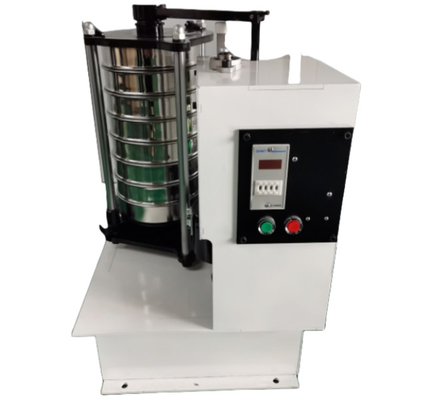

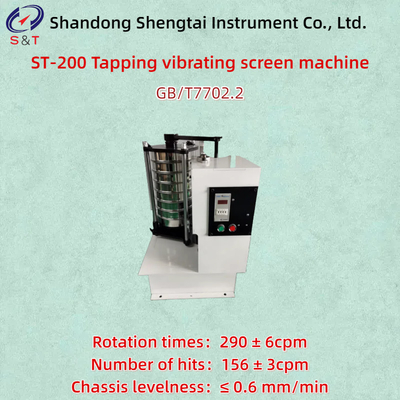

ST-200 Tapping vibrating screen machine

The ST-200 tapping vibrating screen machine is mainly composed of a machine base, a screen, and a transmission mechanism. This tapping screen can be equipped with specialized fixtures, which can be used to clamp the Φ 200 test screen, as well as the Φ 75 and Φ 100 sets of screens. The clamping is convenient and flexible, firmly clamped, and can automatically stop the machine. Determination of particle size of activated carbon in accordance with GB/T7702.2

working principle:

The S-T200 series tapping screen motor drives the gear to change speed through a synchronous belt, causing the main shaft to rotate. The main shaft drives the eccentric wheel to make the sliding plate drive the test screen to shake left and right, while also driving the top rod gear to rotate. The top tapping hammer strikes the test screen to screen the materials in the test screen and sample screen.

The purpose of ST-200 series impact screen:

The ST-200 series impact screen can screen products with various characteristic materials. Suitable for checking the particle size composition of ordinary abrasives and the production grading and particle size composition of superhard materials, it is widely used in scientific research and production laboratories of geological, metallurgical, powder, chemical, construction cement, pharmaceutical, national defense and other departments to screen and test materials. The tapping screen is a reasonable innovation based on the original tapping standard vibrating screen machine, which improves the structure of the original machine base. The structure is more compact, the weight of the body is reduced, the product is more durable, lightweight, convenient, and the maintenance is simpler. The accessories are easy to repair and purchase, and can be widely used in laboratory screening and testing of geological, powder metallurgy, abrasive, powder, chemical, building materials, pharmaceutical, national defense and other departments. It is especially suitable for high-intensity and high-frequency repeated use in the production grading process of diamond micro powder and superhard materials industry.

Technical parameters:

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
