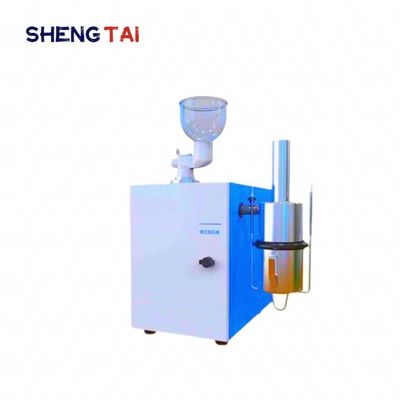

ST005 Fully Automatic Hammer Type Cyclone Grinding Equipment High Speed

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST005
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL ST005 Working Power Supply AC220 ± 10V 50Hz
Motor Power 750W Working Chamber Diameter 110mm
Rotating Speed Of Grinding Hammer 16800r/min Sieve Plate Aperture 0.5, 0.8, 1.5mm
High Light

High speed cyclone grinding equipment


hammer type cyclone grinding equipment


Hammer type cyclone mill

Leave a Message
Product Description

ST005 High Speed Fully Automatic Hammer Type Cyclone Grinding Equipment Is Durable And Durable

Hammer type cyclone mill is a grinding equipment with beautiful appearance, compact structure, simple operation, stable operation, and durability.


The characteristics are as follows:


High speed, high efficiency, and fine particles. The sample was hammered into a fine and uniform powder by a high-speed grinding hammer, and passed through a stainless steel sieve with a high-speed airflow to enter the integrator to prepare the sample.

The interior wall of the box is pasted with domestic advanced sound absorption and insulation materials, with lower noise than similar products at home and abroad.

The motor is equipped with a built-in temperature protector. Once the motor exceeds the set temperature, it will automatically stop and restart after the temperature drops to normal.

The hammer type cyclone mill can be directly installed with an automatic feeder, which can effectively control the feeding speed of high moisture samples and shelled grain samples, and improve the crushing effect.

Crushed samples are suitable for the determination of gluten quantity, quality, grain viscosity, wheat falling value, near-infrared composition, and other indicators.

The hammer type cyclone mill is easy to operate and has a built-in protection switch for safe use.

The hammer type cyclone mill is not suitable for the determination of sample moisture.


Technical specifications


Working power supply :AC220 ± 10V 50Hz

Motor power :750W

Working chamber diameter: 110mm

Rotating speed of grinding hammer: 16800r/min

Sieve plate aperture : 0.5, 0.8, 1.5mm

Overall dimension  :530 × 530 × 650mm

Operating Weight :51kg


Test items and sample size


Test items Sample Sieve plate aperture
Sample Requirements Sample size requirements Remarks





(Number of holes/inch)

screen size
Gluten value wheat 0.8 95% pass through 0.427 40 CQ16
falling number grain 0.8 90% pass through 0.505 35 CQ14 100% pass through 0.71mm
viscosity foodstuff 0.5 90% pass through 0.270 60 CQ24
maize 0.8 90% pass through 0.437 40 CQ16
Fatty acid value Rice 0.8 95% pass through 0.437 40 CQ16
foodstuff 0.8 90% pass through 0.437 40 CQ16
steamed bun wheat 0.8 60% pass through 0.161 91 CQ36
steamed bread of corn maize 0.8 75% pass through 0.437 40 CQ16

ST005 Fully Automatic Hammer Type Cyclone Grinding Equipment High Speed 0ST005 Fully Automatic Hammer Type Cyclone Grinding Equipment High Speed 1ST005 Fully Automatic Hammer Type Cyclone Grinding Equipment High Speed 2
