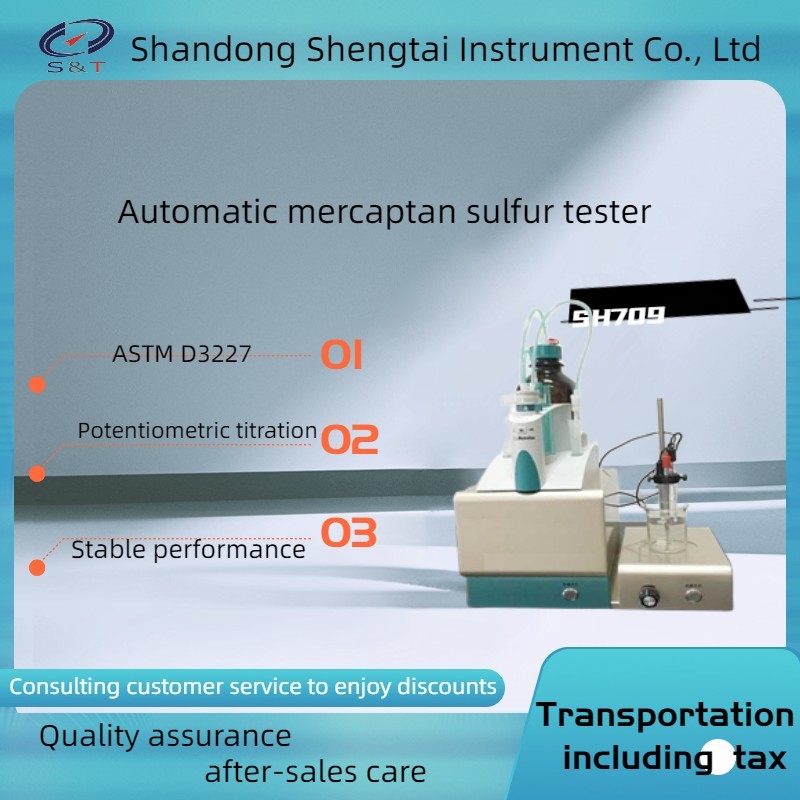

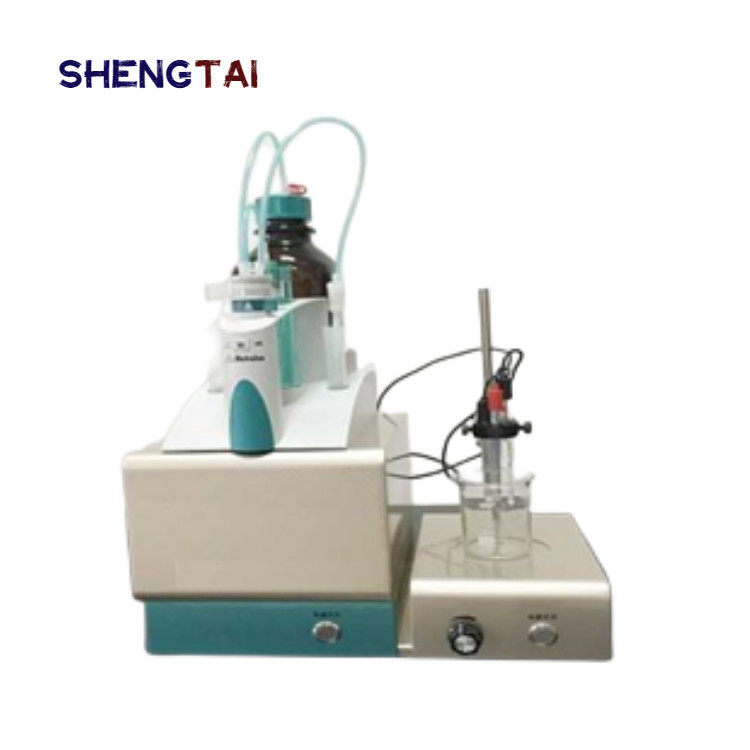

ASTM D3227 Automatic Mercaptan Sulfur Tester Potentiometric Titration Method

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH709
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH709 Measurement Range 0.0003% ~ 0.01%(3PPM-100PPM)
Potential Measurement Range 0 ~ ±1999.5 MV Basic Error 0.1% ± 0.5mV
Burette Accuracy ±0.1%FS Burette Volume 10ML
High Light

Automatic Mercaptan Sulfur Tester

,

ASTM D3227 Mercaptan Sulfur Tester

,

Petroleum Products Mercaptan Sulfur Tester

Leave a Message
Product Description

ASTM D3227 Petroleum Products Distillate Fuel Oil Automatic Mercaptan Sulfur Tester (Potentiometric Titration Method)

SH709 automatic mercaptan and sulfur measuring instrument using potential titration method measurement principle.

The H2S-free sample was dissolved in isopropanol solvent of sodium acetate, and potentiometric titration was carried out with standard solution of silver alcohol nitrate. The pH glass electrode was used as reference electrode, and the mercaptan sulfur electrode was used as indicator electrode. The potentiometric spike between the two electrodes indicated the end point of titration.

The mercaptan sulfur precipitates to silver mercaptan during titration.

SH709 mercaptan and sulfur measuring instrument conforms to GB/T 1792, ASTM D3227 and other standards.

It is suitable for the determination of mercaptan sulfur in jet fuel, gasoline, kerosene and light diesel oil without hydrogen sulfide. The determination of mercaptan sulfur has important significance in the evaluation of odor of jet fuel, gasoline, kerosene and light diesel oil, the adverse effect on rubber parts of fuel system and the corrosion of fuel system.

Mercaptan Sulfur Content (Potentiometric Titration Method)

ASTM D3227 Distillate Fuels Mercaptan Sulfur Tester (Potentiometric Method) SH709

SH709Distillate Fuel Mercaptan Sulfur Analyzer

  ASTM D3227Mercaptan Sulfur Content Titration Tester (Potentiometric Titration Method)



Technical features:

1. Complete set of instruments: host machine, titration unit, computer (including operating software), printer, etc.

2.Windows operating platform, man-machine direct dialogue, convenient operation, with workstation function.

3. It has the function of continuous titration.

4. Real-time display of titration curve, storage and printing of titration curve, results and data.

5. Automatic cleaning, automatic value filling.

6. Automatic identification of the end point, automatic filter out false end point, and can be manually selected to judge the end point.

Technical indicators:

measurement range 0.0003% ~ 0.01%(3PPM-100PPM)
Precision

R =0.00007+0.027X1

(X1 is the mean value of the two mecaptan sulfur results repeated determination, % (m/m)



potential measurement range

0 ~ ±1999.5 mV



Basic error

0.1% ± 0.5mV



Relative error

≤5%



Burette accuracy

±0.1%FS



Burette volume

10ml



Sending accuracy

≤0.01ml



Size: 350 * 280 * 380mm Weight: 18kg

                                    Packing list







S/N Name Unit Quantity Remarks
1 Host set 1
2 Microcomputer host set 1 User can provide
3 Keyboard set 1 User can provide
4 printer set 1 Prepared by user
5 A magnetic stirrer set 1
6 Serial communication line piece 1
7 Print cable piece 1 User can provide
8 Short circuit plug piece 1
9 Fuse (1.5A) piece 2 In the host power socket
10 Mercaptan sulfur electrode piece 1 Specially made by our factory
11 Magnetic stirrer piece 1
12 power cord piece 1
13 an instruction manual copy 1
14 Packing list copy 1
15 certificate copy 1

ASTM D3227 Automatic Mercaptan Sulfur Tester Potentiometric Titration Method 0
ASTM D3227 Automatic Mercaptan Sulfur Tester Potentiometric Titration Method 1
