ST123B Automatic Vegetable Oil Smoke Point Tester GB/T 20795-2006 Automatic Method

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST123B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST123B Working Power Supply AC220V±10%, 50Hz
Temperature Measurement Range Room Temperature ~ 400℃ Accuracy 0.5%
Reproducibility ≤4℃ Heating Rate In Line With GB/T20759 Standard
High Light

Vegetable Oil Smoke Point Tester

,

Vegetable Oil Smoke Point Testing Instrument

,

GB/T 20795 Smoke Point Tester

Leave a Message
Product Description

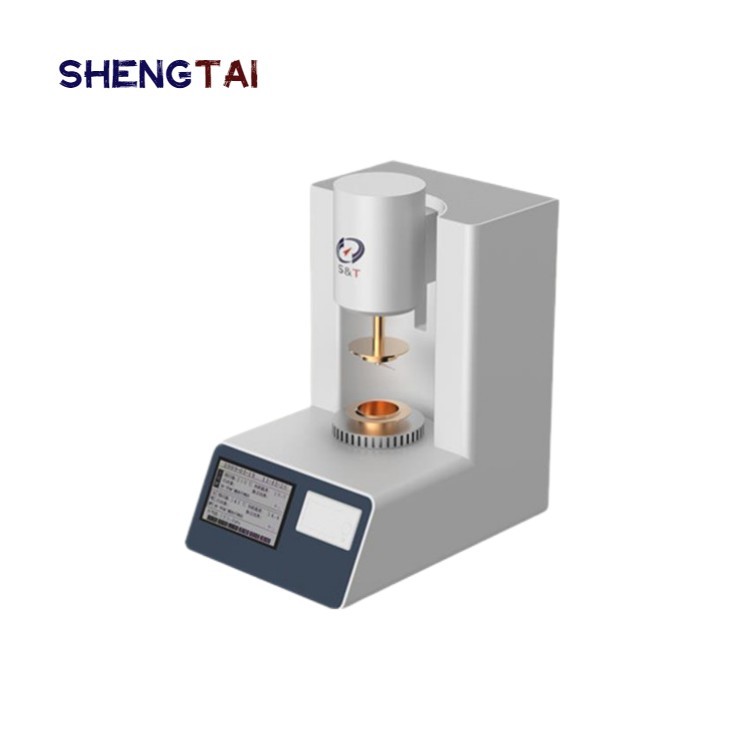

ST123B Automatic Vegetable Oil Smoke Point Tester GB/T 20795-2006 Automatic Method

ST-123B Automatic smoke point tester is based on the national standards GB/T20795-2006 " vegetable oil smoking point tester Determination" This instrument adopts LCD screen to display .It can preset smoke point temperature and sample mark number. It has menu that can prompt and guide. It adopts simulation tracking to display the function curve of temperature rising and test time It has the functions of English operation prompt,test date,test time and other parameters. This instrument can automatically detect the smoke point and print test data.The test arm automatically rise up and lower down. Widely used in quality control, import and export inspection, plant oil processing, plant oil storage and transportation, food processing, scientific research, agricultural breeding, the school ,plant oil smoking point testing department and so on.

edible oil smoke point tester vegetable oil smoking point tester

Automatic Determination

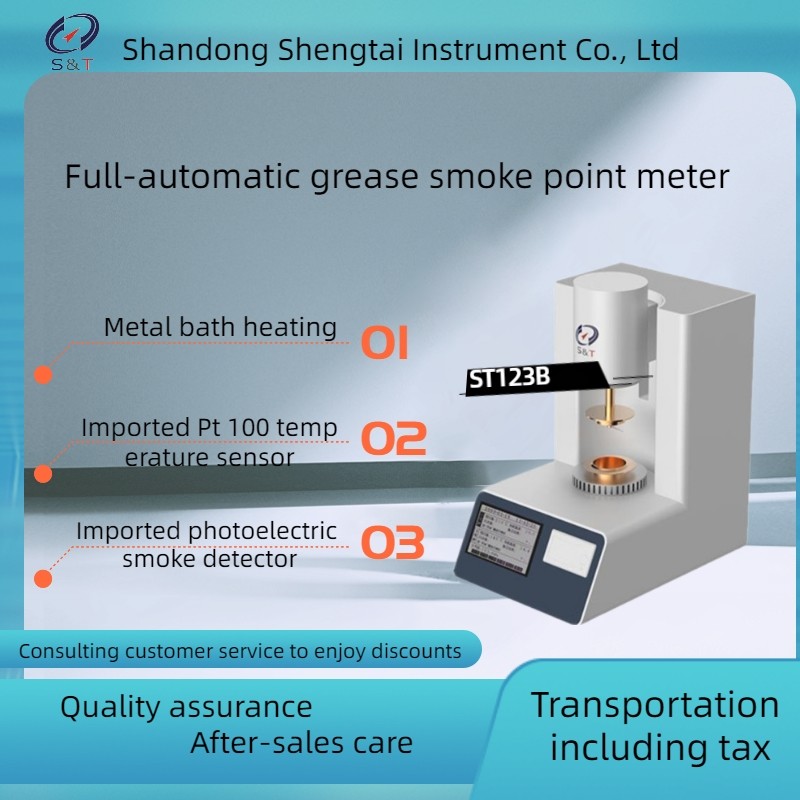

Instrument features:



Standard: GB/T20795-2006 Determination of smoke point of vegetable oil



1. Touch screen display: 7-inch touch screen display;



2. Heating method: metal bath heating.



3. Detection method: imported photoelectric smoke detector.



4. Standard micro-printer automatic measurement automatic thermal printing



5. Wavelength requirement: 380nm-780nm



6. Temperature sensor: imported Pt 100 temperature sensor



7. Standard micro-printer automatic measurement automatic thermal printing

Major technical parameter:

1. Power: AC(220±22)V,50Hz

2. Temperature measurement:Range:room temperature~400℃;

Accuracy:0.1℃

3. Heating rate:correspond with GB/T20759;

4. Storage method: the experimental results can store 199 sets of historical data for easy query;

5. Results output: also equipped with U disk output function, output to PC terminal for long-term storage

6. Output format: The resulting U disk output format is CSV or excel.

7. Data extension: laser printer interface, can link HP1108 laser printer (optional).

8. Data protection: with the date password setting function.

9. Standard printing: a standard micro-printer for automatic measurement and automatic thermal printing

10. Test mode:Photoelectric sensor,that wavelength is 430nm;

11. Remote upgrade: with TCP network transmission function, can be the software remote upgrade later

12. Ambient temperature:(10~40)℃;

13. Relative humidity:≤80%;

14. Total power consumption:≤500W.



Name Automatic plant oil smoke point tester
working power supply AC220V±10%, 50Hz
temperature measurement range room temperature ~ 400℃;
Repeatability ≤2℃
Reproducibility ≤4℃
Resolution 0.1℃
Accuracy 0.5%
heating rate in line with GB/T20759 standard
detection method photoelectric sensor

Using embedded system design



the whole process of test automatic detection; The test results can be stored; It has printing function.













































ST123B Automatic Vegetable Oil Smoke Point Tester GB/T 20795-2006 Automatic Method 0

ST123B Automatic Vegetable Oil Smoke Point Tester GB/T 20795-2006 Automatic Method 1

ST123B Automatic Vegetable Oil Smoke Point Tester GB/T 20795-2006 Automatic Method 2
