Halogen Rapid Moisture Analyzer ST-60 Principle Of International Oven Drying Method
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST-60 | Service Temperature | 5°C---35°C |
---|---|---|---|
Calibration Method | External Calibration | Pan Size(mm) | Φ90 |
Weight(Kg) | 5.8 | Heating Mode | Halogen Lamp |
Temperature Range | 40°C---199°C | Moisture Range | 0.00%---100% |
Dry Residual Range | 100.00%---0.00% | ||
High Light | International Oven Drying Method Moisture Analyzer,Halogen Rapid Moisture Analyzer |

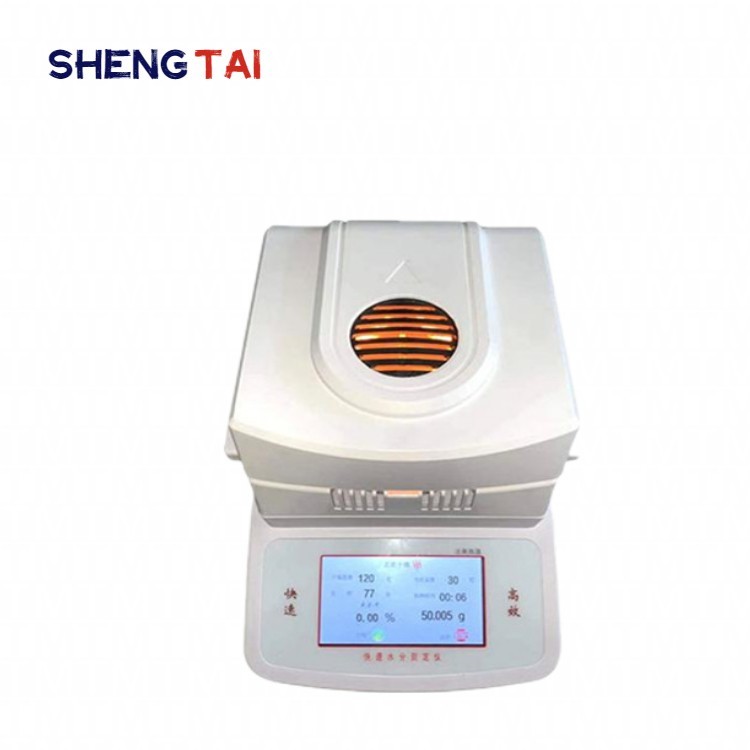

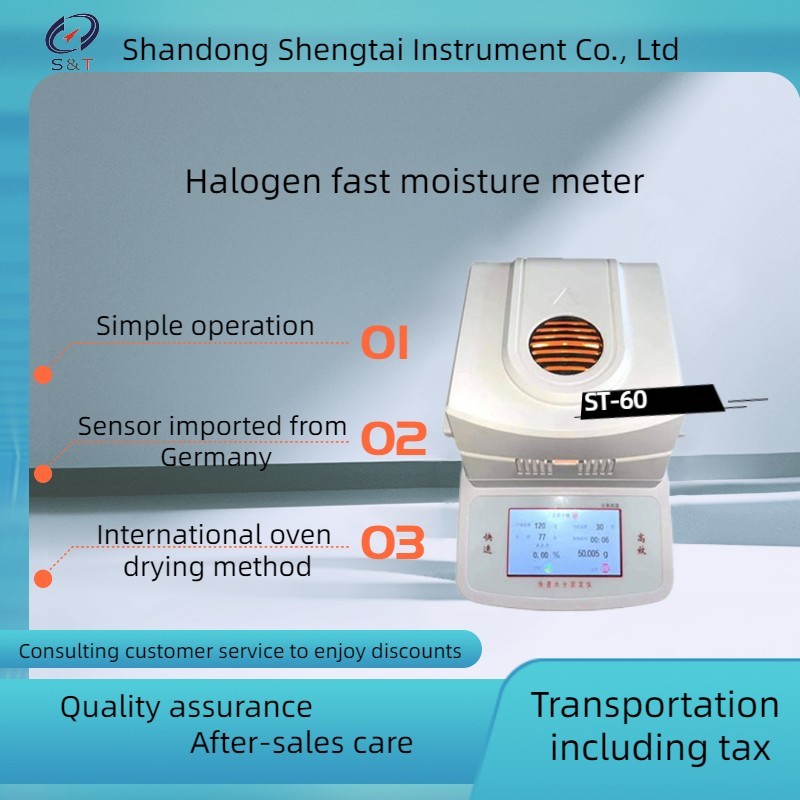

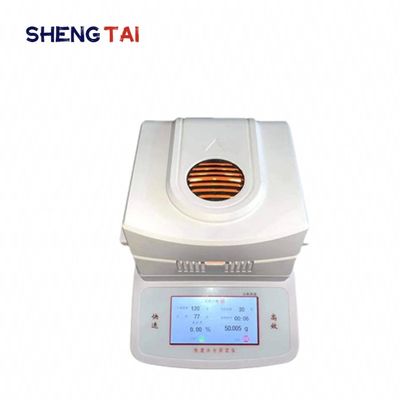

ST-60 Principle Of International Oven Drying Method For Halogen Rapid Moisture Analyzer
ST-60Moisture Analyzer with halogen heating, intelligent operation. Quickly drying the sample evenly to obtain accurate moisture determination results of ground water clear determination to achieve visual information display, simple, easy to operate instrument. Water samples stored in a variety of pre-determination, makes testing quick and easy. And improved several times compared to mechanical efficiency and accuracy of measurements. Standard interface with computers and other peripherals connected.
0.001g/1mg/5mg/10mg Digital Halogen Grain Corn Seeds Analysis Moisture Analyzer
110g 0.01g 0.005g 0.001g 0.002g Digital Halogen Moisture Analyzer
Ma-50-5 Digital 0.005g Rapid Halogen Heating Grain Dry Fruit Moisture Analyzer
characteristic
1. It can be used after unpacking without installation and commissioning;
2. No training is required, the operation is simple, and cumbersome use steps are saved;
3. Short measuring time and high working efficiency;
4. Uniform heating, stable performance and accurate testing;
5. Small size and light weight;
6. Full-automatic measurement, alarm reminder after measurement, no need to watch the measurement process;
7. It is widely used and almost suitable for moisture determination in all industries;
8. The sensor imported from Germany makes the instrument test more excellent and accurate;
9. The unique windshield design makes the instrument weighing system more stable;
10. The water content and solid content of the sample can be converted at the same time;
11. The heating chamber adopts pure stainless steel chamber cover, which is high temperature resistant and easy to clean.
working principle:
The traditional moisture determination method is generally oven drying method. The test of a sample takes two or three or even three or four hours, and the moisture value (moisture content) of the sample can be obtained only after weighing and manual calculation by a balance. The low efficiency of moisture determination by oven method can not meet the needs of high-tempo enterprise production. ST series rapid moisture tester is a high-efficiency moisture tester developed. It uses a high-efficiency drying heater - high-quality annular halogen lamp to heat the sample quickly and evenly, and the moisture of the sample is continuously dried. During the whole measurement process, the instrument automatically displays the measurement results in real time: sample weight, water content, solid content, measurement time, heating temperature, etc.
Technicl parameters
Model | ST-60 | ST-80 | ST-100 |
Maximum weighing (g) | 110 | 110 | 110 |
Reading accuracy (g) | 0.005 | 0.001 | 0.0001 |
Moisture measurement error | 0.2% | 0.1% | 0.05% |
Service temperature | 5°C---35°C | ||
Display | LCD | ||
Calibration method | External calibration | ||
Pan size(mm) | Φ90 | ||
Dimensions(W*L*H) | 200*180*380 | ||
Weight(Kg) | 5.8 | ||
Heating mode | Halogen lamp | ||
Temperature sensor | PT-100 | ||
temperature range | 40°C---199°C | ||
Temperature interva | 1°C | ||
Moisture range | 0.00%---100% | ||
Moisture readability | 0.01% | ||
Dry residual range | 100.00%---0.00% | ||
Dry residual readability | 0.01% | ||
ATRO | 100%---999% | ||
ATRO | 0%---999% | ||
Temperature setting | 40°C---199°Cby1°Cstep | ||
Time setting | 1---99min by 1s step | ||
Automatic stop | 0.1%---9.9%within 1 min | ||
Save History | 15 | ||
Heating part | 220V+15%50Hz 400W | ||
Connecting part | R232 Interface | ||
Balance part | External power supply Output: 9V Lnput: 220V+15%50Hz |
packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Sample tray | 5 | piece | |
3 | Power cord | 1 | piece | |
4 | Fuse tube | 1 | piece | 10A in the safety seat |
5 | instruction manual | 1 | copy | |
6 | Certificate warranty card | 1 | COPY |
