Chemical reagent - Determination of crystallization point - SH406 plasticizer crystallization point analyzer

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Plasticizer Crystallization Point Meter/tester | Cold Tank Temperature Control | +80℃ ~ -10℃. |
---|---|---|---|
Temperature Control Accuracy | ±0.1℃ | Bath Liquid Stirring | Automatic Stirring Motor, Power 6W, 1200r/min. |
Working Cold Tank | Double Vacuum Glass Bath. | Brand | ISO9001 |
Highlight | Benzene Crystallization Point Tester,Plasticizer Crystallization Point Tester,Plasticizer Crystallization Point Meter |
Benzene Crystallization Point Tester Plasticizers -- Determination Of Crystallinity Pointplasticizer Crystallization
SH406 Automatic benzene crystallization point tester is applicable to standard GB/T3145-1982 benzene crystallization point determination, GB/T 3069.2-2005 naphthalene crystallization point determination, GB/T 3710-2009 industrial phenol, phenol crystallization point determination, GB/ T7333-2005 organic chemical products crystallization point determination, GB/T618-2006 chemical reagent crystallization point determination.
Plasticizers -- Determination of crystallinity point
(benzene crystallization point meter, phenol crystallization point meter, phenol crystallization point meter, freezing point meter, plasticizer crystallization point meter)

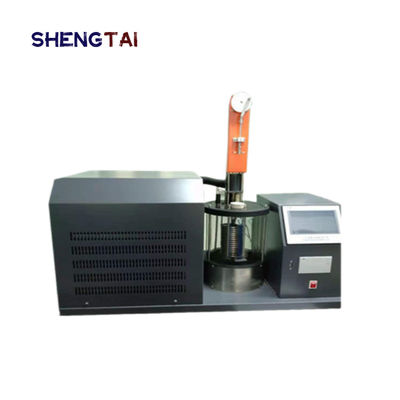

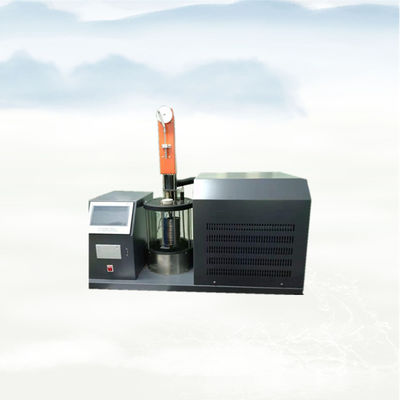

Automatic Crystallization Point Tester
Equipment features:
the embedded system design, the whole process of the test automatic detection;
Color touch screen;
The test results can be stored;
You can view historical data;
Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.
Technical parameters
working cold tank | double vacuum glass bath. |
cold tank temperature control | +80℃ ~ -10℃ |
control accuracy | ±0.1℃ |
Bath liquid stirring | automatic stirring motor, power 6W 1200r/min |
working power supply | AC220V±10%;50 hz. |
Refrigeration system | new refrigeration compressor. |
sample mixing | synchronous reducer motor, 60 times/min. |
Ambient temperature | ≤30℃ |
relative humidity | ≤85%. |
Power consumption of the whole machine | about 1500W |
Instrument size: 680 * 380 * 480mm Weight: 35kg |
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Crystallization point test tube | 1 | set | |
3 | Temperature sensor | 2 | piece | |
4 | Power cord | 1 | piece | |
5 | instruction | 1 | copy | |
6 | Packing list | 1 | copy | |
7 | Certificate warranty card | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
