Petroleum Products Carbon Residue Tester ASTM D4530 ISO 10370 1993

Automatic carbon residue tester "ASTM D4530" and "ISO 10370:1993" carbon residue determination of petroleum products

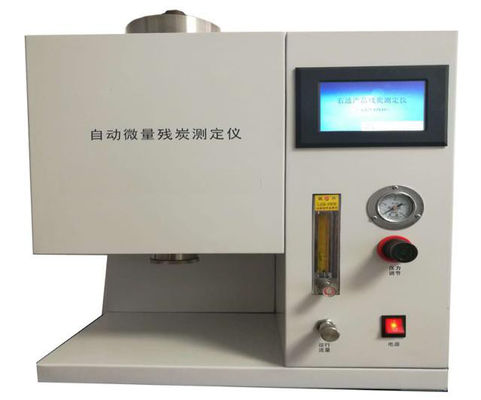

SH109 Automatic carbon residue tester

SH109 automatic carbon residue tester is designed and manufactured in accordance with the standard requirements of GB/T 17144-1997 "carbon residue determination of petroleum products (trace method)", "ASTM D4530" and "ISO 10370:1993".

It has the characteristics of beautiful appearance and convenient operation.

The test results are consistent with those of GB/T268(Conrad's method), and it is also suitable for the detection of petroleum products with a carbon residue value of less than 0.10(m/m) and composed of distilled oil.

performance characteristics of Automatic carbon residue tester

1, Adopt 5 color LCD touch screen automatic calculation, optional printing function, main board with communication interface.

2. The whole heating process program control, automatic control of heating rate, automatic control of the set temperature, stable temperature control.

3. Display instrument is in a state of "purge", "temperature rise" and "constant temperature"

4, Adopt embedded operating system, temperature rise, flow automatic control, real-time display experiment process

5, can edit the input sample tube, sample quality, automatic calculation of carbon residue value.

6, can store hundreds of groups of historical data, convenient query.

Historical data can be queried by date

Main technical parameters of Automatic carbon residue tester

1, the measurement range: 0.10%(m/m)-30.0%(m/m)

2, temperature range: room temperature --500℃

3, constant temperature accuracy: 500℃ + 2.0℃ constant temperature for 15min

4. Gas consumption: standard nitrogen bottle with pressure of 14700kPa(150kg/cm2)

5. Set time error:< 0.1 s

6, the pressure adjustment range: 0kPa(0kg/cm2)-392kPa(4kg/cm2)

7, the size of the combustion chamber: Φ 85 mm x 105 mm

8. Waste liquid collection bottle: 200ml

9. Heater power: 1000W

10. Overall dimension: 230×320×425mm

11, flow adjustment range: 100ml/min-1000ml/min;

Automatic switch between 150ml/min and 600ml/min

12, working power supply: AC220V±10%, 50Hz
