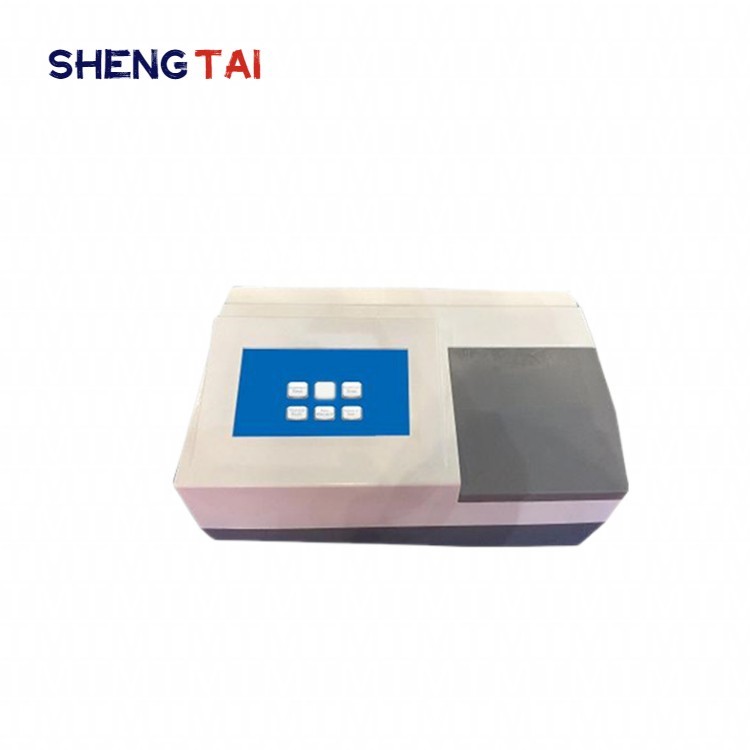

ST-2000A Mycotoxin tester enzyme-linked immunosorbent assay Rich computing modes

ST-2000A mycotoxin analyzer is a necessary analytical instrument for aflatoxin and enzyme-linked immunosorbent assay. The principle of solid-phase enzyme-linked immunosorbent assay (ELISA), namely enzyme-linked immunosorbent assay (ELISA), is composed of this instrument and B1 kit, which can be used to determine the content of aflatoxin B1 and other mycotoxins in samples in a limited and quantitative manner (if equipped with other kits, other toxins can be detected). It is widely used in the detection of aflatoxin B1 and other mycotoxins in food, feed, oil, dairy products, drugs, beverages, wine and other products.

Performance characteristics:

1. Display operation: color LCD screen, videophone distribution board, display of whole board information, touch screen operation

2. Vibrating plate function: Level 3 vibrating plate speed, time 0-255 seconds adjustable

3. Workstation: professional enzyme marker software, which can store 500 groups of programs, 100000 sample results, and provide rich calculation modes such as absorbance, linear equation, logarithmic equation, quadratic equation, cubic equation, absorbance percentage-concentration logarithmic equation, spline function, inhibition rate, etc

Technical parameters:

Light source: DC12V 22W imported halogen lamp

Wavelength range: 400-900nm

Filter: 405, 450, 492, 630nm as standard, other wavelengths optional

Reading range: 0-4.000Abs

Resolution: 0.001Abs

Indication error: ≤± 0.01Abs

Stability: ≤± 0.003Abs

Repeatability: ≤ 0.3%

Size: 400mm * 260mm * 200mm

1 Principle and application

This kit uses indirect competitive ELISA method to detect aflatoxin B1 (AFB1) in grains, feed and other samples. The kit is composed of enzyme-labeled plate pre-coated with coupling antigen, horseradish enzyme marker, antibody, standard and other matching reagents. During the test, add the standard or sample solution, the aflatoxin B1 in the sample and the enzyme plate are pre-coated with the conjugate antigen to compete for the anti-aflatoxin B1 antibody. After adding the enzyme marker, use the TMB substrate to develop the color. The sample absorbance value is negatively correlated with the content of aflatoxin B1 contained in the sample. The residual amount of aflatoxin B1 in the sample can be obtained by comparing with the standard curve.

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
