Flour, wheat flourTest Instrument ST007AP Single head wet gluten tester Gluten content, index, water holding capacity

  • Flour, wheat flourTest Instrument ST007AP Single head wet gluten tester Gluten content, index, water holding capacity
  • Flour, wheat flourTest Instrument ST007AP Single head wet gluten tester Gluten content, index, water holding capacity
Place of Origin CHINA
Brand Name Shandong Shengtai
Certification ISO9001
Model Number ST007AP
Minimum Order Quantity 1 Sets
Packaging Details wooden case
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST008 Motor Speed 6000 R/min, 3000 R/min
Sieve Box Orifice Plate Φ 0.6mm × 1.25mm Working Time 0.5~5min (adjustable)
Motor Power 25W Working Voltage AC220V
Operating Weight 6kg
High Light

1 Min Gluten Meter

,

120r/min Gluten Test Instrument
Leave a Message
Product Description

ST007AP=ST007A+ST008+ST009

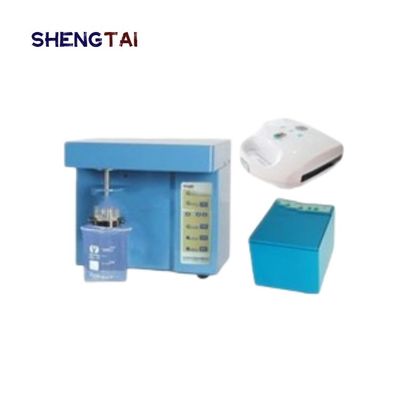

ST007AP Gluten Tester is used by grain processing and metering departments to determine the gluten content, gluten index, and gluten water retention in flour and wheat flour. It consists of a gluten washing instrument, an index tester (centrifuge), and a drying instrument. The technical indicators shall comply with the national standards GB/T14608-93 and SB/T10248-95.

Technical features:

Note: Single head wet gluten tester ST007AP=ST007A+ST008

1. The key switch of this instrument adopts a membrane soft key switch, which has a long service life. Other units use a ship type switch, which has been used many times and is prone to buttons becoming inflexible, requiring replacement.

2. The time setting can be arbitrarily set within the range specified in national standards.

3. The electrical control part of the instrument is installed on the side to effectively prevent some liquid from flowing into the circuit board and corroding the circuit board. This design principle can better extend the service life of the instrument. In some manufacturers, the electrical part is located at the bottom, and liquid can easily flow into the circuit board and corrode it. The accuracy and lifespan of the instrument will be greatly reduced.



Basic parameters:



Amount of washed wheat flour: 10.000.01g

Mixer speed: 120r/min

Washing liquid flow rate: 50-54ml/min

The gluten index meter (gluten centrifuge) (ST008) is a special instrument developed and produced in accordance with the provisions of GB/T5506.2-2008 "Methods for the Determination of Wet Gluten in Wheat Flour" and SB/T10248-95 "Methods for the Determination of Wet Gluten in Wheat Flour - Gluten Index Method" for the dehydration and determination of wet gluten in wheat flour. The complete machine is characterized by stable operation, stable performance, and convenient operation, making it an ideal substitute for similar imported instruments.



Technical specifications



Motor speed 6000 r/min, 3000 r/min
Sieve Box Orifice Plate Φ 0.6mm × 1.25mm
Working time 0.5~5min (adjustable)
Motor power 25W
Working voltage AC220V
Operating Weight 6kg



ST009 Gluten Dryer is a special instrument for measuring the dry gluten content of wheat flour. This instrument is used together with a gluten washing instrument and a gluten index instrument (gluten centrifuge).



Technical specifications



Operating temperature 180-200 ℃
Relative humidity ＜ 90%
Rated power 650W
Working power supply AC220V 50Hz
Operating Weight 2.5kg
Overall dimension 230× 250 × 110mm

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
