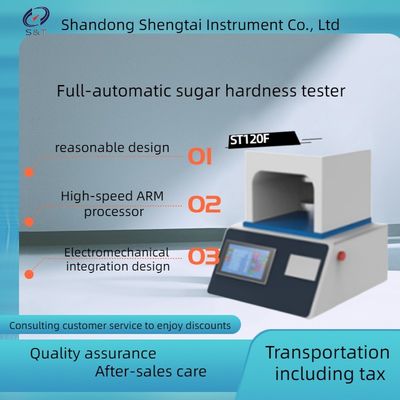

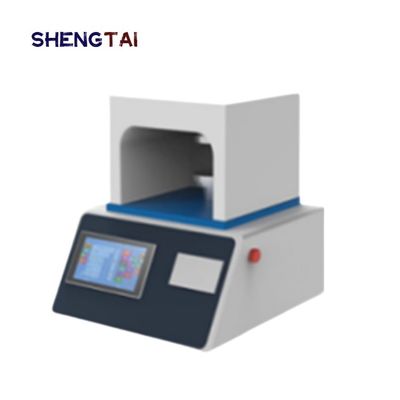

Fully automatic sugar hardness tester can display curves of pressure and deformation ST120F
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST120F | Measuring Range | 0-50MPa |
---|---|---|---|
Indication Error | ±1% | Variability Of Indication | <1% |
Working Stroke | (1 ~ 70)mm | Round Pressure Plate Diameter | 60mm |
Working Environment | Temperature (20 ± 10 )°C; Relative Humidity < 85% | ||
Highlight | fat analyzer machine,food testing equipment |
ST120F Automatic sugar cube hardness tester is our company according to the standard QBT 1214-2002 sugar cube and QB/T 5011-2016 sugar cube test method GB/T35888-2018 sugar cube regulation research and development using modern mechanical design concept and microcomputer processing technology for careful and reasonable design of a new type of high-precision intelligent tester, the use of advanced components, supporting components, single-chip microcomputer, reasonable structure and multi-functional design, configuration of liquid crystal Chinese display, It has various parameter testing, conversion, adjustment, display, memory, printing and other functions included in the standard.
Product features
1. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance;
2. The instrument adopts the upper pressure plate fixed type, high-precision load cell to ensure the rapidity and accuracy of the instrument force value data collection; High measurement accuracy.
3. Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable with powerful data processing function, can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, stable performance.
4. It can display the curve of pressure and deformation, and display information such as pressure resistance and deformation in real time;
5. Modular integrated thermal printer, fast printing speed and convenient paper change;
Product parameters
Standard printing | standard micro printer Automatic measurement Automatic thermal printing |
Measuring range | 0-50MPa |
Storage mode |
experimental results can store 199 sets of historical data, easy to query;
|
Indication error | ±1%; |
Variability of indication | <1% |
Resolution | 0.1N; |
Working stroke |
(1 ~ 70)mm
|
Round pressure plate diameter | 60mm |
Working environment |
temperature (20 ± 10 )°C; Relative humidity < 85%
|
Dimensions | (530x350x580) mm (L×W×H); |
Weight approx. | 55kg |
Result output: |
At the same time, it can be equipped with U disk output function, output to PC for long-term storage
|
Output format |
The output format of the resulting U disk is CSV or excel.
|
Data analysis function |
There are real-time display of compression curve function and data analysis management, saving, printing and other functions
|
Storage function |
It can store data on a microcomputer, and can be equipped with a U disk to output data
|
Display | Man-machine interface Chinese and English menu; LCD display |
Printout Modular integrated thermal printer |
Packing list
S/N | name | Quantity | unit | remarks |
1 | host | 1 | Set | |
2 | Power cord | 1 | pieces | |
3 | Fuse tube | 1 | pieces | Inside the seat10A |
4 | Instruction manual certificate | 1 | copy | |
5 | Warranty card | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
