Product Details:
Place of Origin: china
Brand Name: shandongshengtai
Model Number: SH107
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 5-8work days
Payment Terms: T/T
Supply Ability: 100 set per month

Reliable Transformer Oil Testing Equipment Interfacial Tension Tester

Description
Name: SH107Automatic Interfacial Tension Tester Power Supply: AC 220V±5%, 50 Hz
Measuring Range: 5~200 MN/m Ambient Temperature: 10℃~30℃
Power: 20VA
High Light:

pour point tester

,

transformer oil ppm testing kit

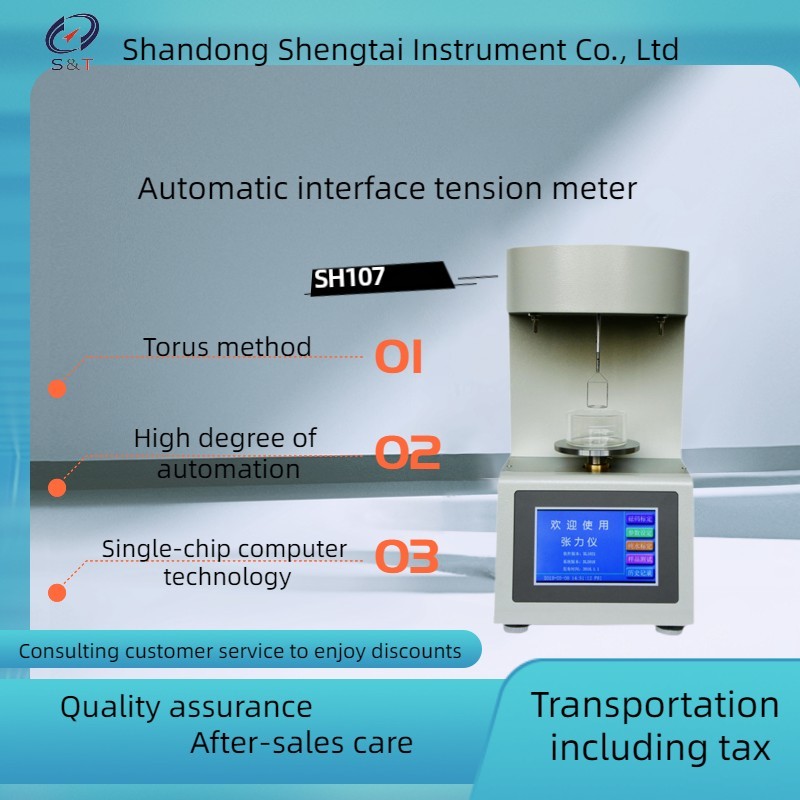

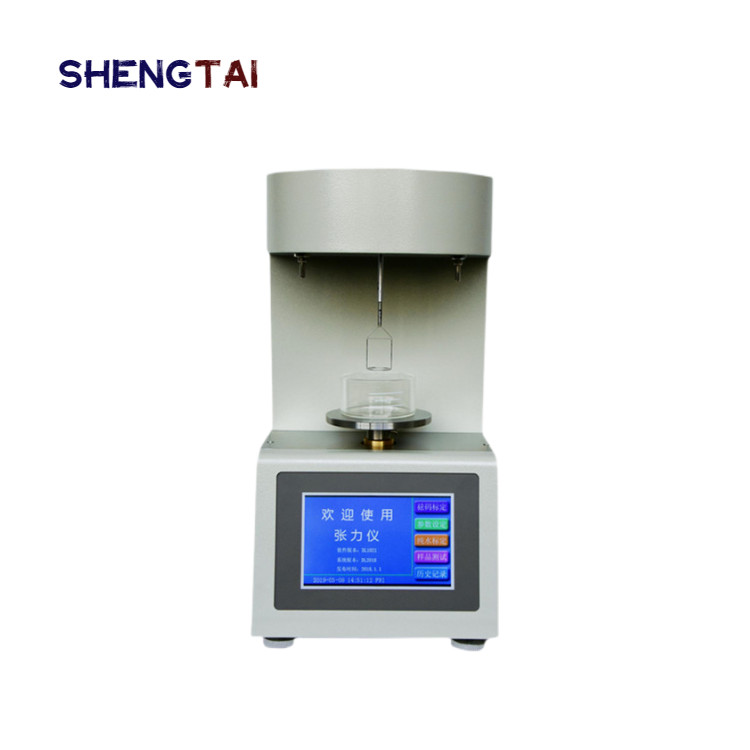

SH107 Automatic Interfacial Tension Tester is designed and made as standard of ASTMD 971 and GB/T6541 Standard Test Method for Interfacial Tension of Oil against Water by the Ring Method. It is used to determine the interfacial tension between mineral oils and water under non-equilibrium condition (Liquid-Liquid interface). It can also be used to determine interfacial tension of various liquids (Liquid-Gas interface).
Automatic Interfacial Tension Tester adopts large LCD screen and blank button, so it is automatic, reliable, and simple and with good repeatability. Turn on the instrument and operate the instrument as per the prompt of menu, and you can complete the test as per the prompt. The instrument has function of automatic temperature compensation, clock control, printing, and automatic average value calculation. It can connect to a computer through RS232 interface. The instrument is widely used for the determination of interfacial tension in electric power, petroleum, chemical, railway and other industries.

Technical parameter
1. Measuring range: 5~200 mN/m
2. Sensitivity: 0.1 mN/m
3. Accuracy: 0.1 mN/m
4. Resolution: 0.1 mN/m
5. Repeatability: 0.3%
6. Ambient temperature: 10℃~30℃
7. Relative humidity: 20%~75%
8. Power supply: AC 220V±5%, 50 Hz
9. Power: 20VA
