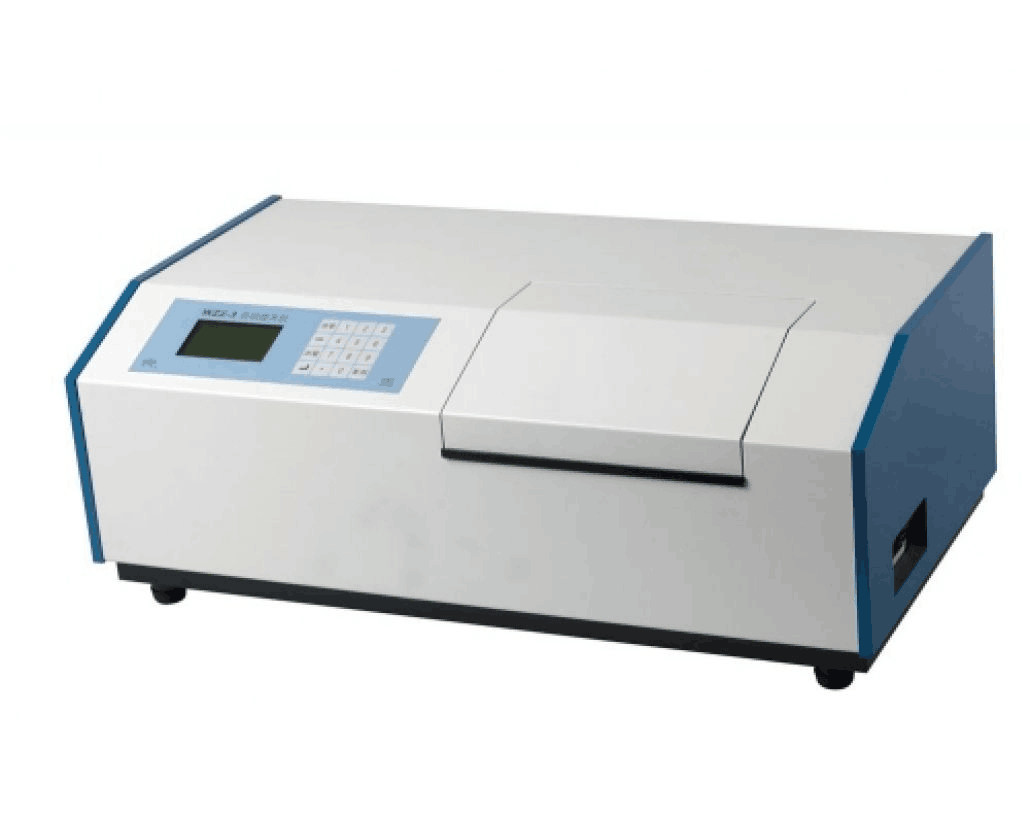

Measurement of optical rotation ST-12 automatic sugar detector photoelectric detection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST-12 | Minimum Reading | 0.001° 0.01°Z |
---|---|---|---|
Measuring Range | -45°~+45° -120°Z~+120°Z | Repeatability (maximum Deviation) | ≤0.002° ± 0.006°Z |
Minimum Transmittance Of Measurable Sample | 1% | ||
Highlight | soil science laboratory equipment,professional soil ph tester |
Main application:
ST-12 automatic sugar detector is an instrument for determining the optical rotation of substances. The concentration, purity, Brix or content of the sample can be determined by determining the optical rotation of the sample.
Widely used in sugar, pharmaceutical, drug testing, food, spices, monosodium glutamate, chemical, petroleum and other industrial production, scientific research, teaching departments, for laboratory analysis or process quality control.
Performance characteristics:
It adopts photoelectric detection and automatic servo mechanism control, digital display reading, can measure dark samples; It can also measure the sugar content, in line with GB/T35887-2018 white sugar test method.
Main technical parameters:
Minimum reading | 0.001° 0.01°Z |
Accuracy | ± (0.01° + measured value×0.05%) ± (0.03° + measured value ×0.05%)Z |
Measuring range | -45°~+45° -120°Z~+120°Z |
Repeatability (maximum deviation) | ≤0.002° ± 0.006°Z |
Minimum transmittance of measurable sample | 1% |
Overall size | 600×320×220mm |
Weight | 30kg |
