AC220V Gluten Tester Machine , Gluten Food Tester 0.5 ~ 5min Working Time
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST007A | Amount Of Washed Wheat Flour | 10.000.01g |
---|---|---|---|
Mixer Speed | 120r/min | Washing Liquid Flow Rate | 50-54ml/min |
Highlight | gluten food tester,fat analyzer machine |

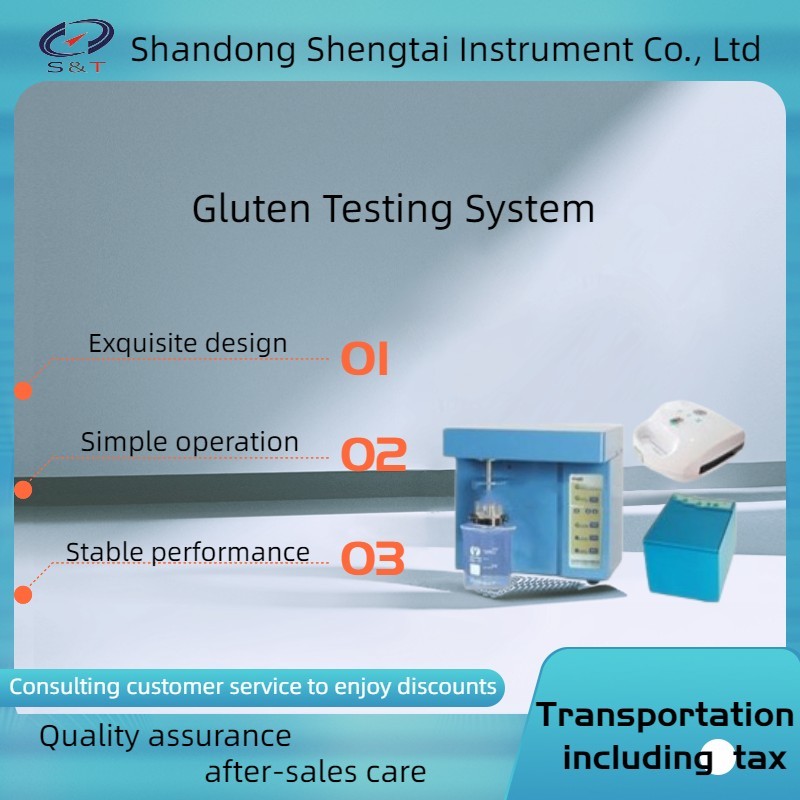

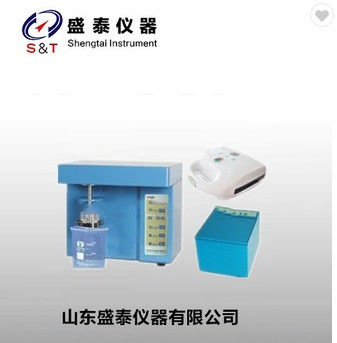

ST007AP Gluten Tester is used by grain processing and metering departments to determine the gluten content, gluten index, and gluten water retention in flour and wheat flour. It consists of a gluten washing instrument, an index tester (centrifuge), and a drying instrument. The technical indicators shall comply with the national standards GB/T14608-93 and SB/T10248-95.
Technical features:
Note: Single head wet gluten tester ST007AP=ST007A+ST008
1. The key switch of this instrument adopts a membrane soft key switch, which has a long service life. Other units use a ship type switch, which has been used many times and is prone to buttons becoming inflexible, requiring replacement.
2. The time setting can be arbitrarily set within the range specified in national standards.
3. The electrical control part of the instrument is installed on the side to effectively prevent some liquid from flowing into the circuit board and corroding the circuit board. This design principle can better extend the service life of the instrument. In some manufacturers, the electrical part is located at the bottom, and liquid can easily flow into the circuit board and corrode it. The accuracy and lifespan of the instrument will be greatly reduced.
Basic parameters:
Amount of washed wheat flour: 10.000.01g
Mixer speed: 120r/min
Washing liquid flow rate: 50-54ml/min
The gluten index meter (gluten centrifuge) (ST008) is a special instrument developed and produced in accordance with the provisions of GB/T5506.2-2008 "Methods for the Determination of Wet Gluten in Wheat Flour" and SB/T10248-95 "Methods for the Determination of Wet Gluten in Wheat Flour - Gluten Index Method" for the dehydration and determination of wet gluten in wheat flour. The complete machine is characterized by stable operation, stable performance, and convenient operation, making it an ideal substitute for similar imported instruments.
Technical specifications
Motor speed | 6000 r/min, 3000 r/min |
Sieve Box Orifice Plate | Φ 0.6mm × 1.25mm |
Working time | 0.5~5min (adjustable) |
Motor power | 25W |
Working voltage | AC220V |
Operating Weight | 6kg |
ST009 Gluten Dryer is a special instrument for measuring the dry gluten content of wheat flour. This instrument is used together with a gluten washing instrument and a gluten index instrument (gluten centrifuge).
Technical specifications
Operating temperature | 180-200 ℃ |
Relative humidity | < 90% |
Rated power | 650W |
Working power supply | AC220V 50Hz |
Operating Weight | 2.5kg |
Overall dimension | 230× 250 × 110mm |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
