The dough stretcher ST150 is accurate and reliable in detecting the extension resistance and extension length of dough
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST150 | Motor Power | 20W + 15W+10W |
---|---|---|---|
Striper Rotation Speed | 15 ± 1r/min | Power Supply | 220V, 50Hz |
Horizontal Coordinate Travel Speed | 0.65 ± 0.05cm/s | Unit Resistance | 12.3 ± 0.3 MN/EU |
High Light | flour testing equipment,gluten tester machine |

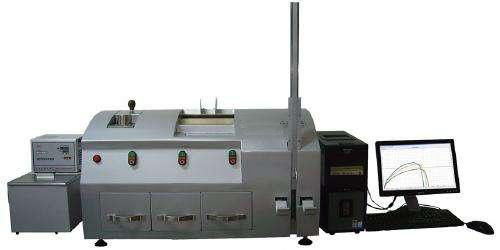

ST150 Stretcher is a reliable testing instrument for measuring the strength of flour and the improvement effect of flour improvers (gluten enhancers). It measures the extension resistance and length of dough, analyzes the collected data by a computer, and draws an extension diagram to calculate the dough extensibility, extension resistance, curve area, tensile ratio, and other indicators, thereby evaluating the quality of flour and the improvement effect of flour improvers.
The analysis of the extension curve of different awakening time can guide the reasonable addition of flour improver, the production of bread, Mantou and other foods, and determine the appropriate awakening time.
The measurement of dough extension resistance using a tensile tester abandons traditional mechanical lever force measurement and mechanical drawing mechanisms. A computer collects digital signals and performs drawing and analyzes data. The measurement is precise and accurate, with good reliability, and good reproducibility of test results. Based on the experimental analysis results, it is possible to determine the quality of flour, determine or analyze the improvement effect of improvers in flour, and guide the addition amount of improvers.
It is precisely because this testing instrument abandons the mechanical lever force measurement and mechanical drawing mechanisms commonly used in traditional instruments, and the measurement of dough extension resistance is converted from dedicated digital sensors to digital signals, which are collected, plotted, and analyzed by a computer. Therefore, the test results are more accurate, reliable, and more convenient to operate, and more economical.
This instrument has been widely used in flour mills, food factories, seed breeding and promotion, grain storage and management departments, grain and oil research departments, and other industries, for quality control and scientific research.
Instrument characteristics:
Using high-performance and high-precision weighing sensors to measure dough tensile resistance ensures high reliability.
The computer collects and analyzes data accurately and quickly.
Automatic zero calibration by computer, easy to use.
The data processing software attached to the instrument automatically analyzes the data and provides an analysis report.
5. The extension curves of five samples can be compared simultaneously.
Save consumables such as drawing paper and pens.
7. Print the report as needed.
The analysis result (database) format is in Access database format, which can be easily viewed by Microsoft Access
Main parameters of the instrument:
Motor power: 20W + 15W+10W
Striper rotation speed: 15 ± 1r/min
Power supply: 220V, 50Hz
Lamian Noodles drawing mechanism descending speed: 1.45 ± 0.05cm/s
Dough mass: 150g
Horizontal coordinate travel speed: 0.65 ± 0.05cm/s
Rotational speed of ball kneader: 83 ± 3r/min, self stop after 20r
Unit resistance: 12.3 ± 0.3 MN/EU
Instrument size: 1000 *700*700mm Weight: about 130kg
Motor power | 20W + 15W+10W |
Striper rotation speed | 15 ± 1r/min |
Power supply | 220V, 50Hz |
Lamian Noodles drawing mechanism descending speed | 1.45 ± 0.05cm/s |
Dough mass | 150g |
Horizontal coordinate travel speed | 0.65 ± 0.05cm/s |
Rotational speed of ball kneader | 83 ± 3r/min, self stop after 20r |
Unit resistance | 12.3 ± 0.3 MN/EU |
Instrument size: 1000 *700*700mm Weight: about 130kg |
