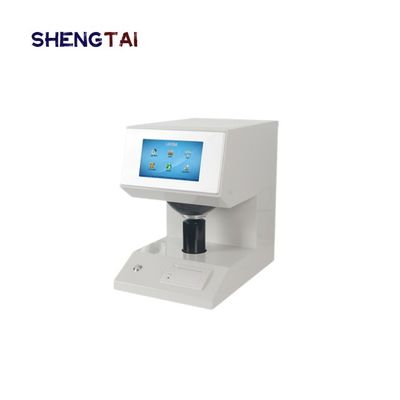

ST001E Measurement of starch whiteness using a fully automatic colorimeter with d/o illumination observation

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST001E
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST001E Working Power Supply AC220V±10% 50HZ
Stability Of Measured Values ≤ 0.1 Within 30 Minutes Indication Accuracy Chromaticity Coordinate 0.0001, Others 0.01
Repetitiveness Rx, Ry, And Rz S ≤ 0.10 Chromaticity Coordinates S ≤ 0.0010 R457 Values S ≤ 0.10
High Light

flour testing equipment

,

gluten tester machine

Leave a Message
Product Description

ST001E Automatic Colorimeter is used to measure the whiteness, yellowness, color, and color difference of objects. It can also measure the opacity, transparency, light scattering coefficient, light absorption coefficient, and ink absorption value of paper. It is widely used in flour, starch, mineral powder, papermaking, printing, ceramics, chemical industry, textile printing and dyeing, building materials, grain, salt making, and other industries.



The specific functions of the instrument are as follows:



1. Measure the color and chromatic aberration reflected by the object, which can be displayed or printed: diffuse reflection factors Rx, Ry, Rz, stimulus values Y10, X10, Z10, chromaticity coordinates x10, y10; Brightness L *, chromaticity a *, chromaticity b *, chromaticity C * ab, hue angle h * ab, main wavelength λ D. Excitation purity Pe, color difference Δ E * ab, poor brightness Δ L *, poor chromaticity Δ C * ab, tone difference Δ H * ab, Hunter Systems L, a, b.

2.Measuring ISO brightness (blue brightness R457) and Z brightness (Rz) can measure the fluorescence whiteness generated by the emission of fluorescent substances in fluorescent whitening samples.

3. Measure CIE whiteness (Ganz whiteness W10 and color deviation value TW10).

4. Measure the whiteness of ceramics.

5. Measure the whiteness of building materials and non-metallic mineral products.

6. Measure Hunter whiteness WH.

7. Measure the yellowness YI.

8. Measure the opacity OP of the sample

9. Measure the transparency T of the sample

10. Measure the light scattering coefficient S of the sample

11. Measure the light absorption coefficient A of the sample.

12. Measure the ink absorption value.

Executive standards



GB/T22427.6 Determination of starch whiteness

GB/T 23774 "General Method for the Determination of Whiteness of Inorganic Chemical Products"

GB/T 13025.2 "General Test Methods for the Salt Industry, Determination of Whiteness"

GB/T 2913 Test Method for Whiteness of Plastics

GB/T 5950 "Measurement Method for Whiteness of Building Materials and Non metallic Mineral Products"

GB/T 3979 "Methods for Measuring the Color of Objects"

GB/T 8424.3 "Textiles - Tests for Color Fastness - Calculation of Color Differences"

GB/T 2679 "Paper - Determination of Transparency"

GB/T 9338 "Instrumental Method for the Determination of Relative Whiteness of Fluorescent Brighteners"

GB/T 11186 "Methods for Measuring the Color of Paint Films"

GB/T 9984.5 "Test methods for sodium tripolyphosphate for industrial use - Determination of whiteness"

GB/T 22427.6 "Determination of starch whiteness"

GB/T 13835.7 Test Method for Brightness of Rabbit Hair Fibers

GB/T 12911 "Paper and Board-Determination of Ink Absorption"

GB/T 4739 "Method for Determination of Chromaticity of Household Ceramic Pigments"

GB/T 11942 "Colorimetric Measurement Methods for Colored Building Materials"

QB/T 2789 "General test methods for cosmetics - Determination of tristimulus value and color difference △ E *"

QB/T 1503 "Determination of Whiteness of Household Ceramics"

Test Method for Yellow Index of Plastics (HG/T 3862)

FZ-T50013 "Test method for whiteness of cellulose chemical fibers - Blue light diffuse reflectance factor method"



Main performance parameters

1.The instrument adopts a 7.0 inch, 65k color, high-definition color LCD touch screen, with a simple and friendly human-computer interaction interface, which is simple and convenient to operate.

2.The instrument has a compact structure and novel appearance. One-click operation abandons the old manual rotation of the handwheel, automatic switching of optical paths, and automatic positioning, truly realizing fully automatic testing, which not only improves testing efficiency, but also greatly reduces human error.

3.Using a 32-bit MCU microcomputer processor, high-speed operational amplifier chips, and high-precision ADC converters, advanced circuit design effectively ensures the accuracy and stability of measured data.

4. The instrument simulates D65 illumination. CIE 1964 supplementary chromaticity system and CIE 1976 (L * a * b *) color space color difference formula are used.

5. The instrument uses d/o illumination to observe geometric conditions. The diameter of the diffusion sphere is 150 mm, and the diameter of the test hole is 30 mm. A light absorber is provided to eliminate the impact of specular reflection of the sample.

The instrument is embedded with a serial port thermal printer, which eliminates the need for ink and ribbons, has no noise during operation, and has fast printing speed.

6.This instrument is equipped with corresponding communication interface, which can cooperate with microcomputer software for communication.

7. The instrument has power off protection, and calibration data will not be lost after power off.

8. Can store

9 reference samples.

10. It has data non-linear processing and data smoothing functions, and can automatically correct multiple points.

11. Standard serial RS232 data communication interface, which can be connected to a micro printer.



Main technical parameters



Parameter Item Technical indicators
Working power supply AC220V±10% 50HZ
Indication accuracy Chromaticity coordinate 0.0001, others 0.01
Stability of measured values ≤ 0.1 within 30 minutes
repetitiveness Rx, Ry, and Rz s ≤ 0.10 Chromaticity coordinates s ≤ 0.0010 R457 values s ≤ 0.10
Sample size Test plane not less than Φ 30mm, thickness not exceeding 40mm
Instrument size (length * width * height)mm 390*280*410
Weight About 22kg



Configuration List



S/N Name Quantity unit remarks
1 Whiteness meter host 1 set
2 Black cylinder 1 Piece
3 Standard Whiteboard 2 piece
4 Light bulb 2 piece
5 Special powder press 1 set
6 Printing paper 2 roll
7 Power cord 1 piece
ST001E Measurement of starch whiteness using a fully automatic colorimeter with d/o illumination observation 0ST001E Measurement of starch whiteness using a fully automatic colorimeter with d/o illumination observation 1
