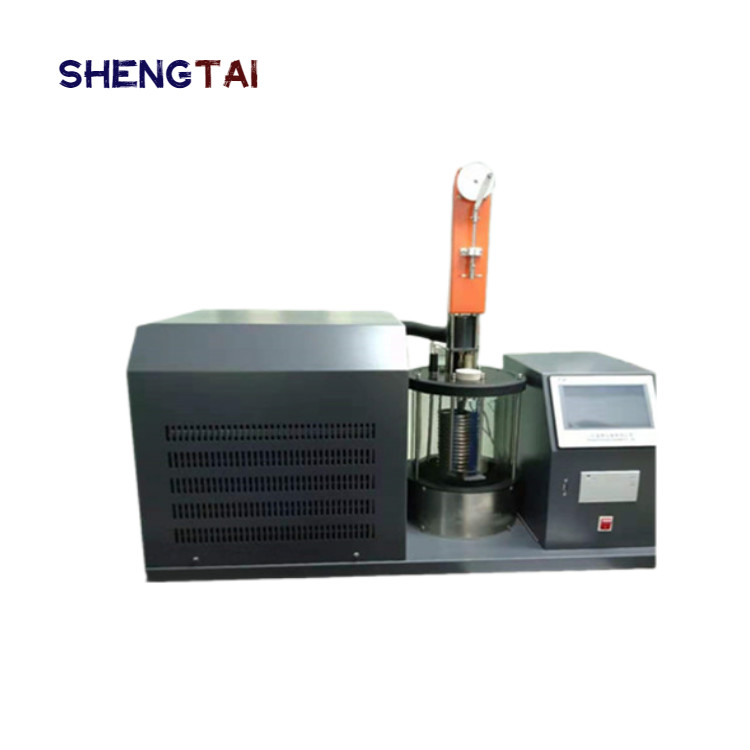

Fully automatic industrial phenol and phenol crystallization point tester SH406 Chemical Analysis Instruments
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH406 | Working Cold Tank | Double Vacuum Glass Bath. |
---|---|---|---|
Cold Tank Temperature Control | +80℃ ~ -10℃ | Control Accuracy | ±0.1℃ |
Working Power Supply | AC220V±10%;50 Hz. | Relative Humidity | ≤85%. |
Ambient Temperature | ≤30℃ | Power Consumption Of The Whole Machine | About 1500W |
Highlight | chemical analysis equipment,chemical analysis machine |
SH406 Automatic benzene crystallization point tester is applicable to standard GB/T3145-1982 benzene crystallization point determination, GB/T 3069.2-2005 naphthalene crystallization point determination, GB/T 3710-2009 industrial phenol, phenol crystallization point determination, GB/ T7333-2005 organic chemical products crystallization point determination, GB/T618-2006 chemical reagent crystallization point determination.
Plasticizers -- Determination of crystallinity point
(benzene crystallization point meter, phenol crystallization point meter, phenol crystallization point meter, freezing point meter, plasticizer crystallization point meter)
Automatic Crystallization Point Tester
Equipment features:
the embedded system design, the whole process of the test automatic detection;
Color touch screen;
The test results can be stored;
You can view historical data;
Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.
Technical parameters
working cold tank | double vacuum glass bath. |
cold tank temperature control | +80℃ ~ -10℃ |
control accuracy | ±0.1℃ |
Bath liquid stirring | automatic stirring motor, power 6W 1200r/min |
working power supply | AC220V±10%;50 hz. |
Refrigeration system | new refrigeration compressor. |
sample mixing | synchronous reducer motor, 60 times/min. |
Ambient temperature | ≤30℃ |
relative humidity | ≤85%. |
Power consumption of the whole machine | about 1500W |
Instrument size: 680 * 380 * 480mm Weight: 35kg |
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Crystallization point test tube | 1 | set | |
3 | Temperature sensor | 2 | piece | |
4 | Power cord | 1 | piece | |
5 | instruction | 1 | copy | |
6 | Packing list | 1 | copy | |
7 | Certificate warranty card | 1 | copy |
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
