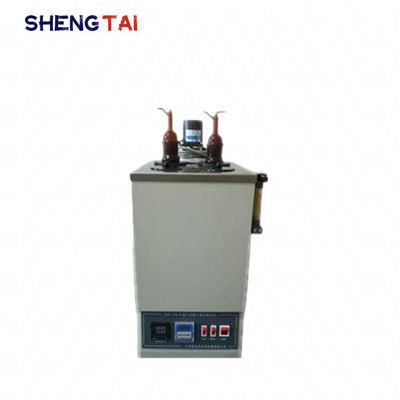

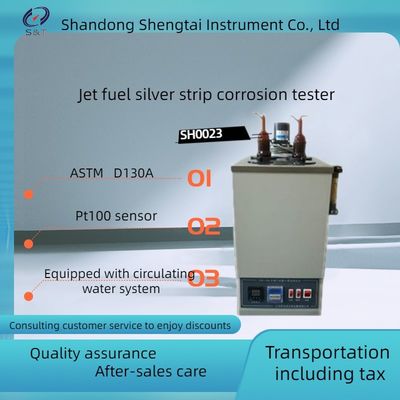

ASTMD130A Ip227 Silver Strip Corrosion Tester For JetFuel Chemical Analysis

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH0023
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH0023 Power Supply AC(220±10%)V, 50 Hz
Temperature Sensor RTD, Pt100 Work Rate 1500W
Temperature Range Room Temperature ~ 120℃ Time Controlling Range 1 Minute~24 Hours, Can Be Set At Will
Number Of Test Holes 4 Holes Environmental Requirements Temperature 5 ~ 40℃
Relative Humidity ≤ 85%
High Light

Jet fuel corrosion tester

,

silver sheet corrosion tester

,

Corrosion Tester For JetFuel

Leave a Message
Product Description

ASTMD130A,Ip227 Silver Strip Corrosion Apparatus-Silver Strip Corrosion Tester For JetFuel Chemical Analysis Instruments



SH0023 Jet fuel silver sheet corrosion tester, in line with SH/T0023 "jet fuel silver sheet corrosion determination method" test method requirements, in line with ASTM D130A, IP 227, suitable for evaluating jet fuel corrosion tendency of aviation turbine engine fuel system silver parts.

Silver strip corrosion tester for jet fuel

Silver Strip Corrosion Apparatus-Silver Strip Corrosion Tester for Jet Fuel

Jet Fuel Silver Strip Corrosion Tester

IP227 Jet Fuel Silver Strip Corrosion Tester

ASTM D130A,Ip 227 Jet Fuel Silver Strip Corrosion Tester

Functional features

1. Conduct 4 groups of experiments simultaneously

2. Equipped with circulating water system

Main technical specifications

Model

SH0023 Jet fuel silver plate corrosion tester



Power supply AC(220±10%)V, 50 Hz
Work rate

1500W



Temperature sensor

RTD, Pt100



Temperature range

Room temperature ~ 120℃



Temperature controlling accuracy

±0.5ºC



Time controlling range

1 minute~24 hours, can be set at will



Sample testing positions

Four positions



Number of test holes

4 holes



Environmental requirements

temperature 5 ~ 40℃



Relative humidity

≤ 85%



Power supply

AC(220 ±10%)V, 50 Hz



Instrument size 480mm×360mm×550mm
weight

20kg





Silver flake corrosion cuvettes (imported from ASTM Company in the United States), in line with SH/T0023 "Jet Fuel Silver Flake Corrosion Test Act", ASTM D3241 / IP323, ASTM D1660 and other standards. Used to assess the corrosion propensity of jet fuel to silver components of aircraft turbine engine fuel systems.   The silver sheet corrosion cuvettes are copied from full-color processing and consist of 5 typical test silver sheets representing the tarnished surface and the degree of increased corrosion. For protection, these corroded standard swatches are embedded in plastic plates. Instructions for corroding the standard swatches are given in the packaging of each standard swatch. To avoid possible fading of the swatch, corroded standard swatches should be stored away from light.

Colorimetric description

0 is no discoloration: except for a slight tarnishing in parts, it is almost the same as a newly polished silver sheet

1 is a mild discoloration: light brown or silvery-white fade;

2 is medium discoloration: peacock screen color, such as blue or purple red or medium and deep wheat yellow or brown;

3 is mild blackening: black or gray spots and patches on the surface, or a uniform black deposition film;

4 for blackening: uniform depth blackening, with or without peeling phenomenon

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Glass support 2 piece
3 test tube 2 piece
4 Thermostatic bath cover 2 piece
5 Silver flake 4 piece
6 Silver color comparison plate import 1 piece
7 power cord 1 piece
8 instruction manual 1 copy
9 Packing list 1 copy
10 Certificate warranty card 1 copy

ASTMD130A Ip227 Silver Strip Corrosion Tester For JetFuel Chemical Analysis 0

ASTMD130A Ip227 Silver Strip Corrosion Tester For JetFuel Chemical Analysis 1

ASTMD130A Ip227 Silver Strip Corrosion Tester For JetFuel Chemical Analysis 2
