10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02

  • 10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02
  • 10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02
  • 10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02
Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH407
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sulfur Measurement Range 10ppm ~ 5% Precision A: Repeatability (R): < 0.02894(X+0.1691);
Reproducibility (R) < 0.1215(X+0.05555). Sample Size (2 ~ 3)ml(equivalent To The Sample Depth Of 3mm ~ 4mm)
Measurement Time 60 Seconds, 120 Seconds, 240 Seconds, 300 Seconds, 600 Seconds, Set At Will. Calibration (calibration) Samples 12 (10ml/ Piece).
High Light

10ppm Fluorescent Sulfur Analyzer

,

ASTMD4294-02 Fluorescent Sulfur Analyzer

,

10ppm carbon sulfur analyzer
Leave a Message
Product Description

Fluorescent sulfur analyzer NATIONAL standard ASTMD4294-02 of the United States.

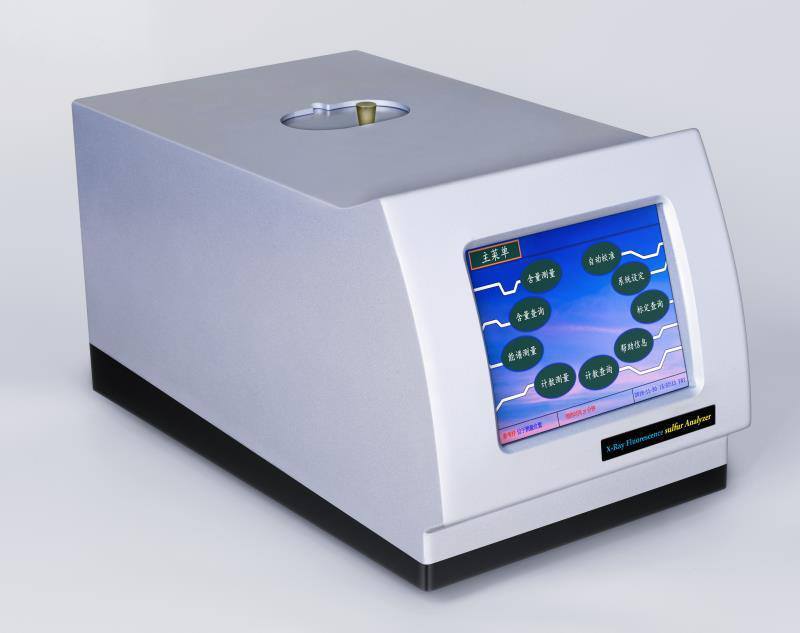

SH407 X-ray fluorescence sulfur analyzer



The SH407 X-ray fluorescence sulfur analyzer adopts the principle of energy dispersion and the mechanical and electrical integrated microcomputer design, which makes the analysis fast and accurate.

Its repeatability, reproductibility all accord with national standard GB/T 17040-2008 "determination method of sulfur content of petroleum products (method of energy dispersive X-ray fluorescence spectrometry)" and GB/T 11140-1989 "determination method of sulfur content of petroleum products (method of X-ray spectrometry)" relevant requirement, at the same time fully accord with the requirement of NATIONAL standard ASTMD4294-02 of the United States.

The SH407 fluorescence sulfur analyzer mainly measures the total sulfur mass percentage content of crude oil, petroleum, heavy oil, diesel oil, kerosene, gasoline and naphtha, as well as the total sulfur or sulfur compound content of coal chemical products (such as primary benzene) and other liquid samples.

It is also possible to determine the total sulfur or SO3 content in fine powder samples, etc.



10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02 0





I. Main technical features of X-ray fluorescence sulfur analyzer



1. The fluorescence intensity ratio analysis method is adopted to detect wide varieties, wide range, fast analysis speed and low consumption of standard samples.

2. Adopt electromechanical integrated microcomputer design, liquid crystal display, operation interface, man-machine dialogue, with automatic diagnosis function, judge the working state and electrical parameters of the instrument, automatic correction of temperature and air pressure, hydrocarbon ratio (C/H) can also be modified.

3. Disposable Mylar membrane sample cup can avoid cross contamination.

4, safe X-ray protection measures, after strict testing, no personal and group X-ray power radiation damage.



Ii. Main technical parameters and indicators of X-ray fluorescence sulfur analyzer



Name X-ray fluorescence sulfur analyzer
Sulfur measurement range 10ppm ~ 5%
Precision A: Repeatability (R): < 0.02894(X+0.1691);
B: Reproducibility (R): < 0.1215(X+0.05555)
Sample size (2 ~ 3)ml(equivalent to the sample depth of 3mm ~ 4mm).
Measurement time 60 seconds, 120 seconds, 240 seconds, 300 seconds, 600 seconds, set at will.
Sample measurement automatic measurement of single sample, arbitrary setting of measurement times 2, 3, 5, 10 and 50, and giving the average value and standard deviation at the end of measurement.
Calibration curve number The instrument can store 9 calibration curves, 5 of which are one-degree linear lines and 4 of which are binomial parabola.
Calibration (calibration) samples 12 (10ml/ piece
Power supply

AC220V±20V, 50Hz;

Rated power 30W 9.
External dimension: 620mm×530mm×400mm(length × width × height).
Weight 30kg (net)




Clear single pack box of X-ray fluorescence sulfur analyzer

1. Host of X fluorescence oil sulfur analyzer

2. One three-core power cord each

3. 200 sets of sample cups

4. 2 boxes of sample cup film (100 pieces/box)

5. Oil leakage prevention parts (one set of 2 pieces)

6. Multi-functional pressing pieces (two pieces in one set) : 1 set

7. Two pieces of printing paper

8.Calibration (calibration) 1 set of standard samples



10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02 1



Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.



10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02 2

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.



10ppm Fluorescent Sulfur Analyzer NATIONAL Standard ASTMD4294-02 3

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
