ASTM D 86 Automatic Distillation Range Boiling Range Tester For Alcohol Products

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH6536
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH6536 POWER AC220V±10% 50Hz
Cooling Power 0.5KW Heating Power 2KW
Steam Temperature 0-400℃ Refrigeration Temperature 0-60℃
Temperature Measurement Accuracy ±0.1℃ Start Heating To The Initial Distillation Point 5 ~ 15 Minutes
Distillation Rate 2 ~ 10ml/min
High Light

Automatic distillation boiling range tester


ASTM D86 Boiling Range Tester


Alcohol Products Boiling Range Tester

Leave a Message
Product Description

ASTMD 86 Automatic Distillation Range Boiling Range Tester Standard Method For Distillation Range Of Alcohol Products

SH6536 Automatic distillation boiling range tester adopts color liquid crystal display screen, Chinese menu man-machine dialogue, guide operation, the determination process is fully automated.

According to the national standard GB/T6536 distillation of petroleum products determination method and GB/T6536, the ASMT D86 standard GB/T7534-2004 industrial volatile organic liquid boiling range determination of distillation range determination of methanol and alcohol products standard method to design and manufacture, apply to under atmospheric pressure boiling point, and stable chemical performance in the process of distillation of organic liquid (such as hydrocarbons, esters, alcohols, ketones, ethers, and similar organic compounds).

Standard:ASTM D86 ASTM D850 ASTM D107

Automatic Diesel Distillation Apparatus Boiling Range Tester

Automatic Distillation Range Testing Device/Boiling Point Range Analyzer

ASTM D86 Automatic Distillation range Tester

Automatic Distillation Boiling Range Tester (Two hole)

Automatic Fuel Oil Solvent Oil Boiling Range Tester

ASTM D86 Automatic Diesel Distillation Apparatus Boiling Range  Tester

At the same time, it is suitable for the determination of distillation range of petroleum products, industrial volatile organic liquids and organic solvents for raw materials.

Adopts embedded computer, imported IPC, 12.1 inch large LCD touch screen, friendly man-machine dialogue interface, convenient test and operation.

Using single chip microcomputer and intelligent control technology, the heating and cooling of distillation test process, distillate liquid level tracking, distillation rate control, recovery liquid volume control, temperature recording, test results printing, etc., are all automatically completed.

Boiling Range of Organic Liquid Tester boiling spread equipment distillation range analyzer

Automatic petroleum product distillation tester ASTM D86 ASTM D850


1, Power AC220V±10% 50Hz
2, Heating power 2KW
3, Cooling power 0.5KW
4,Indoor working environment temperature: 10-38°C (recommend: 10-28℃); humidity≤70%.
5, Steam temperature 0-400℃
7, Refrigeration temperature 0-60℃
8, Refrigeration accuracy



9, Temperature measurement accuracy ±0.1℃
10, Volume accuracy ±0.1ml
11, Fire alarm extinguish by nitrogen (prepared by customer)
12, Sample state suitable for natural gasoline (stable light hydrocarbon), motor gasoline, aviation gasoline, jet fuel, special boiling point
solvent, naphtha, mineral spirits, kerosene, diesel fuel, gas oil, distillate fuels.


Main Performance Characteristics

Second, functional characteristics

● The instrument by the industrial computer automatic measurement and control test process, full touch 10.4 inch LCD display test,

● Display temperature and volume data and related curves throughout the process.

● The liquid level tracking system is composed of high subdivision step American linear motor and imported photoelectric tracker.

● Cold tube temperature, measuring cylinder chamber temperature, using mechanical refrigeration, compressor for foreign famous brand manufacturers.

Internal circulation of the cooling medium.

Cooling water can be added once every 3 years.

● Electric distillation furnace heating automatic control, so that the sample from the initial distillation point to 95% of the flow rate, control within 4 ~ 5ml per minute.

● Can provide the initial and final distillation point temperature value, can provide the temperature value of each percentage point and flow rate.

● Automatic detection of local atmospheric pressure, automatic correction to the standard atmospheric pressure temperature.

● You can choose to stop the test according to steam temperature or recovery volume.

● The instrument can store, query, print test results.

Temperature range room temperature ~ +400°C accuracy ±0.1°C
Display accuracy 0.1℃ steam temperature sensor: Germany import PT100 platinum resistance
Start heating to the initial distillation point 5 ~ 15 minutes
Distillation rate 2 ~ 10ml/min
The temperature of the initial distilling point the optical fiber sensor

III. Technical parameters

1. Temperature range: room temperature ~ +500°C accuracy ±0.1°C

2. Display accuracy: 0.1℃ steam temperature sensor: Germany import PT100 platinum resistance

3. Start heating to the initial distillation point: 5 ~ 15 minutes

Distillation rate (flow rate from initial distillation point to 95% recovery) : 2 ~ 10ml/min (adjustable)

5. The remaining amount of 5ml in the flask to the end point: no more than 5 minutes

6. The temperature of the initial distilling point is detected by the optical fiber sensor

7. Recovery volume measurement range: 0 ~ 100ml

8. Measuring accuracy of recovery volume: ± 0.1ml

9. Volume measurement: liquid level tracking system, mainly composed of stepper motor and optical fiber liquid level sensor, motor step 0.01ml each time

10. Cooling system: Compressor refrigeration

11 cold bath temperature: -5 ~ 60℃

12. Recovery chamber temperature: 0 ~ 40℃

13. The equipment has the function of automatic detection of local atmospheric pressure and automatic correction of temperature under standard atmospheric pressure

14. With fire extinguishing system, in case of fire, manual nitrogen extinguishing can be used to prevent the safety accident of heating distillation flask bursting (the nitrogen bottle needs to be provided by the customer)

15. Equipped with safe temperature setting function, the temperature range from room temperature to 400℃ can be set arbitrarily. If the heating temperature exceeds the set safe temperature, the instrument can automatically stop the experiment and blow heat dissipation immediately.

16. The instrument can automatically detect and display the temperature and flow time at every 5% volume point.

17. The instrument can automatically detect the temperature and occurrence time of the initial distillation point and the final distillation point.

18 can choose a variety of automatic stop mode, such as the final distillation point automatic stop, set to the specified temperature to stop, set to the specified volume to stop.


S/N Name Num Unit remarks
1 Host 1 set
2 Sensor 1 piece
3 Distilling flask 2 piece 125ml
4 Measuring cylinder 2 piece 100ml
5 Heating support plate 2 set
6 deflector 2 set
7 Zeolite 1 set
8 Power cord 1 piece
9 Fuse tube 1 piece 10A
10 Instruction manual 1 Copy
11 Packing list 1 copy
12 Certificate of qualification 1 copy

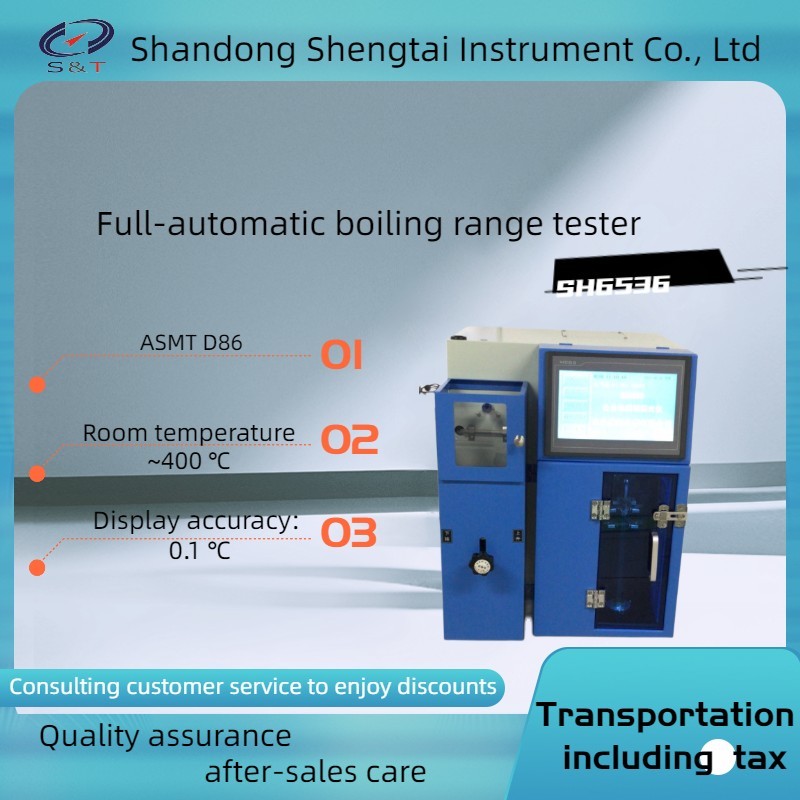

ASTM D 86 Automatic Distillation Range Boiling Range Tester For Alcohol Products 0

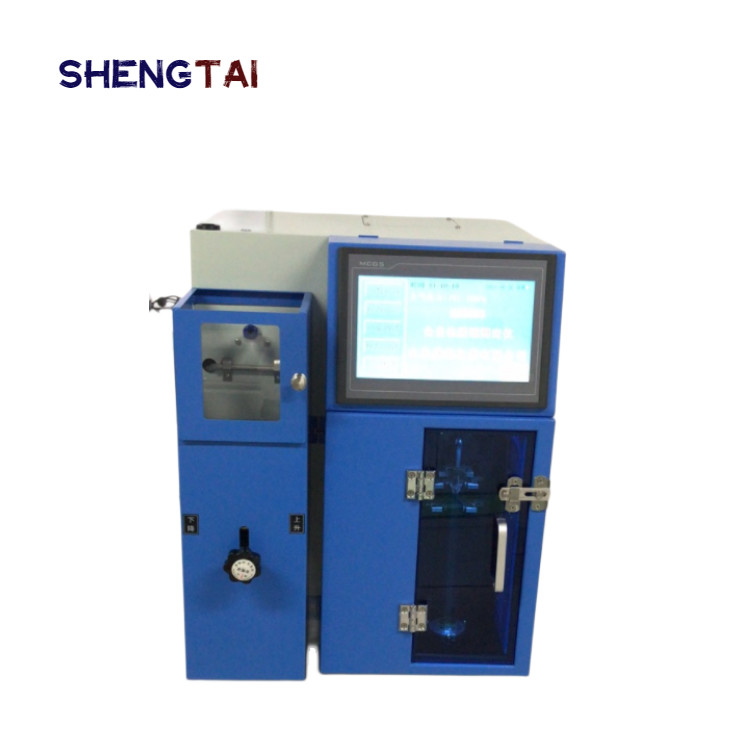

ASTM D 86 Automatic Distillation Range Boiling Range Tester For Alcohol Products 1
