ST123B Automatic Grease Smoke Point Meter For The Smoke Point Value Of Vegetable Oil
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|MODEL||ST123B||Working Power Supply||AC220V±10%, 50Hz|
|Temperature Measurement Range||Room Temperature ~ 400℃||Accuracy||0.5%|
|Reproducibility||≤4℃||Detection Method||Photoelectric Sensor|
Automatic Grease Smoke Point Tester,
Auto Grease Smoke Point Meter,
Auto Grease Smoke Point Tester

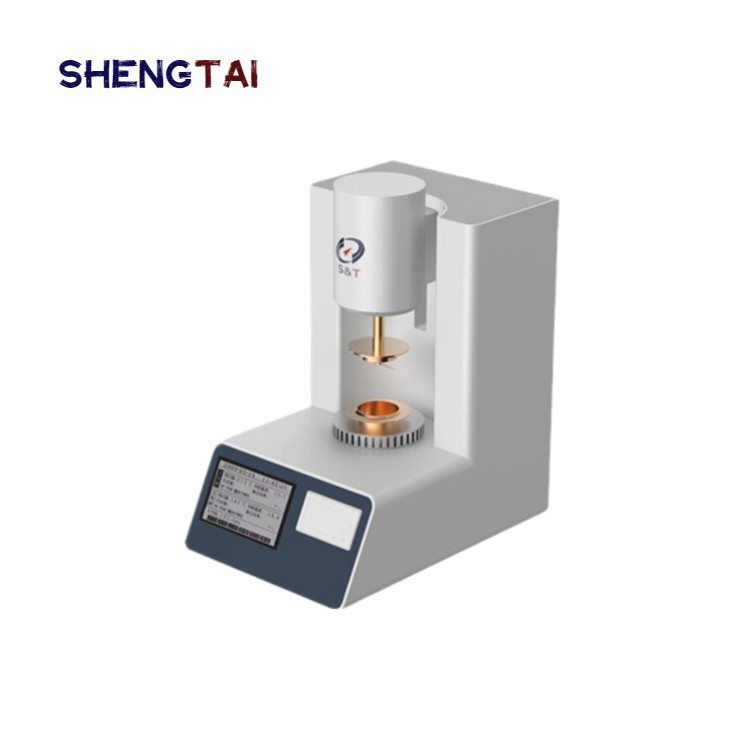

ST123B Automatic Grease Smoke Point Meter Can Automatically Measure The Smoke Point Value Of Vegetable Oil
ST-123B Automatic smoke point tester is based on the national standards GB/T20795-2006 " vegetable oil smoking point tester Determination" This instrument adopts LCD screen to display .It can preset smoke point temperature and sample mark number. It has menu that can prompt and guide. It adopts simulation tracking to display the function curve of temperature rising and test time It has the functions of English operation prompt,test date,test time and other parameters. This instrument can automatically detect the smoke point and print test data.The test arm automatically rise up and lower down. Widely used in quality control, import and export inspection, plant oil processing, plant oil storage and transportation, food processing, scientific research, agricultural breeding, the school ,plant oil smoking point testing department and so on.
edible oil smoke point tester vegetable oil smoking point tester
Standard: GB/T20795-2006 Determination of smoke point of vegetable oil

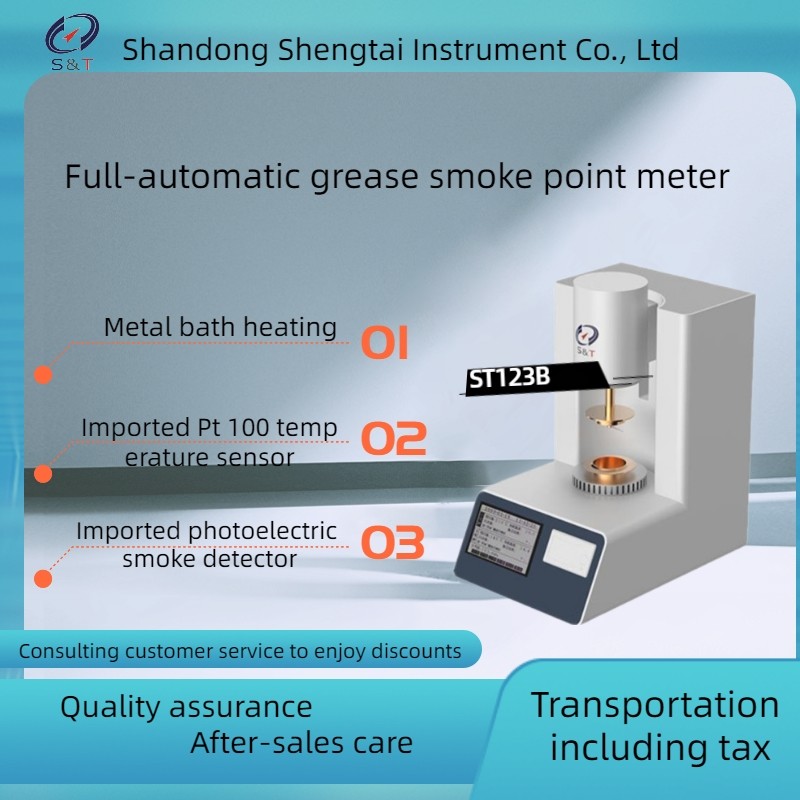

1. Touch screen display: 7-inch touch screen display;
2. Heating method: metal bath heating.
3. Detection method: imported photoelectric smoke detector.
4. Standard micro-printer automatic measurement automatic thermal printing
5. Wavelength requirement: 380nm-780nm
6. Temperature sensor: imported Pt 100 temperature sensor
7. Standard micro-printer automatic measurement automatic thermal printing
Major technical parameter:
2.Temperature measurement:Range:room temperature～400℃；
3.Heating rate:correspond with GB/T20759；
4.Storage method: the experimental results can store 199 sets of historical data for easy query;
5.Results output: also equipped with U disk output function, output to PC terminal for long-term storage
6.Output format: The resulting U disk output format is CSV or excel.
7.Data extension: laser printer interface, can link HP1108 laser printer (optional).
8.Data protection: with the date password setting function.
9.Standard printing: a standard micro-printer for automatic measurement and automatic thermal printing
10.Test mode:Photoelectric sensor,that wavelength is 430nm；
11.Remote upgrade: with TCP network transmission function, can be the software remote upgrade later
|Name||Automatic plant oil smoke point tester|
|working power supply||AC220V±10%, 50Hz|
|temperature measurement: range||room temperature ~ 400℃;|
|heating rate||in line with GB/T20759 standard|
|detection method||photoelectric sensor|
Using embedded system design
|the whole process of test automatic detection; The test results can be stored; It has printing function.|
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
