Lubricating Oil High Temperature Foam Tester 2 Samples 150 ± 0.1 ℃ ASTM D6082

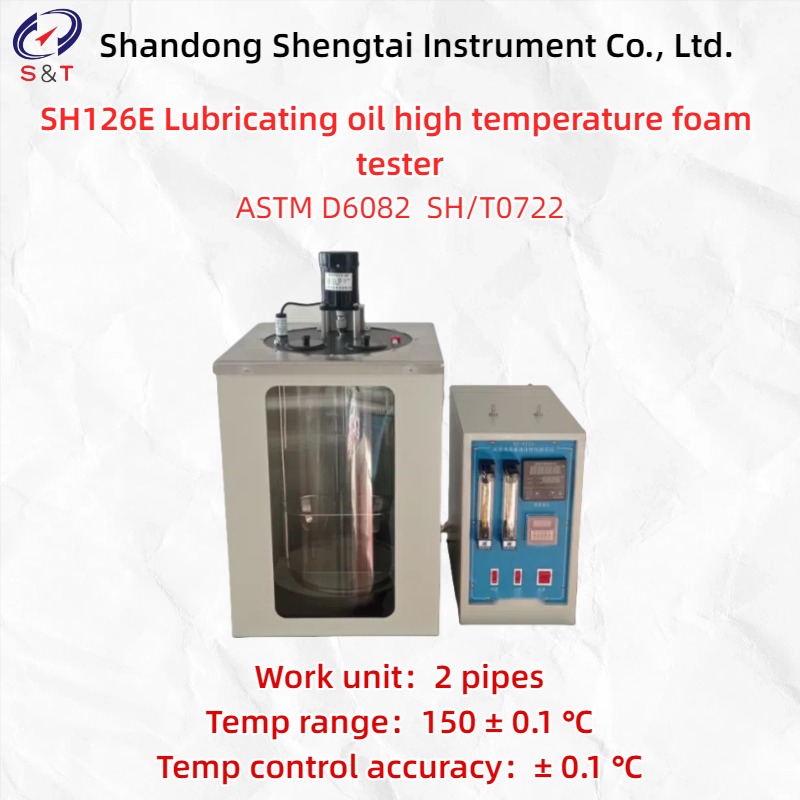

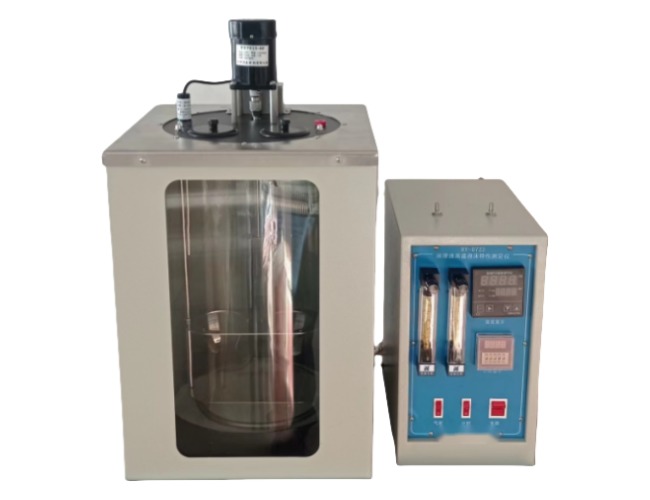

SH126E Lubricating oil high temperature foam tester

Applicable standard of SH126E high temperature foam property tester: ASTM D6082 SH/T0722 High temperature foam property testing method of lubricating oil

The high-temperature foam property tester for lubricating oil is applicable to testing the foam property of lubricating oil at 150 ℃. Heat the sample to 49 ℃, keep the constant temperature for 30min, and cool it to room temperature, then transfer the sample to the specified measuring cylinder, heat it to 150 ℃, supply dry air to the metal diffusion head, ventilate for 5min, and measure the amount of static foam, the amount of moving foam, the amount of static foam, the time for foam to disappear, and the percentage of total volume increase at the moment before stopping the ventilation.

Functional characteristics and technical parameters

● Compliant with standard: ASTM D6082 SH/T0722

● The instrument is integral and includes a heating bath and a precise flow meter.

● High temperature resistant borosilicate glass cylinder, meeting standard requirements;

● Stainless steel heater;

● Air filter with glass wool;

● Microprocessed thermostat and PID control, digital temperature display, accuracy of 0.1 ℃, Pt100 RTD temperature probe;

● Temperature control method: PID digital temperature controller

● Temperature control accuracy: ± 0.1 ℃

● Heating method: oil bath heating

● Overall power: 2.5KW

● Work unit: 2 pipes

● Flow control: precision flowmeter

● Working power supply: AC220V/50Hz

● Temperature range: 150 ± 0.1 ℃

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
