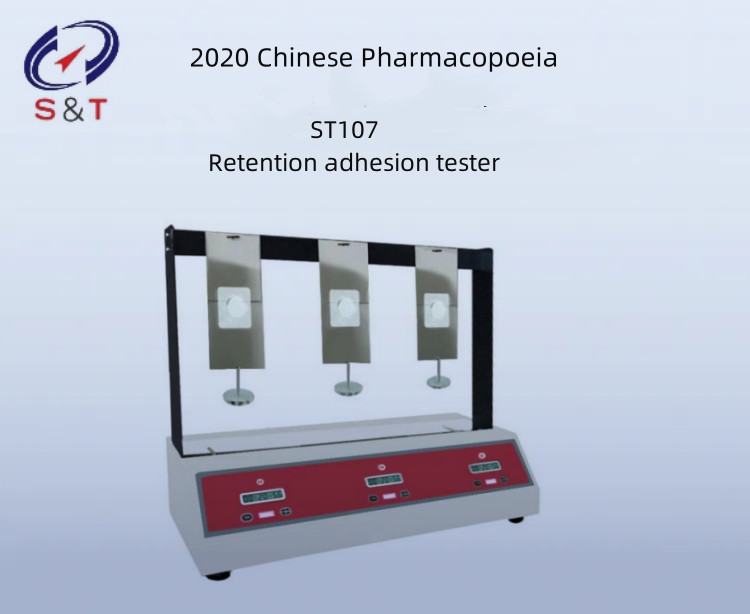

Pharmaceutical Testing Instruments ST107 Ointment Patch Retention Adhesion Tester

   Product overview

ST107 Retention adhesion tester is designed and manufactured strictly in accordance with the requirements of the new 2020 Chinese Pharmacopoeia "0952 Adhesion Force Determination Method", and is suitable for conducting adhesion testing on products such as ointments.

Working principle: Hang the test plate with the sample vertically on the test frame, hang a weight of the specified weight at the lower end, and measure the resistance of the adhesive tape to detachment by the displacement of the sample after a certain period of time or the time required for the sample to completely detach.

Instrument structure: mainly composed of timing mechanism, test plate, loading plate, weight, frame, and standard pressure roller.

Product features:

lUsing high-precision relays to control the timer timing, easy to operate, economical and practical.

lHigh quality proximity switch, wear-resistant and impact resistant, high sensitivity, and longer service life.

lThe timer is equipped with a built-in lithium battery, which provides accurate timing and is practical and convenient.

Technical parameter

lWeight: 200 ± 2g, optional 500g

lTest board: 125 (L) x 125 (B) x 2 (d) mm

lTiming range: 10000h

lSample quantity: 3

lPower supply: 220V 50Hz

lNumber of workstations: 3 pieces

lBoundary dimensions: 600 mm (L) x 240 mm (W) x 400 mm (H)

lPower supply: AC 220V, 50Hz

lNet weight: 20Kg

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
