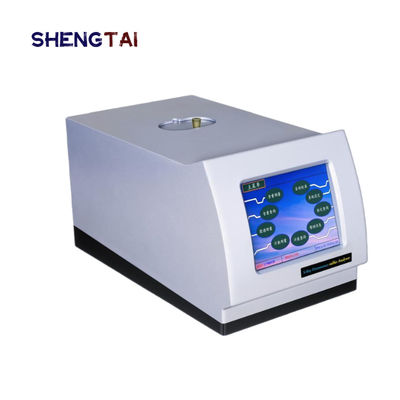

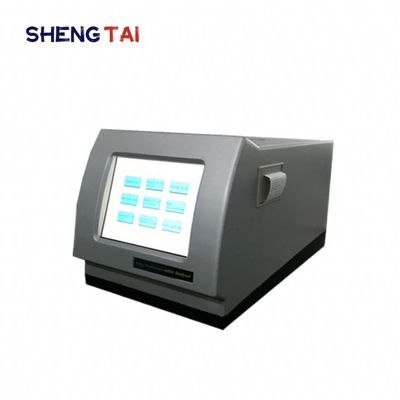

ASTM D2622 Coal Chemical Products X Ray Sulfur Analyzer SH407

  • ASTM D2622 Coal Chemical Products X Ray Sulfur Analyzer SH407
  • ASTM D2622 Coal Chemical Products X Ray Sulfur Analyzer SH407
  • ASTM D2622 Coal Chemical Products X Ray Sulfur Analyzer SH407
Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH407
Minimum Order Quantity 1 Set
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH407 Working Power Supply AC220V ± 20V, 50Hz
Rated Power 30W Sulfur Measurement Range 10ppm ~ 5%
Sample Size (2 ~ 3) ML (equivalent To The Sample Depth Of 3mm ~ 4mm) Measurement Time 60 Seconds, 120 Seconds, 240 Seconds, 300 Seconds, 600 Seconds, Arbitrary Setting.
Calibration (calibration) Samples 12 (10ml/ Piece)
High Light

Coal Chemical X Ray Sulfur Analyzer

,

Petroleum Testing Instruments ASTM D2622

,

30W X Ray Sulfur Analyzer
Leave a Message
Product Description

SH407 X Fluorescence Spectral Sulfur Analyzer adopts the principle of energy dispersion, mechanical and electrical integrated microcomputer design, rapid and accurate analysis. ASTM D4294 XRF X-ray Fluorescence Oil Sulfur Content Analyzer

Its repeatability and reproducibility are in line with the relevant requirements of national standards GB/T 17040-2008 "Determination of Sulfur Content in Petroleum Products (Energy Dispersive X-ray Fluorescence Spectrometry)" and GB/T 11140-1989 "Determination of Sulfur Content in Petroleum Products (X-ray Spectrometry)", and fully meet the requirements of American national standard ASTMD4294-02.

X-ray Fluorescence Sulfur in Oil Analyzer ASTM D4294-02

Sulfur Analyzer--Astmd4294

ASTM D2622 Coal Chemical Products X Ray Sulfur Analyzer SH407 0

X-ray Fluorescence Sulfur Content Apparatus has been the overwhelming choice in the petroleum industry for years. Continuous improvements in performance and usability allow us to offer a better instrument to suit your requirements.Our XRF sulfur analyzers comply with ASTM D4294 Standard Test Method for Sulfur in Petroleum and Petroleum Products by Energy-Dispersive X-ray Fluorescence Spectrometry,while offering the most cost effective alternative for sulfur in petroleum measurement.

SH407 Fluorescence Sulfur Analyzer mainly measures the total sulfur mass percentage content of crude oil, petroleum, heavy oil, diesel oil, kerosene, gasoline, naphtha, but also can measure the total sulfur or sulfur compounds content in coal chemical products (such as primary benzene), other liquid samples;

It can also be used for the determination of total sulfur or SO3 content in fine powder samples.

Electric XRF X-Ray Oil Fluorescence Sulfur Analyzer

I. Main technical features

1. Adopting the fluorescence intensity ratio analysis method, the detection variety is wide, the detection range is wide, the analysis speed is fast, and the consumption of the standard sample is small.

2.the use of mechanical and electrical integrated microcomputer design, liquid crystal display, man-machine interface dialogue, with automatic diagnosis function, to judge the working state of the instrument and electrical parameters, temperature, air pressure automatic correction, carbon hydrogen ratio (C/H) can also be corrected.

3. Use disposable Mylar sample cup to avoid cross contamination.

4. safe X-ray protection measures, after strict testing, no X-ray power radiation damage to individuals and groups.

II. Main technical parameters and indicators

Standard

ASTMD4294-02.
Sulfur measurement range: 10ppm ~ 5%
Sample size (2 ~ 3) mL (equivalent to the sample depth of 3mm ~ 4mm).
Measurement time 60 seconds, 120 seconds, 240 seconds, 300 seconds, 600 seconds, arbitrary setting.
Number of calibration curves the instrument can store 9 calibration curves, 5 of which are one-dimensional linear lines and 4 of which are binomial parabolas.
Calibration (calibration) samples 12 (10ml/ piece).
Sample measurement single sample automatic measurement, measurement times 2, 3, 5, 10 and 50 times can be set arbitrarily, and the average value and standard deviation will be given after measurement.
Precision:

a: repeatability (r): ＜ 0.02894 (X+0.1691);

b: Reproducibility (R): ＜ 0.1215 (X+0.05555).
Working power supply AC220V ± 20V, 50Hz;
Rated power 30W
Instrument package size : 340 * 545 * 345 mm weight 11kg
Standard accessory packaging : 550 * 135 * 335 mm weight: 3kg



























































Packing list

S/N Name Quantity unit
1 X Fluorescent oil sulfur analyzer host 1 set
2 Three-core power cord 1 piece
3 Sample cup 200 piece
4 Sample cup film 2 Set(100 sheets/box)
5 Oil leak-proof parts (two pieces and one set) 1 set
6 Multi-functional press parts (two pieces and one set) 1 set
7 Printer paper 2 piece
8 Calibration (calibration) of standard samples 1 set

ASTM D2622 Coal Chemical Products X Ray Sulfur Analyzer SH407 1
