ASTM D664 Potentiometric Titration Acid Value Tester For Petroleum Products And Lubricants Determination

  • ASTM D664 Potentiometric Titration Acid Value Tester For Petroleum Products And Lubricants Determination
  • ASTM D664 Potentiometric Titration Acid Value Tester For Petroleum Products And Lubricants Determination
Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH108C
Minimum Order Quantity 1 Set
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH108C Standard ASTM D664, ASTM D2896, ASTM D974
Measuring Range ≥0.001 MgKOH/g Potential Measurement Range -2000.0 ~ +2000.0 MV
Burette Volume 10mL Minimum Titration Volume 0.001ml
Burette Accuracy ±0.2%F·S Input Impedance 1 X 1012 Ω Or Greater
High Light

Potentiometric Titration Automatic Acid Value Tester

,

ASTM D664 Acid Value Tester
Leave a Message
Product Description

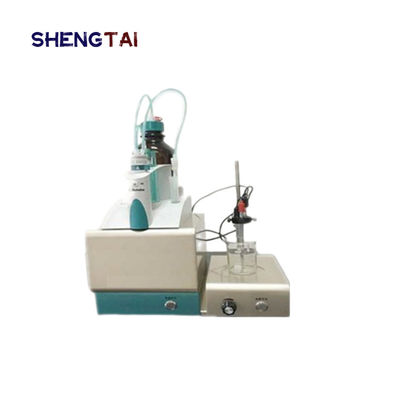

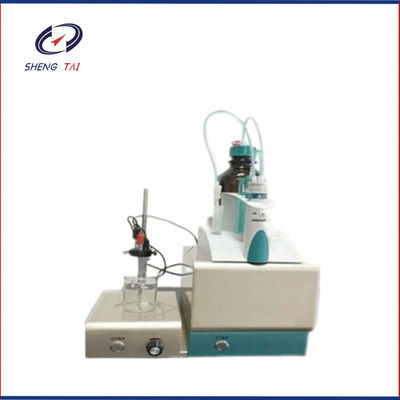

SH108C potentiometric titration automatic acid value meter is designed according to GB/T 7304-2000 petroleum products and lubricant acid value determination method (potentiometric titration method) equivalent ASTMD664 and GB/T 18609 original oil acid value determination (potentiometric titration method) and other standards. The instrument uses potentiometric titration method to determine the end point of titration automatically and automatically calculate the results.

The instrument is suitable for the determination of acid value in crude oil, petroleum products, lubricants and other samples in the petrochemical industry. The determination of acid value is one of the important indicators to determine the quality of oil.

The titration system is made of imported components, which is made of corrosion-resistant materials. The measuring results are accurate and the service life is long.

Product model SH108C
Product Name Potentiometric titration automatic pH meter
Manufacturer Shandong Shengtai Instrument Co., Ltd
Testing items Used in the petrochemical industry to determine the acid value of various samples such as crude oil, petroleum products, lubricants, etc
Compliant with standards GB/T 7304-2000 Petroleum Products and Lubricants Determination of Acid Number (Potentiometric titration) Equivalent ASTMD664, SH/T0251-2004 and other standards set up Petroleum Products and Lubricants Determination of Acid Number and Base Number (Color Indicator Method) and GB/T 18609, SH/T0688 Determination of Crude Oil Acid Number (Potentiometric titration
Simple technical features or parameters Real time display of potential curve (E-V), first derivative curve (dE/dV), electrode potential (E), titration volume (V), and titration results



  • Potentiometric Titration Microcomputer Total Acid Number Tester for Acid Value Measuring Device ASTM D664
  • Automatic Potentiometric Titrator/ Potentiometric Titration Equipment for Content Analysis
  • Automatic Acid Value Meter By Potentiometric Titration
  • Automatic oil tester potentiometric titration method
  • Standard Test Method for Acid Number of Petroleum Products
  • Potentiometric Titration Microcomputer Total Acid Number Tester for Acid Value Measuring Device ASTM D664

Main features:

  • General computer and operating system, special software Chinese window interface, mouse, keyboard operation, man-machine dialogue easy to understand.
  • Real-time display of potential curve (E-V), first derivative curve (DE/DV), electrode potential (E), titration volume (V), titration results
  • Whole process titration data browsing, powerful data processing function, easy to re-process the results;The titration results, data and curves are stored in a large amount. The titration process data can be saved as Excel documents for future inquiry
  • Automatic printing curve, results and titration data
  • Dynamic equivalence titration (DET), equivalence equivalence titration (MET), preset endpoint potential titration (SET)
  • Automatic "end point" judgment, effectively filter out false "end point"
  • Automatic cleaning, automatic fluid filling, automatic fixed value liquid adding

Technical parameters:



Measuring range ≥0.001 mgKOH/g
Potential measurement range -2000.0 ~ +2000.0 mV
Burette volume 10mL
Standard ASTM D664, ASTM D2896, ASTM D974
Minimum titration volume 0.001ml
Burette accuracy ±0.2%F·S
Input impedance 1 x 1012 Ω or greater
Precision in line with or better than the relevant standards
Electronic unit basic error 0.1%F·S± 0.1mV
Size: 350 * 280 * 380mm Weight: 18kg





Packing list

S/N Name Unit Quantity Remarks
1 Host set 1
2 Computer host set 1 Users should bring along their own
3 Key disk set 1 Users should bring along their own
4 Printer set 1 Users should bring along their own
5 Magnetic stirrer set 1
6 Serial communication line piece 1
7 Printer piece 1 Users should bring along their own
8 Short-circuit plug piece 1
9 Fuse (1.5A) piece 2 It's in the mainframe power socket
10 Reference electrode piece 1 Our factory specially
11 Measuring electrode piece 1 Our factory specially
12 Magnetic agitator piece 1
13 power cord piece 1
14 Operating instruction copy 1
15 Packing list copy 1
16 Certificate of approval copy 1

ASTM D664 Potentiometric Titration Acid Value Tester For Petroleum Products And Lubricants Determination 0ASTM D664 Potentiometric Titration Acid Value Tester For Petroleum Products And Lubricants Determination 1

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

ASTM D664 Potentiometric Titration Acid Value Tester For Petroleum Products And Lubricants Determination 2

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
