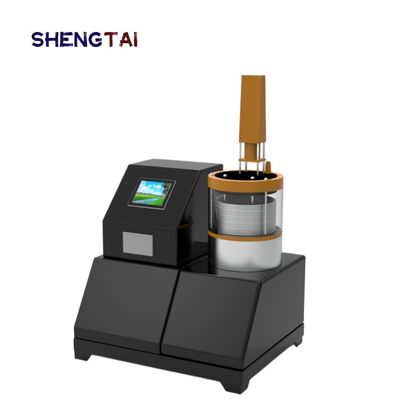

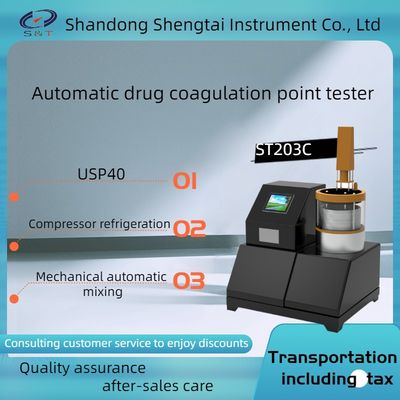

ST203C Automatic Drug Condensation Point Instrument - Condensation Point Compressor Refrigeration of Drug Liquids

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST203C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST203C Power Supply AC220V±10%; 50 Hz
Ambient Temperature ≤30℃ Relative Humidity ≤85%
Power Consumption Of The Whole Machine No More Than 2000W. Temperature Control Accuracy ±0.1℃
Cold Tank Temperature Control -10 ℃ ~ +170℃ Working Cold Bath Double-layer Vacuum Glass Bath.
High Light

Congealing Temperature Tester

,

ST203A Temperature Tester

,

Medicine Congealing Temperature Tester

Leave a Message
Product Description


ST203C automatic congealing temperature tester is designed and manufactured according to the general rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature.

Suitable for determination of the congealing temperature of medicine.

The maximum temperature at which a drug stays unchanged in a short period of time when it condenses from a liquid to a solid is determined.

Some drugs have certain condensation point, purity change, condensation point also changed.

The determination coagulate point may distinguish or examine the pure impurity degree of the medicine.

For example: polyethylene glycol glacial acetic acid phenol stearate magnesium bisphenol A and so on.

Polyethylene glycol congealing temperature tester/Freezing point tester

glacial acetic acid congealing temperature tester/Freezing point tester

Phenol congealing temperature tester/Freezing point tester

Chlorophenol congealing temperature tester/Freezing point tester

stearic acid congealing temperature tester/Freezing point tester

magnesium stearate congealing temperature tester/Freezing point tester



dibutyl hydroxytoluene congealing temperature tester/Freezing point tester

bisphenol A congealing temperature tester/Freezing point tester

Instrument features:

1. Adopt embedded system design, automatic detection and automatic printing in the whole test process

2. The test results can be exported through the U disk;

3. 7-inch color touch screen;The test results can be stored;You can view the historical data;

4. Printing results on the instrument and mechanical automatic mixing.

5. Date password setting function.

Technical parameters

Display 7-inch color touch screen
Output exported through the U disk
Working cold bath double-layer vacuum glass bath.
Standard rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature.
Cold tank temperature control -10 ℃ ~ +170℃
Sample agitation synchronous deceleration motor, 60 times/min.
Power supply AC220V±10%; 50 hz.
Ambient temperature ≤30℃.
Relative humidity ≤85%
Power consumption of the whole machine

no more than 2000W.



Temperature control accuracy ±0.1℃
Bath liquid stirring Automatic stirring by stirring motor, 6W power, 1200r/min.
Refrigeration system new type refrigeration compressor
Typing Chinese or English character printing
Printer Micro needle printer
Curve display Display the trend chart of temperature time curve
Result output At the same time can be equipped with U disk output function, output to the computer end for long-term storage
Data memory The memory of microcomputer instrument can be expanded to 16 gigabytes.
Data management Connect to LIMIS system(optional)
Refrigeration mode compressor refrigeration
Cooling method air cooling
Typing 20 columns Chinese characters dot matrix printing
Display 128×64 Chinese characters display
Data extension Laser printer interface, link to HP1108 laser printer (optional)
Storage mode

Experimental results can be stored in 199 groups of historical data for easy query;



Output format The output format of the usb flash disk is CSV or Excel.
Data protection With date password setting function.
Standard printing Standard printing with automatic measurement and thermal sensitivity of micro printer
Remote upgrade With TCP network transmission function, software remote upgrade can be carried out later
account management audit tracking function and account hierarchical management, level 3 account management (optional).
input extension scan code input sample information (optional)

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Gel stopper 2 piece Conforming to pharmacopoeia
3 Freezing point test tube 2 piece
4 sensor 2 piece
5 power cord 1 piece
6 Printing paper 2 volumes Needle printing paper
7 Certificate warranty card 1 copy
8 instructions 1 copy
