Jet Evaporation Method Existent Gum Tester Petroleum Gb/T 8019-2008 Astm D381 automatic temperature control

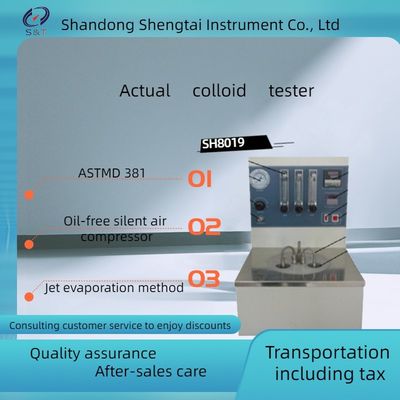

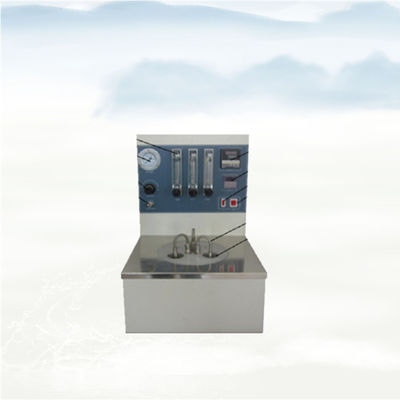

SH8019 Existent Gum Tester Jet Evaporation Method Petroleum Tester is specially used for measuring the actual gum content in aviation gasoline and automotive gasoline.

It is suitable for the actual gum test of aviation gasoline and automobile gasoline according to the method specified in ASTM D381 equivalent to GB/T 8019-2008 "Determination of fuel gum content by jet evaporation method". It is equipped with special oil-free silent air compressor.

Main technical specification and parameters:

Air Jet Evaporation ASTM D381

ASTM D381 Apparatus for Existent Gum Content of Aviation Fuels, and Motor

ASTM D381 Aviation Fuels and Gasoline Existent Gum Tester

Jet Evaporation Method Petroleum Tester ASTM D381 evaporation

Main technical parameters and performance

1, working power supply: AC (220±10%) V, 50Hz, 3500W.

2, evaporation bath type, size: aluminum bath block Φ260 ㎜×130mm (diameter × high).

3. Number of test holes: 3.

4, the test hole size: Φ 51 mm ×70mm (diameter × depth).

5, working temperature: (160~165)℃.

6, temperature control method: automatic temperature control.

7, temperature display: digital display.

8, flow display: by the float type air flow meter display.

9, air pressure reducing valve working pressure: 0.07Mpa.

10, nozzle outlet air flow rate: per hole (1000±150)mL/ s.

11, appearance size: 590㎜×480㎜×340mm (length × width × height, not including the thermometer holder).
