Automatic Oil Particle Counter Oil Industry Classic Methods NAS1638 And ISO4406

Automatic Oil Particle Counter Oil Industry Classic Methods NAS1638 And ISO4406

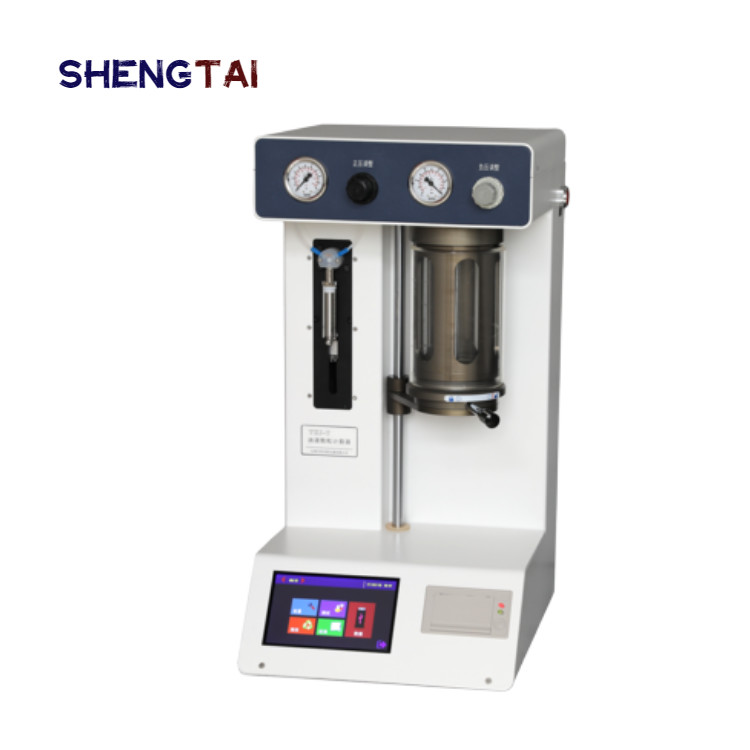

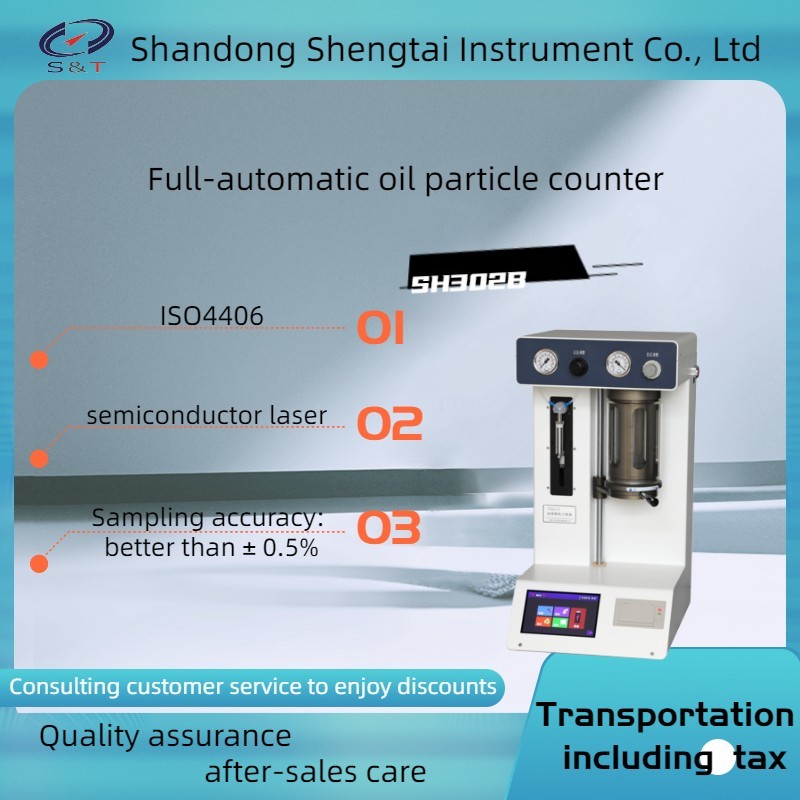

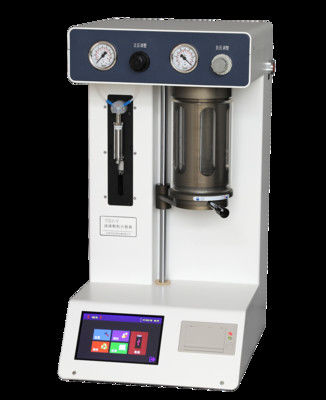

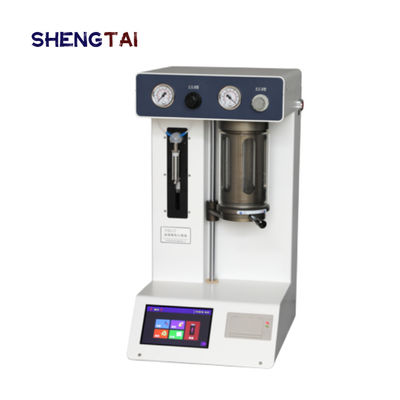

SH302B Automatic oil pollution particle counter

SH302B Automatic oil pollution particle counter is used to detect the size and number of solid particles in liquid, can be widely used in aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields, For hydraulic oil, lubricating oil, rock page oil, transformer oil (insulation oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil and other oil for solid particle pollution degree detection, and for organic liquid, polymer solution for insoluble particles detection.
Automatic oil pollution particle counter adopts "photoresistance method" to measure particles, and adopts the oil industry classic methods NAS1638 and ISO4406, and can be built according to user requirements, users need a variety of standards. Precision syringe sampling system to achieve constant sampling speed and precise control of sampling volume. Positive/negative pressure sampling chamber device, sample degassing and high viscosity sample detection. Large color LCD touch screen, graphical menu display, touch operation, simple and convenient.

Performance characteristics
Adopt the optical resistance (shading) counting principle developed by international Hydraulic Standards Committee
High precision laser sensor, wide test range, stable performance, low noise, high resolution
High pressure injection pump sampling method, sampling volume can be set by oneself, stable sampling speed, high sampling accuracy
The positive and negative pressure injection system can realize sample degassing, which is suitable for test of different viscosity
Built-in pressure sensor, can set the pressure value, and automatically judge the cabin air pressure, to ensure safety
Built-in air purification system to ensure that the test is not polluted
Built-in multiple calibration curves, compatible with all common standards at home and abroad for calibration
Built-in GJB-420B, NAS1638, ISO4406 (GB/T14039), SAE4059E and THE IDEAL OCT17216-71 and other common standards, support custom standard test, and can be set according to customer requirements
Built-in data analysis system, one test can give all standard test data and pollution levels
Can be arbitrarily set particle size, built-in nearly ten thousand particle size, easy to conduct particle size analysis
Various sampling containers such as standard sampling bottle or sampling cup can be used to meet the testing requirements of different industries
Full-function automatic color touch screen operation, support Both Chinese and English interface, easy to operate
Single channel and multi-channel calibration can be carried out to achieve automatic calibration
With RS232 interface, can be connected to computer or laboratory platform for data processing
With massive data storage and printing functions, it can store 1000 groups of data and support USB disk storage

Technical indicators
(3) Light source: semiconductor laser
Diameter range: 0.8um~600um (depending on different sensors)
(3) Detection channel: 16 channels, arbitrary particle size
Resolution: better than 10%
(3) Repeatability: RSD< 2%
(3) viscosity range: maximum 350cSt
(3) Sampling volume: 0.2~ 1000mL
(3) Sampling accuracy: better than ±0.5%
(3) Sampling speed: 5-80mL /min
(3) Maximum vacuum in the pressure chamber: 0.08MPa
(3) Maximum positive pressure of air pressure chamber: 0.8mpa
(3) Maximum particle concentration: 20000 particles /mL
(3) Power supply: 110~245V AC, 50Hz, 70W
(3) Size: 340╳410╳650mm 15kg

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
