Standard GB/T20795-2006 Grease Smoke Point Meter Determination Smoke Point Of Vegetable Oil

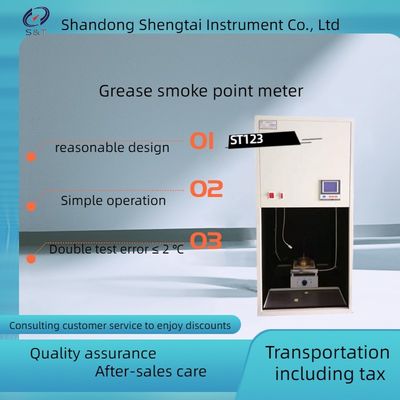

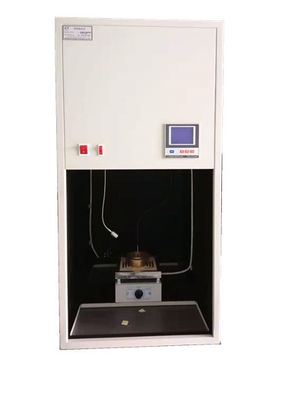

Grease smoke point meter National Standard GB/T20795-2006 "Determination of Smoke Point of Vegetable Oil"

ST123 Grease smoke point instrument is a special instrument developed for measuring the smoke point of vegetable oils according to the national standard GB/T20795-2006 "determination of smoke point of vegetable oils" Article 5 "second method of visual determination".
It is suitable for quality supervision, import and export inspection, oil processing, oil storage and transportation, food processing, scientific research, agricultural breeding, schools and other departments that need to measure the smoke point of vegetable oil.
When the sample is heated to produce smoke, when a small amount of continuous blue smoke (thermal decomposition in grease) is observed, read the temperature indicated by the thermometer, press the heat/lock key, the number displayed on the upper part of the meter head is the smoke point.
The instrument is simple and intuitive in structure and cheap in price.

Technical parameters
1.Dual test error ≤2℃
2. Output mode of results: visual thermometer and digital display
3. Temperature range: room temperature -300℃,,
Working environment: temperature (-10 ~ 40) ℃, relative humidity ≤95%RH
6.Results display mode: visual temperature and digital temperature lock
7, temperature control device built-in curve calibration.
8. The whole casing is upgraded and improved by plastic spraying, which improves the safety performance of the whole test
9, the output display mode using small screen LCD display.
10, the whole machine package inspection, can pass the metrology institute verification.
11, power supply: 220V, 50HZ
12,.Weight: 10 kg
