Needle Penetration Tester Lab Test Instruments PRC Standard GB/T269 Equipped with cold light source

SD-2801A Needle Penetration Tester The PRC Standard GB/T4985, GB/T269 ISO 2137:1985

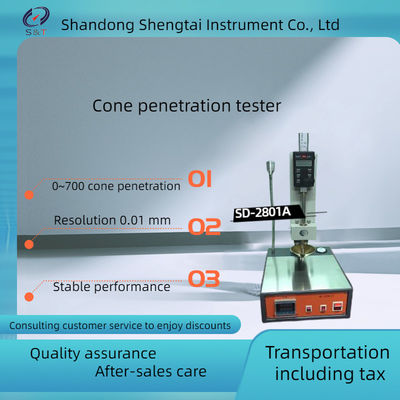

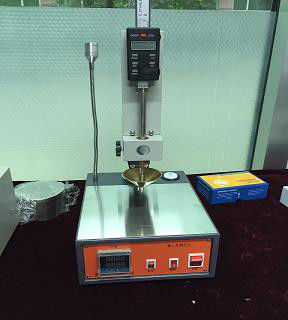

SD-2801A Needle penetration tester

SD-2801A needle penetration tester is designed and manufactured in accordance with the PRC standard GB/T4985, GB/T269 "Determination of The Coning Penetration of Lubricating grease and Petroleum grease" and the technical requirements and relevant regulations of pharmacopeia GB/T4509. It is mainly applicable to the coning penetration testing of lubricating grease (or vaseline).

This instrument can also be used for the inspection of solid fine grain, powder, colloid, jelly and other materials, as well as food raw materials such as cheese, sugar gel, butter, wheat gluten, cream and fermentation, etc. It can be widely used in food industry, traffic highway engineering and other industrial sectors.

Main technical features

1. Digital display is adopted to display the coning degree value, which is intuitive and eye-catching.

2. Digital display of cone-in time control device.

3, with the lifting frame coarse adjustment, fine adjustment function, easy to adjust, accurate needle.

Main technical parameters and indicators

1. Measurement range: 0 ~ 600 coning degree;

2. Coning timing control device: The time can be set arbitrarily according to your own needs, and the time error is less than ±0.1 second;

3, resolution is 0.01mm;

4. Coning accuracy: ±1 degree of coning;

5. Standard cone: 102.5±0.05g, which meets the specification requirements of national standard GB/T269;

6, lifting support: coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to point the sample plane;

7. Others: Equipped with cold light source, easy to use and operate.

8. Standard needle: (2.5±0.05) g,

SD-2801C thermostatic needle penetration tester

These two products are the same. This one has a constant temperature device, which can heat up or cool down.

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
