Air Release Value Oil Testing Equipment Using 32 - Bit Microprocessor

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH0308B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Air Release Value Tester Gas Control Accuracy ± 2 ℃
Water Area Control Accuracy ± 0.2 ℃ Temperature Control Range Room Temperature ~ 99 ℃
Timing Accuracy ± 1s Measurement Range 0 ~ 99min
High Light

pour point tester

,

transformer oil ppm testing kit

Leave a Message
Product Description

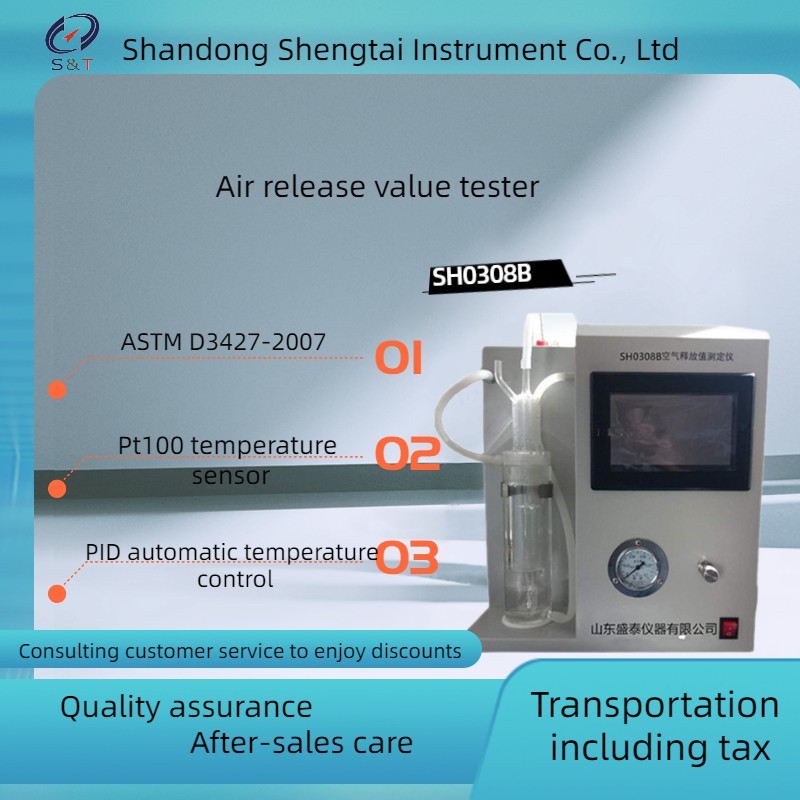

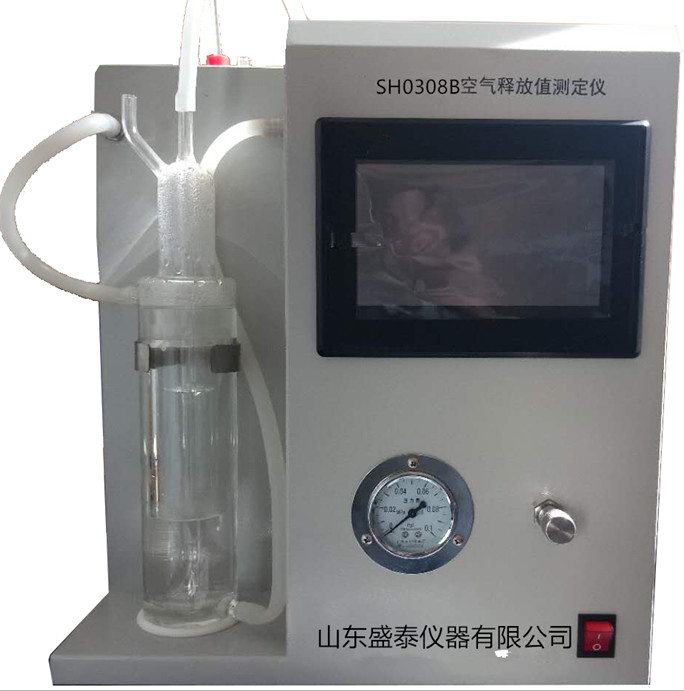

SH0308B air release value tester adopts advanced 32-bit MCU, 7-inch large screen LCD display, has the advantages of stable and reliable, simple operation and easy maintenance.

Applicable to SHT 0308-1992 "Lubricating oil air release value determination method".

Built-in pressure controller, automatic control of air pressure, without manual adjustment.

In accordance with ASTM D3427-2007 lubrication oil air release value determination.

ASTM D3427 Air Release Value Apparatus

ASTM D3427 Petroleum Lubricant Oils Air Release Value Tester

Petroleum Laboratory ASTM D3427 Lubricating Oil Air Release Value Tester

Automatic Lubricating Oil Air Release Value Testing Apparatus ASTM D3427

Lubricant Oil Air Release Value Test Apparatus by ASTM D3427



temperature control range room temperature ~ 99℃
Air control accuracy + 2℃
Water control accuracy ± 0.2 ℃
Pressure adjustment range

0 ~ 0.2Mpa



Power supply voltage

AC220V ± 10% 50Hz±5%



Power rate 800W
Ambient temperature 5℃ ~ 40℃
Instrument size: 420 * 350 * 580mm Weight: 15kg

Main functions and features

1. 4-inch high-resolution color touch screen, resolution 1024×600, human-computer interaction is simple and easy to use.

2. Adopt 32-bit microprocessor as the main control core, a new generation of intelligent operating system.

3. Adopt high precision PT100 temperature sensor, PID automatic temperature control, real-time display of temperature curve.

4. Built-in pressure controller to realize automatic control of water temperature, air temperature and air pressure.

5. High degree of automation, automatic on and off, automatic start time, without manual intervention.

Technical indicators

★ Measuring range: 0 ~ 99min

Timing accuracy: ±1s

★ Temperature control range: room temperature ~ 99℃

★ Water control accuracy: ±0.2℃

Air control accuracy: + 2℃

★ Pressure adjustment range: 0 ~ 0.2Mpa

★ Power source: AC220V±10% 50Hz±5%

★ Power rate: 800W

★ Ambient temperature: 5℃ ~ 40℃

★ Ambient humidity: ≤85



S/N Name Quantity Unit Remarks
1 Host 1 set
2 Jacket test tube 1 set
3 Densitometer 4 piece
4 Air compresor 1 set
5 Snakeskin tube 2 meter
6 Silicone tube 1.5 meter
7 Power cord 1 piece
8 Fuse tube 1 piece 10A
9 Instruction manual 1 copy
10 Packing list 1 copy
11 Certificate 1 copy



OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
